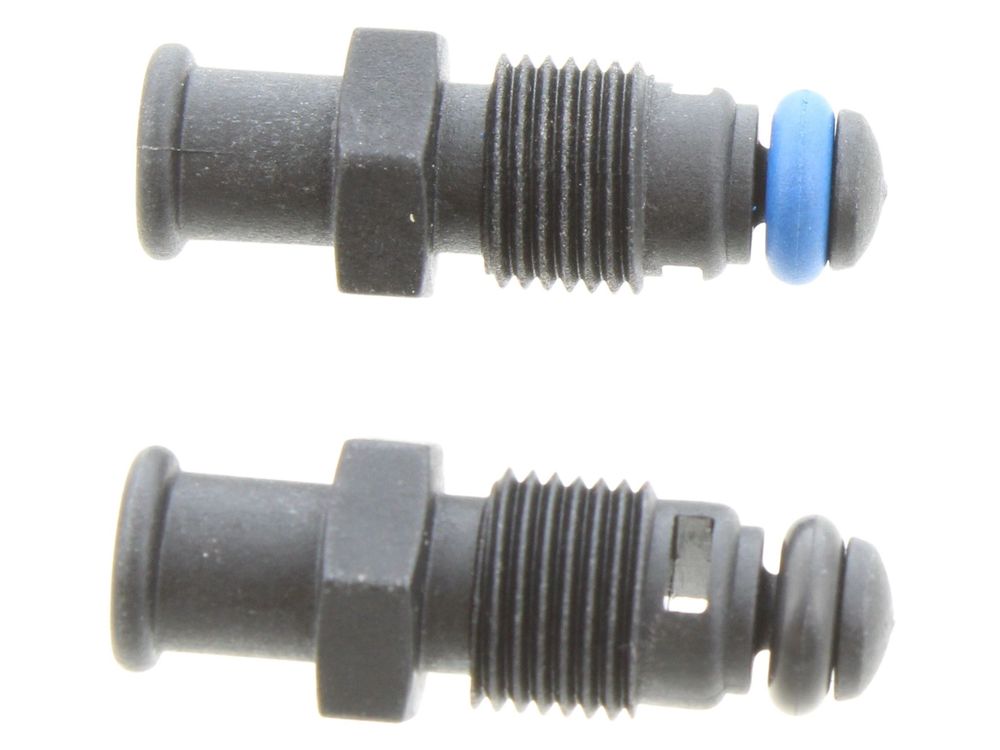

Ideal Drain Valve Heat Exchanger 175980
Ideal 175980 drain valve for the heat exchanger on Logic+ Heat boilers, allowing the exchanger to be drained during servicing or replacement.
At a glance
- Part type: Drain valve
- Also known as 1781650
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£11.62
£9.68 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 175980 is a drain valve that fits to the heat exchanger on Ideal Logic+ Heat appliances. It provides a controlled drain point so the heat exchanger can be emptied of water during servicing, flushing or replacement work. The valve is supplied as an Ideal spare and is listed under the heat exchanger spare part group.
Signs this part needs replacing
- Water weeping or dripping from the drain point on the heat exchanger.
- Damp patches, staining or corrosion around the heat exchanger casing.
- Water collecting inside the appliance casing or beneath the boiler.
- Difficulty draining the heat exchanger during servicing or flushing.
- Scale or debris preventing the valve from sealing fully when closed.
Before you order
- Check the GC number and serial plate on the appliance against the compatibility list before ordering.
- The alternative number 1781650 may be shown on older documentation or parts listings for the same item.
- Check whether a sealing washer or gasket is required at the drain connection and order it separately if needed.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Heat Exchangers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 175980 |
|---|---|
| Barcode / EAN | 5022141759802 |
| Commodity code | 8481 80 99 |
| Alternative numbers | 1781650 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 30 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 30 | — | — | — |
Showing 10 of 61 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC + HEAT 12 (GC 41-409-97), LOGIC + HEAT 15 (GC 41-409-98), LOGIC + HEAT 18 (GC 41-409-99), LOGIC + HEAT 24 (GC 41-750-21), LOGIC + HEAT 30 (GC 41-750-22)
manualmanualIDEAL appliance manual — LOGIC + HEAT H12 (GC 41-750-82), LOGIC + HEAT H15 (GC 41-750-83), LOGIC + HEAT H18 (GC 41-750-84), LOGIC + HEAT H24 (GC 41-750-85), LOGIC + HEAT H30 (GC 41-750-86)
manualmanualIDEAL appliance manual — LOGIC HEAT 12 (GC 41-399-99), LOGIC HEAT 15 (GC 41-409-93), LOGIC HEAT 18 (GC 41-409-94), LOGIC HEAT 24 (GC 41-409-95), LOGIC HEAT 30 (GC 41-409-96)
manualmanualIDEAL appliance manual — LOGIC HEAT 2 H12 (GC 41-860-10), LOGIC HEAT 2 H15 (GC 41-860-11), LOGIC HEAT 2 H18 (GC 41-860-12), LOGIC HEAT 2 H24 (GC 41-860-13), LOGIC HEAT 2 H30 (GC 41-860-14)
manualmanualIDEAL appliance manual — LOGIC HEAT H12 (GC 41-750-77), LOGIC HEAT H15 (GC 41-750-78), LOGIC HEAT H18 (GC 41-750-79), LOGIC HEAT H24 (GC 41-750-80), LOGIC HEAT H30 (GC 41-750-81)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT 2 H12 (GC 41-860-25), LOGIC MAX HEAT 2 H15 (GC 41-860-26), LOGIC MAX HEAT 2 H18 (GC 41-860-27), LOGIC MAX HEAT 2 H24 (GC 41-860-28), LOGIC MAX HEAT 2 H30 (GC 41-860-29)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT H12 (GC 41-796-17), LOGIC MAX HEAT H15 (GC 41-796-18), LOGIC MAX HEAT H18 (GC 41-796-19), LOGIC MAX HEAT H24 (GC 41-796-20), LOGIC MAX HEAT H30 (GC 41-796-21)
manualNo technical questions yet for this part.
