Ideal

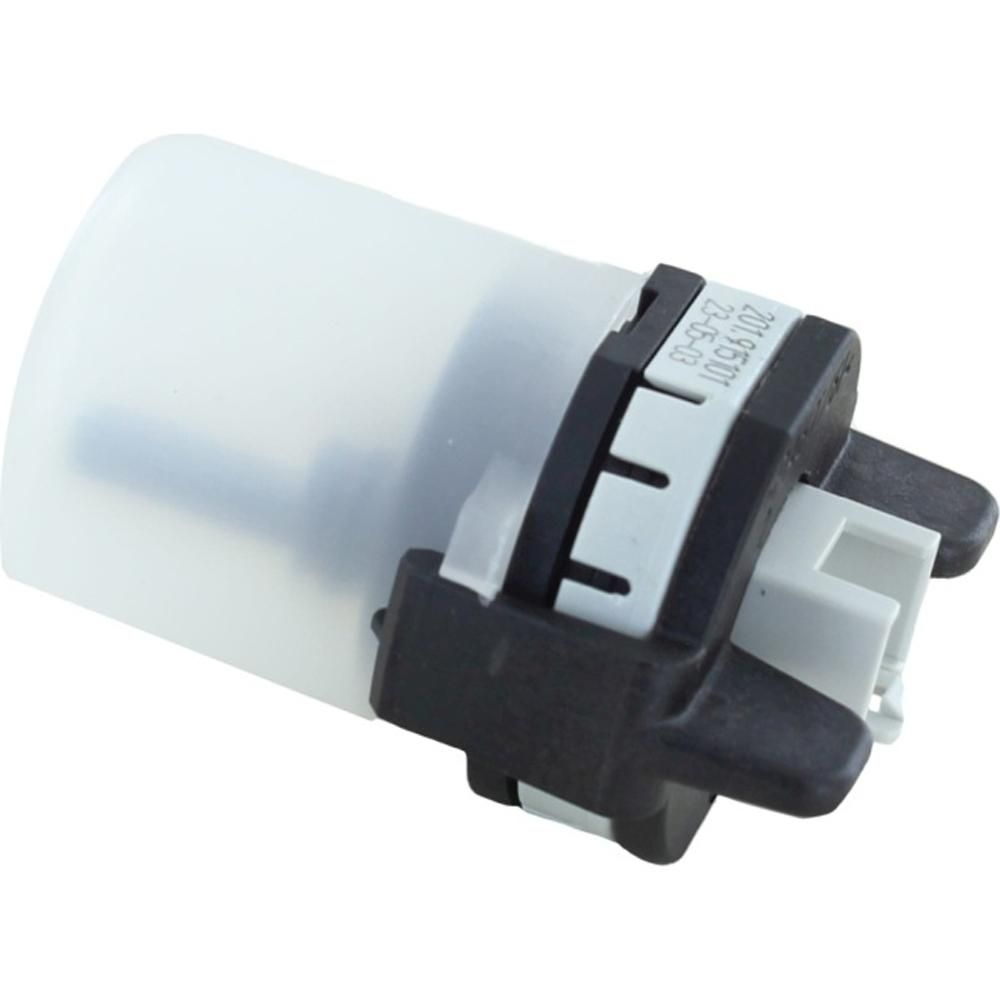

Ideal Flow Sensor Kit System 175979
Ideal Flow Sensor Kit, part 175979, for Logic and Logic+ Heat boilers. Alternative number 1781648. Check your GC number before ordering.
At a glance
- Part type: Flow sensor kit
- Also known as 1781648
£69.96
£58.30 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal Flow Sensor Kit is a replacement sensor assembly for Ideal gas boilers, listed under part number 175979. It sits within the appliance's water circuit and provides the control board with a flow signal, allowing the boiler to regulate heating and hot water demand accurately. The kit is supplied under the Ideal Spares brand and is classed within the thermostats, thermistors and sensors group of spare parts.
Signs this part needs replacing
- The boiler does not fire on a hot water demand while the heating circuit still runs normally
- Hot water temperature is intermittent or fluctuates noticeably at the tap
- The appliance locks out or displays a fault code linked to flow or temperature sensing
- The boiler cycles or shuts down shortly after ignition
- No response from the boiler when a hot water outlet is opened
Before you order
- Check the GC number on the appliance data badge against the compatibility list below before ordering, as several Logic and Logic+ variants use different sensor arrangements.
- Cross-reference the alternative part number 1781648 if you are working from older service documentation or an existing part label.
Mechanical
| Part type | Thermostats, Thermistors & Sensors |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 175979 |
|---|---|
| Barcode / EAN | 5022141759796 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Heating System Controls |
| Alternative numbers | 1781648 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 30 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 30 | — | — | — |
Showing 10 of 69 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC + HEAT 12 (GC 41-409-97), LOGIC + HEAT 15 (GC 41-409-98), LOGIC + HEAT 18 (GC 41-409-99), LOGIC + HEAT 24 (GC 41-750-21), LOGIC + HEAT 30 (GC 41-750-22)
manualmanualIDEAL appliance manual — LOGIC + HEAT H12 (GC 41-750-82), LOGIC + HEAT H15 (GC 41-750-83), LOGIC + HEAT H18 (GC 41-750-84), LOGIC + HEAT H24 (GC 41-750-85), LOGIC + HEAT H30 (GC 41-750-86)
manualmanualIDEAL appliance manual — LOGIC HEAT 12 (GC 41-399-99), LOGIC HEAT 15 (GC 41-409-93), LOGIC HEAT 18 (GC 41-409-94), LOGIC HEAT 24 (GC 41-409-95), LOGIC HEAT 30 (GC 41-409-96)
manualmanualIDEAL appliance manual — LOGIC HEAT 2 H12 (GC 41-860-10), LOGIC HEAT 2 H15 (GC 41-860-11), LOGIC HEAT 2 H18 (GC 41-860-12), LOGIC HEAT 2 H24 (GC 41-860-13), LOGIC HEAT 2 H30 (GC 41-860-14)
manualmanualIDEAL appliance manual — LOGIC HEAT H12 (GC 41-750-77), LOGIC HEAT H15 (GC 41-750-78), LOGIC HEAT H18 (GC 41-750-79), LOGIC HEAT H24 (GC 41-750-80), LOGIC HEAT H30 (GC 41-750-81)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT 2 H12 (GC 41-860-25), LOGIC MAX HEAT 2 H15 (GC 41-860-26), LOGIC MAX HEAT 2 H18 (GC 41-860-27), LOGIC MAX HEAT 2 H24 (GC 41-860-28), LOGIC MAX HEAT 2 H30 (GC 41-860-29)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT H12 (GC 41-796-17), LOGIC MAX HEAT H15 (GC 41-796-18), LOGIC MAX HEAT H18 (GC 41-796-19), LOGIC MAX HEAT H24 (GC 41-796-20), LOGIC MAX HEAT H30 (GC 41-796-21)
manualmanualIDEAL appliance manual — LOGIC SYSTEM 15IE (GC 41-750-44), LOGIC SYSTEM 18IE (GC 41-750-45), LOGIC SYSTEM 24IE (GC 41-750-46), LOGIC SYSTEM 30IE (GC 41-750-47)
manualNo technical questions yet for this part.
