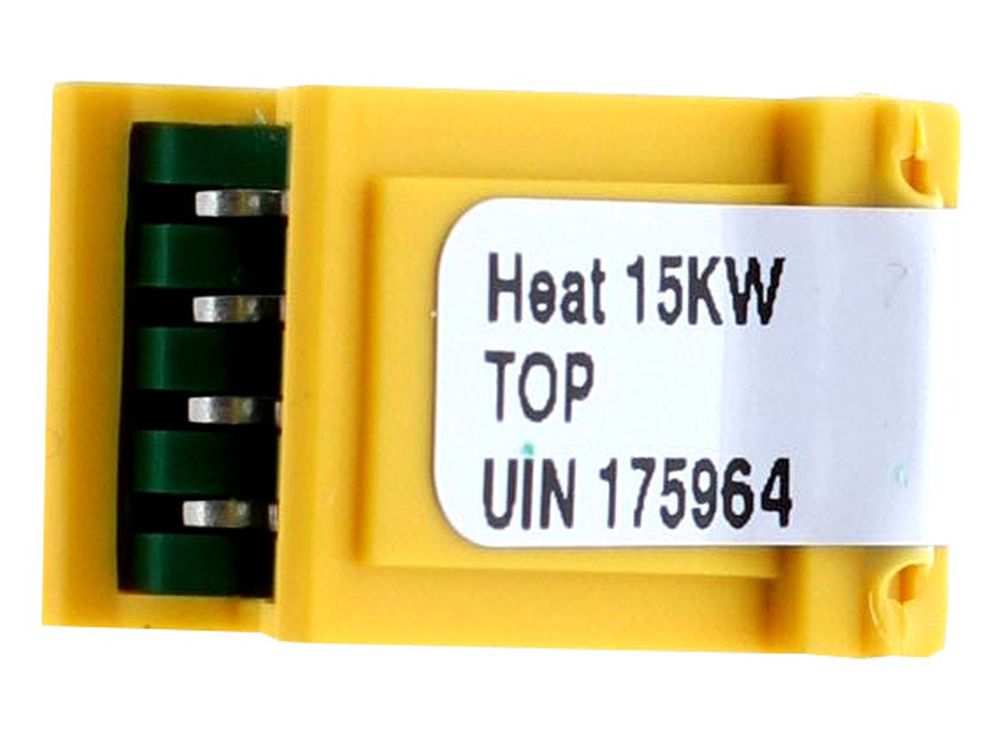

Ideal 175956 Boiler Chip Card Kit
Ideal 175956 BCC card PCB kit for Logic and Logic+ Heat 15 appliances, supplied as a service replacement control board.
At a glance
- Part type: Printed circuit boards (PCB)
- Also known as 502214175956, IDEAL175956, 256191040201, 1781624
£60.00
£50.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 175956 is a BCC card kit supplied for the Logic and Logic+ Heat 15 appliance range. It is a printed circuit board assembly that carries the control electronics for the appliance, handling the sequencing and monitoring duties that keep operation stable. Ideal Spares lists it as a service replacement board for the Logic/Logic+ Heat 15 platform.
Signs this part needs replacing
- The appliance fails to fire or will not complete its start sequence
- Blank or unresponsive display on the control panel
- Repeated lockouts or fault codes that clear only briefly before returning
- Erratic fan, pump or ignition behaviour traced back to the control board
- Visible heat damage, corrosion or water ingress on the board itself
Before you order
- Check the appliance model and GC number against the part listing
- Confirm the part number on the existing board matches IDEAL175956 before removal
- Isolate the electrical supply and note the wiring connections before disconnecting the board
- Allow the board to be fitted by a competent engineer familiar with the Logic/Logic+ Heat 15 platform
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | IDEAL175956 |
|---|---|
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 502214175956, IDEAL175956, 256191040201, 1781624 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 15IE | — | — | — | |
| IDEAL LOGIC + HEAT 15 | 41-409-98 | 41-409-98 | — | — |
| IDEAL LOGIC HEAT 15 | 41-409-93 | 41-409-93 | — | — |
| IDEAL LOGIC SYSTEM 15IE | 41-750-44 | 41-750-44 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
