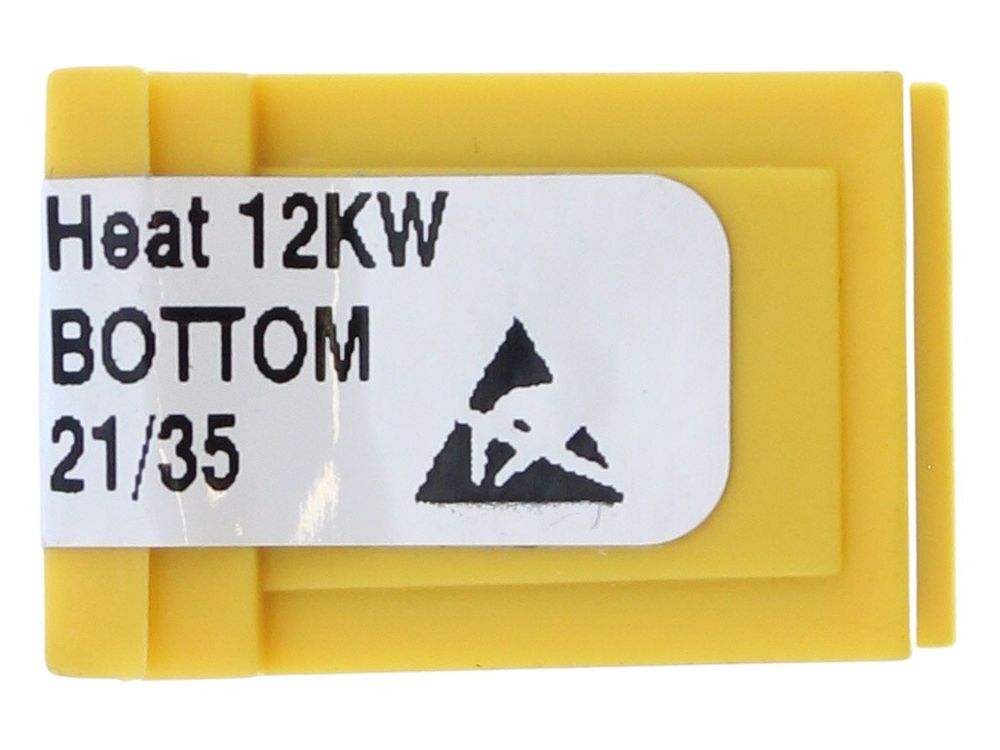

Ideal Printed Circuit Board BCC Card Logic 175955
Ideal 175955 BCC card PCB for Logic and Logic+ Heat 12 boilers, controlling boiler logic and heat operation. Alternative number 1781622.
At a glance
- Part type: Printed circuit board (PCB)
- Also known as 1781622
£34.54
£28.78 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 175955 is a BCC card printed circuit board supplied as a kit for Ideal Logic and Logic+ Heat 12 appliances. It sits within the boiler's control assembly and carries out the logic and heat management function, handling the signals that keep the unit running to its designed sequence. As a board-level spare it is the component to replace when the control side of the appliance stops behaving correctly.
Signs this part needs replacing
- The boiler fails to fire or does not respond when a demand is called.
- The display is blank, flickering or showing inconsistent information.
- Fault codes appear repeatedly and cannot be cleared by a reset.
- The appliance runs erratically, cycling or locking out without an obvious mechanical cause.
- Controls and temperature settings have no effect on boiler behaviour.
Before you order
- Confirm the appliance model and GC number against the compatibility list, as the board is specific to the Logic and Logic+ Heat 12 range.
- Note the alternative number 1781622 when cross-referencing an existing board or an older order record.
- Check whether any seals or gaskets disturbed during access need replacing at the same time.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 175955 |
|---|---|
| GC number | 41-399-99 |
| Barcode / EAN | 5022141759550 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781622 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 12 | — | — | — | |
| IDEAL LOGIC + HEAT 12 | 41-409-97 | 41-409-97 | — | — |
| IDEAL LOGIC HEAT 12 | 41-399-99 | 41-399-99 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
