Ideal 175935 Logic Primary PCB Kit
At a glance
- Part type: Primary printed circuit board kit
- Appliance family: Logic, Independent, i-mini
- Also known as IDEAL175935
Showing prices
£168.00
£140.00 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

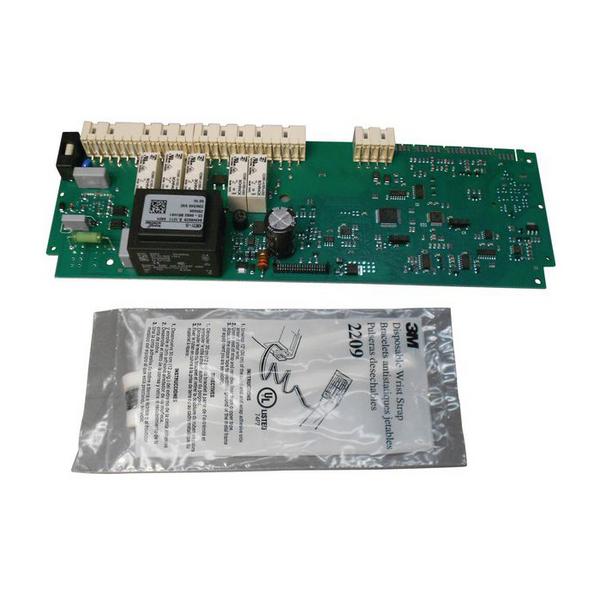

The Ideal 175935 is a primary printed circuit board kit for the Ideal Logic, Independent and i-mini boiler families. It is the main control board, handling sensor inputs, ignition sequencing, fan and pump control, and the boiler's safety lockout logic. The board is supplied as a kit rather than a bare PCB.
Signs this part needs replacing
- The boiler fails to fire, or locks out repeatedly with no fault found in the ignition components
- A blank, dim or erratic display on the boiler fascia
- The fan, pump or gas valve is not being driven even though each component tests correctly
- Intermittent lockouts or error codes that clear on reset and then return
- Visible scorching, burn marks or swollen capacitors on the existing board
Before you order
- Check the boiler's model and GC number on the appliance data badge against the compatibility information for this part
- Compare the part number and any printed revision on the board currently fitted before ordering a replacement
- Boiler parameters may need to be set after fitting a new primary PCB; follow the manufacturer's commissioning instructions
Mechanical
| Part type | Primary printed circuit board kit |
|---|---|
| Appliance family | Logic, Independent, i-mini |
Compliance
| Manufacturer part number (MPN) | 175935 |
|---|---|
| Commodity code | 8537 10 98 99 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5022141759352, IDEAL175935, IDEAL175935, IDEAL175935, 251928429698, 43375749, WOL-N0393-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL INDEPENDENT C24 | 47-348-68 | 47-348-68 | — | — |
| IDEAL INDEPENDENT C30 | 47-348-69 | 47-348-69 | — | — |
| IDEAL INDEPENDENT C35 | 47-348-70 | 47-348-70 | — | — |
| IDEAL INDEPENDENT PLUS C24 | 47-348-85 | 47-348-85 | — | — |
| IDEAL INDEPENDENT PLUS C30 | 47-348-86 | 47-348-86 | — | — |
| IDEAL INDEPENDENT PLUS C35 | 47-348-87 | 47-348-87 | — | — |
| IDEAL INDEPENDENT SYSTEM 15 | 41-750-48 | 41-750-48 | — | — |
| IDEAL INDEPENDENT SYSTEM 18 | 41-750-49 | 41-750-49 | — | — |
| IDEAL INDEPENDENT SYSTEM 24 | 41-750-50 | 41-750-50 | — | — |
| IDEAL INDEPENDENT SYSTEM 30 | 41-750-51 | 41-750-51 | — | — |
Showing 10 of 59 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — INDEPENDENT C24 (GC 47-348-68), INDEPENDENT C30 (GC 47-348-69), INDEPENDENT C35 (GC 47-348-70)
manualmanualIDEAL appliance manual — INDEPENDENT PLUS C24 (GC 47-348-85), INDEPENDENT PLUS C30 (GC 47-348-86), INDEPENDENT PLUS C35 (GC 47-348-87)
manualmanualIDEAL appliance manual — LOGIC + HEAT 12 (GC 41-409-97), LOGIC + HEAT 15 (GC 41-409-98), LOGIC + HEAT 18 (GC 41-409-99), LOGIC + HEAT 24 (GC 41-750-21), LOGIC + HEAT 30 (GC 41-750-22)
manualmanualIDEAL appliance manual — LOGIC + SYSTEM 15 (GC 47-750-29), LOGIC + SYSTEM 18 (GC 47-750-30), LOGIC + SYSTEM 24 (GC 47-750-31), LOGIC + SYSTEM 30 (GC 47-750-32)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI 26 (GC 47-348-74), LOGIC CODE COMBI 33 (GC 47-348-75), LOGIC CODE COMBI 36 (GC 47-348-76)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI ES26 (GC 47-349-04), LOGIC CODE COMBI ES33 (GC 47-349-05), LOGIC CODE COMBI ES38 (GC 47-349-06)
manualmanualIDEAL appliance manual — LOGIC COMBI 24 (GC 47-348-56), LOGIC COMBI 30 (GC 47-348-57), LOGIC COMBI 35 (GC 47-348-58)
manualmanualIDEAL appliance manual — LOGIC COMBI E 24 (GC 47-348-88), LOGIC COMBI E 30 (GC 47-348-89), LOGIC COMBI E 35 (GC 47-348-90)
manualmanualIDEAL appliance manual — LOGIC COMBI ES 24 (GC 47-349-01), LOGIC COMBI ES 30 (GC 47-349-02), LOGIC COMBI ES 35 (GC 47-349-03)
manualmanualIDEAL appliance manual — LOGIC HEAT 12 (GC 41-399-99), LOGIC HEAT 15 (GC 41-409-93), LOGIC HEAT 18 (GC 41-409-94), LOGIC HEAT 24 (GC 41-409-95), LOGIC HEAT 30 (GC 41-409-96)
manualmanualIDEAL appliance manual — LOGIC SYSTEM 15 (GC 41-750-24), LOGIC SYSTEM 15IE (GC 41-750-44), LOGIC SYSTEM 18 (GC 41-750-25), LOGIC SYSTEM 18IE (GC 41-750-45), LOGIC SYSTEM 24 (GC 41-750-26), LOGIC SYSTEM 24IE (GC 41-750-46), LOGIC SYSTEM 30 (GC 41-750-27), LOGIC SYSTEM 30IE (GC 41-750-47)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA COMBI 30 (GC 47-002-01), ZANUSSI ULTRA COMBI 35 (GC 47-002-02)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA SYSTEM 15 (GC 41-002-01), ZANUSSI ULTRA SYSTEM 18 (GC 41-002-02), ZANUSSI ULTRA SYSTEM 24 (GC 41-002-03), ZANUSSI ULTRA SYSTEM 30 (GC 41-002-04)
manualmanualIDEAL appliance manual — i MINI 24 (GC 47-348-77), i MINI 30 (GC 47-348-78)
manualmanualKESTON appliance manual — SYSTEM 30 BOILER (GC 41-930-39)
