Ideal Wall Template 175931
Ideal wall template spare bracket for Independent C24, C30, C35 and Commercial models, part 175931, alternative 1781596.
At a glance
- Part type: Brackets & Clamps
- Also known as 1781596
£10.96
£9.13 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

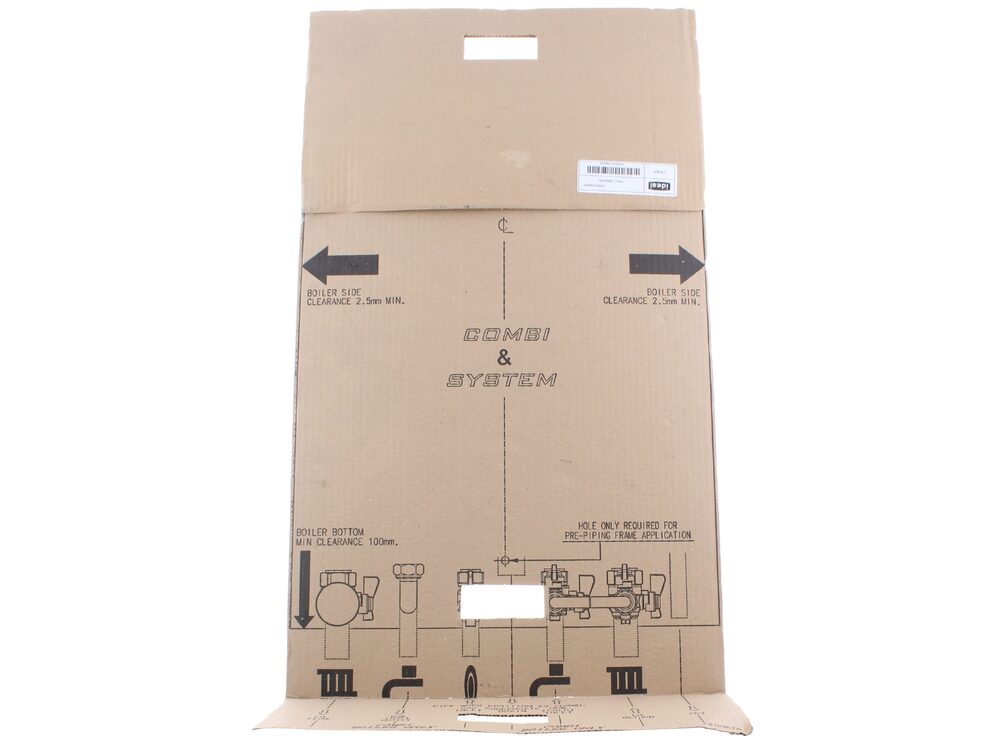

The Ideal 175931 is a wall template spare, classified as a bracket or clamp within Ideal's spare parts range. It is designed for use with Ideal Independent and Ideal Commercial appliances. This component assists in the correct positioning and mounting of the appliance on the wall during installation or maintenance. The wall template is typically used to mark fixing positions and ensure the appliance is level and correctly aligned with pipework and flue connections.
Signs this part needs replacing
- The appliance no longer sits securely or squarely on the wall.
- Visible cracks, bending, or deformation in the bracket or template.
- Corrosion or rust on the bracket surface.
- Difficulty aligning the appliance during installation or servicing.
- The original template is missing or damaged, making installation difficult.
Before you order
- Check your appliance's GC number and model against the compatibility list to confirm fitment.
- Confirm the alternative part number 1781596 is suitable for your appliance.
Mechanical
| Part type | Brackets & Clamps |
|---|
Compliance
| Manufacturer part number (MPN) | 175931 |
|---|---|
| Barcode / EAN | 5022141759314 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781596 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : INDEPENDENT C24 | — | — | — | |
| IDEAL IDEAL : INDEPENDENT C30 | — | — | — | |
| IDEAL IDEAL : INDEPENDENT C35 | — | — | — | |
| IDEAL INDEPENDENT C24 | 47-348-68 | 47-348-68 | — | — |
| IDEAL INDEPENDENT C30 | 47-348-69 | 47-348-69 | — | — |
| IDEAL INDEPENDENT C35 | 47-348-70 | 47-348-70 | — | — |
| IDEAL INDEPENDENT PLUS C24 | 47-348-85 | 47-348-85 | — | — |
| IDEAL INDEPENDENT PLUS C30 | 47-348-86 | 47-348-86 | — | — |
| IDEAL INDEPENDENT PLUS C35 | 47-348-87 | 47-348-87 | — | — |
| IDEAL i MINI 24 | 47-348-77 | 47-348-77 | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — INDEPENDENT C24 (GC 47-348-68), INDEPENDENT C30 (GC 47-348-69), INDEPENDENT C35 (GC 47-348-70)
manualmanualIDEAL appliance manual — INDEPENDENT PLUS C24 (GC 47-348-85), INDEPENDENT PLUS C30 (GC 47-348-86), INDEPENDENT PLUS C35 (GC 47-348-87)
manualmanualIDEAL appliance manual — i MINI 24 (GC 47-348-77), i MINI 30 (GC 47-348-78)
