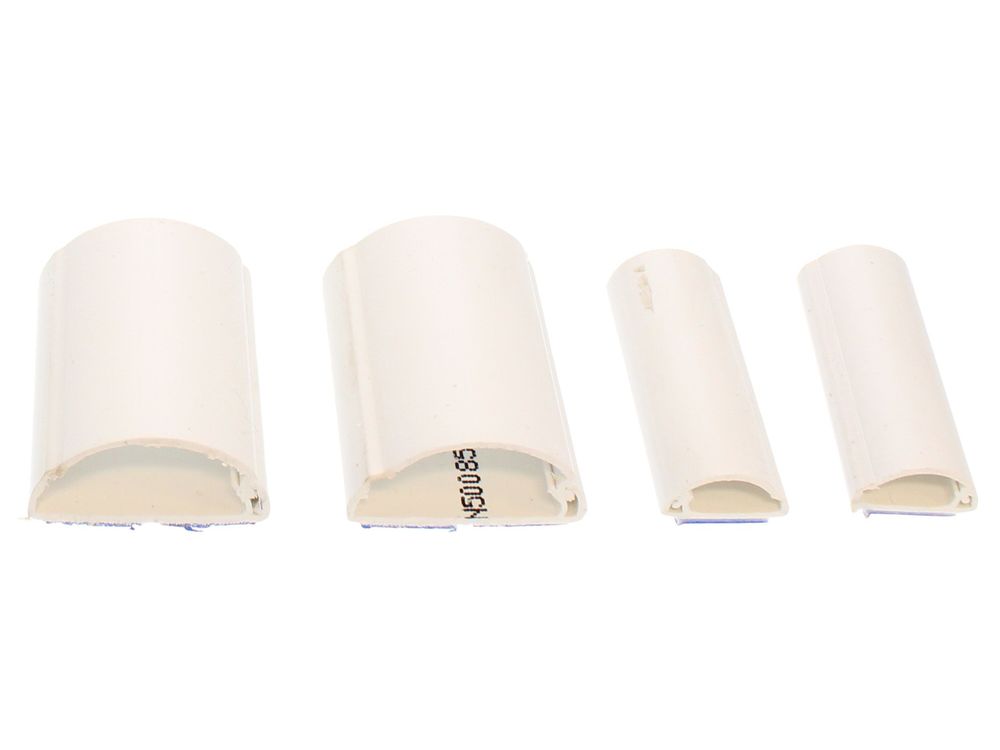

Ideal Harness Trunking 175910
Wiring harness trunking for Ideal Independent and commercial boilers, part 175910 (alternative reference 1781576).
At a glance
- Part type: Wiring (harness trunking)
- Also known as 1781576
£20.96
£17.47 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 175910 is a harness trunking spare for Ideal boilers. It forms the protective routing channel that carries and shields the wiring harness inside the appliance, holding the loom clear of hot surfaces and moving components. The part sits within Ideal's wiring spares range and is used across the Independent domestic models and Ideal Commercial appliances. It is not a gas-carrying component.
Signs this part needs replacing
- Trunking cracked, brittle or distorted by heat
- Wiring loom left exposed where the trunking has broken away
- Harness chafing against the casing, fan or heat exchanger
- Intermittent electrical faults or lockouts traced back to the loom
- Connectors no longer held securely in their routing position
Before you order
- Confirm the boiler model and GC number from the appliance data badge before ordering.
- Match the component being replaced against part number 175910; the alternative reference 1781576 may appear on older documentation.
- Any work inside the boiler casing, including harness routing and reconnection, should be carried out by a competent engineer.
Mechanical
| Part type | Wiring |
|---|
Compliance
| Manufacturer part number (MPN) | 175910 |
|---|---|
| Barcode / EAN | 5022141759109 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781576 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : INDEPENDENT C24 | — | — | — | |
| IDEAL IDEAL : INDEPENDENT C30 | — | — | — | |
| IDEAL IDEAL : INDEPENDENT C35 | — | — | — | |
| IDEAL INDEPENDENT C24 | 47-348-68 | 47-348-68 | — | — |
| IDEAL INDEPENDENT C30 | 47-348-69 | 47-348-69 | — | — |
| IDEAL INDEPENDENT C35 | 47-348-70 | 47-348-70 | — | — |
| IDEAL INDEPENDENT PLUS C24 | 47-348-85 | 47-348-85 | — | — |
| IDEAL INDEPENDENT PLUS C30 | 47-348-86 | 47-348-86 | — | — |
| IDEAL INDEPENDENT PLUS C35 | 47-348-87 | 47-348-87 | — | — |
| IDEAL i MINI 24 | 47-348-77 | 47-348-77 | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — INDEPENDENT C24 (GC 47-348-68), INDEPENDENT C30 (GC 47-348-69), INDEPENDENT C35 (GC 47-348-70)
manualmanualIDEAL appliance manual — INDEPENDENT PLUS C24 (GC 47-348-85), INDEPENDENT PLUS C30 (GC 47-348-86), INDEPENDENT PLUS C35 (GC 47-348-87)
manualmanualIDEAL appliance manual — i MINI 24 (GC 47-348-77), i MINI 30 (GC 47-348-78)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
