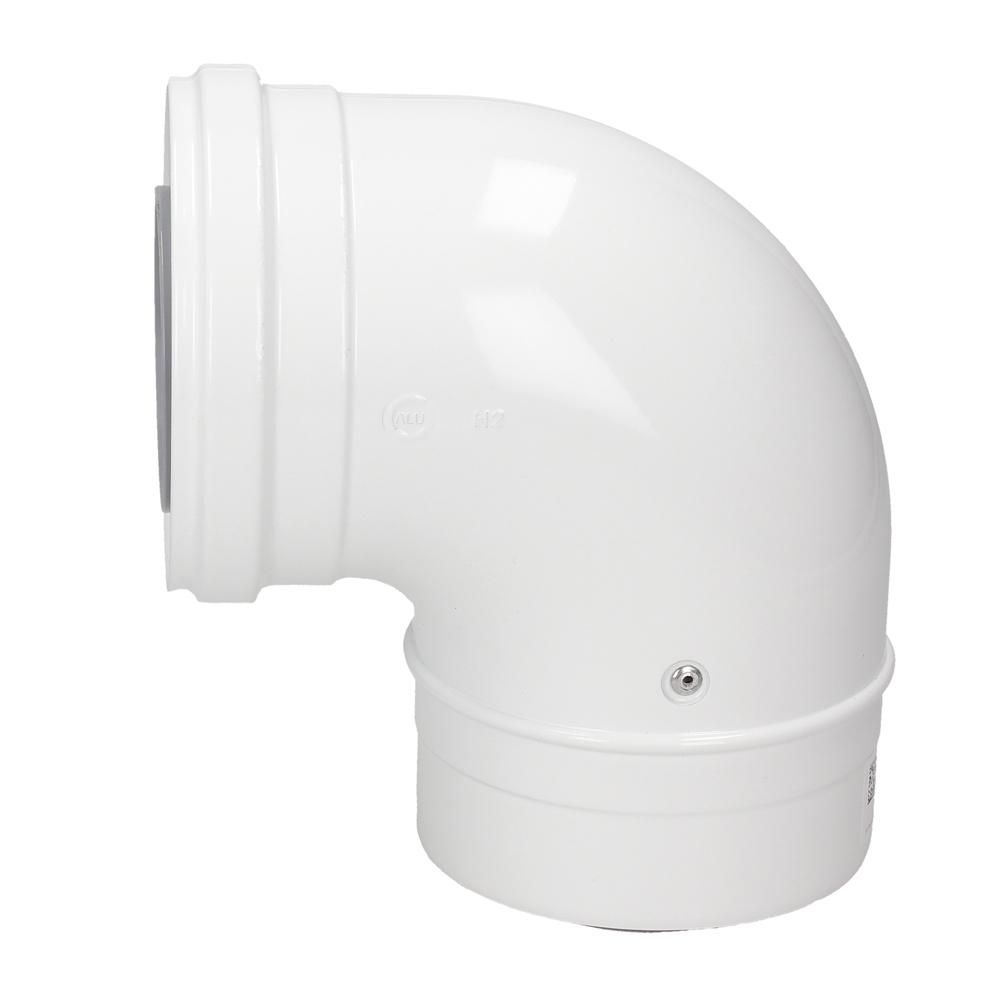

Ideal Flue Elbow 90 Degree 80mm 175747
90-degree 80mm flue elbow for Ideal twin pipe flue systems, compatible with ELISE HE and ESPRIT 2 boilers.
At a glance
- Part type: Flue assembly
- Also known as 1781472
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£40.32
£33.60 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 175747 is a 90-degree flue elbow with an 80mm diameter, intended for twin pipe flue systems. It changes the direction of the flue run by a right angle between the boiler and the terminal, forming part of the flue assembly on compatible Ideal gas appliances. It is listed as a flue assembly component and is used across several Ideal boiler ranges.
Signs this part needs replacing
- Visible corrosion, cracking or distortion at the elbow body
- Condensate weeping or staining around the elbow joint
- Flue gas smell or combustion readings drifting outside tolerance near the elbow
- Boiler lockout or flue-related fault codes
- Loose, perished or deteriorated seals at the elbow connection
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct flue component.
- Confirm the boiler is on a twin pipe flue system, as this elbow is intended for twin pipe installations only.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Flue Assembly |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 175747 |
|---|---|
| Barcode / EAN | 5022141757471 |
| Commodity code | 3917 40 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781472 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ELISE HE15 | 41-399-97 | 41-399-97 | — | — |
| IDEAL ELISE HE24 | 41-399-98 | 41-399-98 | — | — |
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL EVO HE H12 | 41-397-96 | 41-397-96 | — | — |
| IDEAL EVO HE H16 | 41-397-86 | 41-397-86 | — | — |
Showing 10 of 28 compatible appliances.
