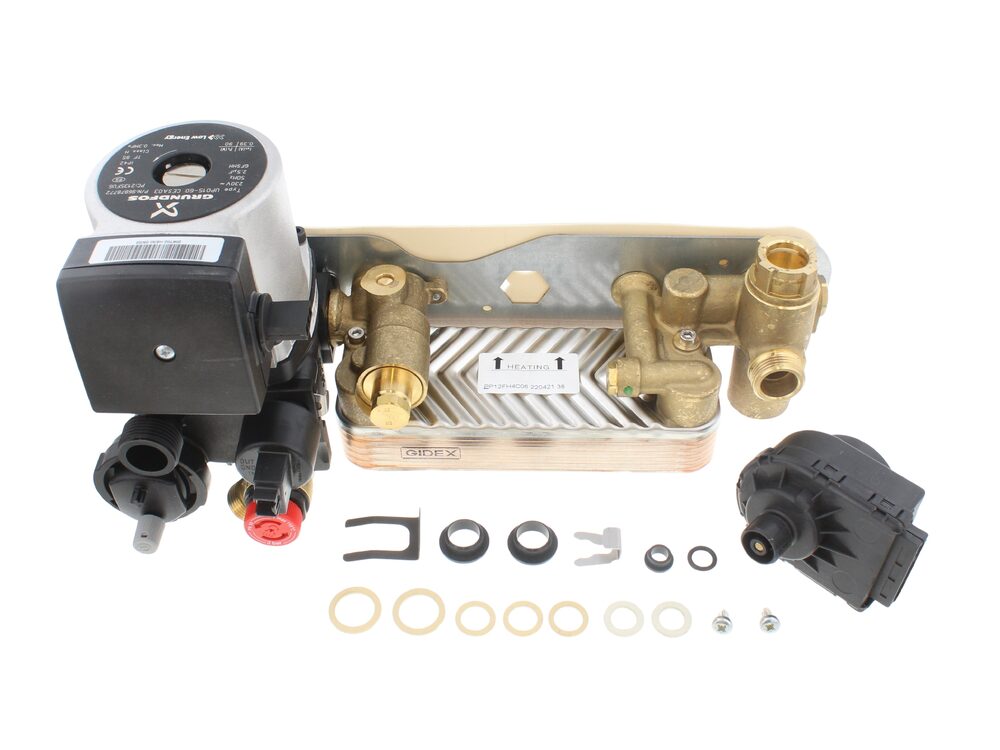

Ideal Hydroblock Complete Kit Brass Waterset 175642
Ideal 175642 Hydroblock Complete Kit with brass waterset, a pre-prefix ABK assembly for Ideal Logic Combi and Independent combi boilers.
At a glance
- Part type: Diverter valves and hydraulics
- Also known as 1780998
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£1,162.57
£968.81 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 175642 is a complete hydroblock kit supplied with a brass waterset, built for the Ideal Logic Combi and Independent combi boiler families. The hydroblock is the hydraulic centre of the appliance: it carries the diverter valve, DHW and heating circuit connections, and the pressure-sensing points that let the boiler switch between hot water and central heating. This version is the pre-prefix ABK pattern, which matters when matching an existing installation.
Signs this part needs replacing
- Domestic hot water runs cold or only lukewarm while the heating circuit works normally.
- Radiators stay cold when there is a demand for heating, or the boiler will not switch between DHW and CH.
- Water weeping or staining around the hydroblock body, brass waterset or its connections.
- Pressure loss on the system gauge with no visible leak elsewhere on the pipework.
- Fault codes or lockouts linked to the diverter valve or hydraulic section.
Before you order
- Check the GC number and appliance serial plate against the compatibility list before ordering, as the pre-prefix ABK pattern is not interchangeable with every Logic Combi build.
- Note the alternative number 1780998 when cross-referencing an existing hydroblock.
- Inspect the seals and gaskets on the existing assembly and replace any that are perished or flattened while the hydroblock is off the appliance.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Diverter valves and hydraulics |
|---|
Compliance
| Manufacturer part number (MPN) | 175642 |
|---|---|
| Barcode / EAN | 5022141756429 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1780998 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : INDEPENDENT C30 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI 30 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI E 30 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ES 30 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ESP 30 | — | — | — | |
| IDEAL INDEPENDENT C30 | 47-348-69 | 47-348-69 | — | — |
| IDEAL INDEPENDENT PLUS C30 | 47-348-86 | 47-348-86 | — | — |
| IDEAL LOGIC COMBI 30 | 47-348-57 | 47-348-57 | — | — |
| IDEAL LOGIC COMBI E 30 | 47-348-89 | 47-348-89 | — | — |
| IDEAL LOGIC COMBI ES 30 | 47-349-02 | 47-349-02 | — | — |
Showing 10 of 14 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — INDEPENDENT C30 (GC 47-348-69)
manualmanualIDEAL appliance manual — INDEPENDENT PLUS C30 (GC 47-348-86)
manualmanualIDEAL appliance manual — LOGIC COMBI 30 (GC 47-348-57)
manualmanualIDEAL appliance manual — LOGIC COMBI E 30 (GC 47-348-89)
manualmanualIDEAL appliance manual — LOGIC COMBI ES 30 (GC 47-349-02)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA COMBI 30 (GC 47-002-01)
manualmanualIDEAL appliance manual — i MINI 30 (GC 47-348-78)
manualNo technical questions yet for this part.
