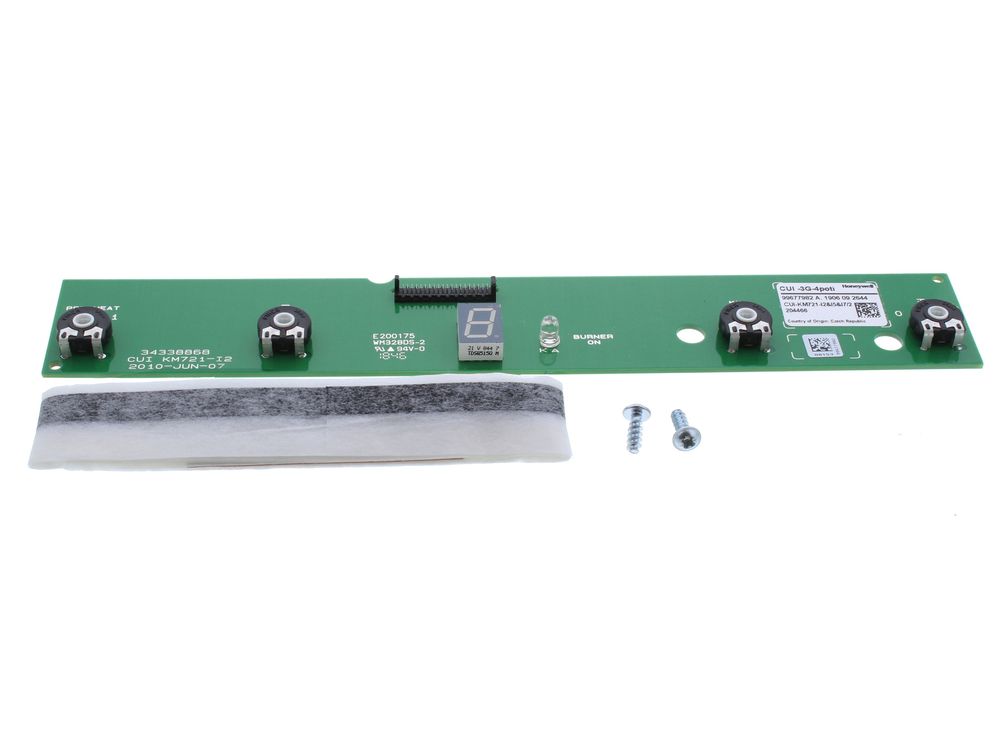

Ideal 175588 Cui Board Kit
Ideal 175588 CUI Board Kit, a printed circuit board spare from Ideal Spares for Ideal heating appliances.
At a glance
- Part type: Printed Circuit Boards (PCB)
- Also known as 5022141755880, IDEAL175588, 254638748529, 43375713, 1780952 +1 more
£114.53
£95.44 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 175588 CUI Board Kit is a printed circuit board assembly supplied by Ideal as a spare for its heating appliances. The board carries the control and user interface electronics, linking the appliance's controls and display to the rest of the control system. Fitting a replacement board restores normal operation when the original has failed.
Signs this part needs replacing
- The appliance display is blank or shows no response when the controls are pressed.
- Fault or error codes appear repeatedly and clear only temporarily after a reset.
- The appliance fails to respond to demand from the room thermostat or programmer.
- Controls behave erratically, with buttons or settings not registering.
- The appliance locks out intermittently with no other obvious mechanical or gas-side cause.
Before you order
- Check the appliance model and GC number against the manufacturer's documentation to confirm this board is the correct one.
- Confirm the part number 175588 matches the board currently fitted, as control boards can differ between appliance variants.
- Isolate the electrical supply to the appliance before removing or fitting any circuit board.
- If a gasket or seal is disturbed during access to the board, check whether a replacement is needed before reassembly.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 175588 |
|---|---|
| Commodity code | 8537 10 90 90 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5022141755880, IDEAL175588, 254638748529, 43375713, 1780952, N9324-1_C30 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : INDEPENDENT C24 | — | — | — | |
| IDEAL IDEAL : INDEPENDENT C30 | — | — | — | |
| IDEAL IDEAL : INDEPENDENT C35 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI 26 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI 33 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI 36 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI ES26 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI ES33 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI ES38 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI 24 | — | — | — |
Showing 10 of 50 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — INDEPENDENT C24 (GC 47-348-68), INDEPENDENT C30 (GC 47-348-69), INDEPENDENT C35 (GC 47-348-70)
manualmanualIDEAL appliance manual — INDEPENDENT PLUS C24 (GC 47-348-85), INDEPENDENT PLUS C30 (GC 47-348-86), INDEPENDENT PLUS C35 (GC 47-348-87)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI 26 (GC 47-348-74), LOGIC CODE COMBI 33 (GC 47-348-75), LOGIC CODE COMBI 36 (GC 47-348-76)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI ES26 (GC 47-349-04), LOGIC CODE COMBI ES33 (GC 47-349-05), LOGIC CODE COMBI ES38 (GC 47-349-06)
manualmanualIDEAL appliance manual — LOGIC COMBI 24 (GC 47-348-56), LOGIC COMBI 30 (GC 47-348-57), LOGIC COMBI 35 (GC 47-348-58)
manualmanualIDEAL appliance manual — LOGIC COMBI E 24 (GC 47-348-88), LOGIC COMBI E 30 (GC 47-348-89), LOGIC COMBI E 35 (GC 47-348-90)
manualmanualIDEAL appliance manual — LOGIC COMBI ES 24 (GC 47-349-01), LOGIC COMBI ES 30 (GC 47-349-02), LOGIC COMBI ES 35 (GC 47-349-03)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA COMBI 30 (GC 47-002-01), ZANUSSI ULTRA COMBI 35 (GC 47-002-02)
manualmanualIDEAL appliance manual — i MINI 24 (GC 47-348-77), i MINI 30 (GC 47-348-78)
manualNo technical questions yet for this part.
