Ideal

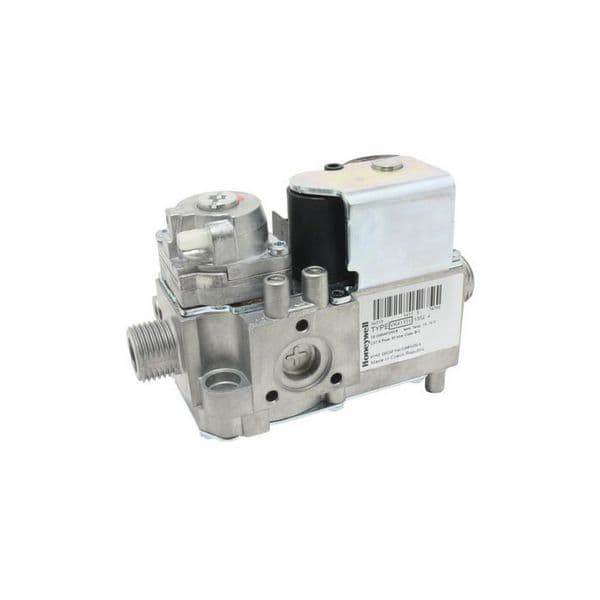

Ideal 175562 Gas Valve Kit
Ideal 175562 gas valve kit for Logic, Independent C and Logic+ domestic boilers, regulating gas flow to the burner.
At a glance
- Appliance family: Logic, Independent C, Logic+
- Also known as IDEAL175562
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£204.00
£170.00 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 175562 is a gas valve kit produced by Ideal for its Logic, Independent C and Logic+ family of domestic gas boilers. The valve controls the supply of gas to the burner, opening on a call for heat or hot water and modulating the gas rate to match the load demanded by the boiler. Because it sits in the gas train, it is a serviceable component that is replaced rather than repaired when it fails.
Signs this part needs replacing
- The boiler fails to light, or locks out repeatedly with an ignition or flame-detection fault
- The burner flame drops out shortly after ignition and the boiler returns to lockout
- The gas rate cannot be set or held at the correct figure during commissioning
- Heating or hot water becomes intermittent, with the boiler cycling on and off
- Visible corrosion, debris or damage around the valve body or its connections
Before you order
- Confirm the boiler model and GC number against the compatibility list, as this valve was used across several Logic variants
- Check the part number on the existing valve or the boiler data badge before ordering
- Have the boiler installation and servicing manual to hand for the gas rate and operating pressure settings
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gas Valve Kit |
|---|---|
| Appliance family | Logic, Independent C, Logic+ |
Compliance
| Manufacturer part number (MPN) | 175562 |
|---|---|
| Barcode / EAN | 5022141755620 |
| Commodity code | 8481 80 99 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 7625867295395, IDEAL175562, IDEAL175562, IDEAL175562, 264775571593, N0681 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI 24 | 47-349-07 | 47-349-07 | — | — |
| IDEAL CLASSIC COMBI 30 | 47-349-08 | 47-349-08 | — | — |
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL ESPRIT ECO 24 | 47-348-91 | 47-348-91 | — | — |
| IDEAL ESPRIT ECO 30 | 47-348-92 | 47-348-92 | — | — |
| IDEAL ESPRIT HE24 | 47-348-46 | 47-348-46 | — | — |
| IDEAL ESPRIT HE30 | 47-348-47 | 47-348-47 | — | — |
| IDEAL ESPRIT HE35 | 47-348-48 | 47-348-48 | — | — |
Showing 10 of 100 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — CLASSIC COMBI 24 (GC 47-349-07), CLASSIC COMBI 30 (GC 47-349-08)
manualmanualIDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — ESPRIT ECO 24 (GC 47-348-91), ESPRIT ECO 30 (GC 47-348-92)
manualmanualIDEAL appliance manual — ESPRIT HE24 (GC 47-348-46), ESPRIT HE30 (GC 47-348-47), ESPRIT HE35 (GC 47-348-48)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — EXCLUSIVE 24 COMBI (GC 47-349-41), EXCLUSIVE 30 COMBI (GC 47-349-42), EXCLUSIVE 35 COMBI (GC 47-349-43)
manualmanualIDEAL appliance manual — INDEPENDENT C24 (GC 47-348-68), INDEPENDENT C30 (GC 47-348-69), INDEPENDENT C35 (GC 47-348-70)
manualmanualIDEAL appliance manual — INDEPENDENT PLUS C24 (GC 47-348-85), INDEPENDENT PLUS C30 (GC 47-348-86), INDEPENDENT PLUS C35 (GC 47-348-87)
manualmanualIDEAL appliance manual — INSTINCT 24 (GC 47-349-09), INSTINCT 30 (GC 47-349-10), INSTINCT 35 (GC 47-349-11)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — LOGIC + COMBI 24 (GC 47-348-65), LOGIC + COMBI 30 (GC 47-348-66), LOGIC + COMBI 35 (GC 47-348-67)
manualmanualIDEAL appliance manual — LOGIC + HEAT 12 (GC 41-409-97), LOGIC + HEAT 15 (GC 41-409-98), LOGIC + HEAT 18 (GC 41-409-99), LOGIC + HEAT 24 (GC 41-750-21), LOGIC + HEAT 30 (GC 41-750-22)
manualmanualIDEAL appliance manual — LOGIC + SYSTEM 15 (GC 47-750-29), LOGIC + SYSTEM 18 (GC 47-750-30), LOGIC + SYSTEM 24 (GC 47-750-31), LOGIC + SYSTEM 30 (GC 47-750-32)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI 26 (GC 47-348-74), LOGIC CODE COMBI 33 (GC 47-348-75), LOGIC CODE COMBI 36 (GC 47-348-76)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI ES26 (GC 47-349-04), LOGIC CODE COMBI ES33 (GC 47-349-05), LOGIC CODE COMBI ES38 (GC 47-349-06)
manualmanualIDEAL appliance manual — LOGIC COMBI 24 (GC 47-348-56), LOGIC COMBI 30 (GC 47-348-57), LOGIC COMBI 35 (GC 47-348-58)
manualmanualIDEAL appliance manual — LOGIC COMBI E 24 (GC 47-348-88), LOGIC COMBI E 30 (GC 47-348-89), LOGIC COMBI E 35 (GC 47-348-90)
manualmanualIDEAL appliance manual — LOGIC COMBI ES 24 (GC 47-349-01), LOGIC COMBI ES 30 (GC 47-349-02), LOGIC COMBI ES 35 (GC 47-349-03)
manualmanualIDEAL appliance manual — LOGIC HEAT 12 (GC 41-399-99), LOGIC HEAT 15 (GC 41-409-93), LOGIC HEAT 18 (GC 41-409-94), LOGIC HEAT 24 (GC 41-409-95), LOGIC HEAT 30 (GC 41-409-96)
manualmanualIDEAL appliance manual — LOGIC SYSTEM 15 (GC 41-750-24), LOGIC SYSTEM 15IE (GC 41-750-44), LOGIC SYSTEM 18 (GC 41-750-25), LOGIC SYSTEM 18IE (GC 41-750-45), LOGIC SYSTEM 24 (GC 41-750-26), LOGIC SYSTEM 24IE (GC 41-750-46), LOGIC SYSTEM 30 (GC 41-750-27), LOGIC SYSTEM 30IE (GC 41-750-47)
manualmanualIDEAL appliance manual — PROCOMBI EXCLUSIVE 24 (GC 47-348-79), PROCOMBI EXCLUSIVE 30 (GC 47-348-80), PROCOMBI EXCLUSIVE 35 (GC 47-348-81)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA COMBI 30 (GC 47-002-01), ZANUSSI ULTRA COMBI 35 (GC 47-002-02)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA SYSTEM 15 (GC 41-002-01), ZANUSSI ULTRA SYSTEM 18 (GC 41-002-02), ZANUSSI ULTRA SYSTEM 24 (GC 41-002-03), ZANUSSI ULTRA SYSTEM 30 (GC 41-002-04)
manualmanualIDEAL appliance manual — i MINI 24 (GC 47-348-77), i MINI 30 (GC 47-348-78)
manualmanualIDEAL appliance manual — iCOMBI 24 (GC 47-348-82), iCOMBI 30 (GC 47-348-83), iCOMBI 35 (GC 47-348-84)
manualmanualKESTON appliance manual — 30C COMBINATION BOILER (GC 47-930-03)
manualmanualKESTON appliance manual — COMBI 30 BOILER (GC 47-930-04), COMBI 35 BOILER (GC 47-930-05)
manualmanualKESTON appliance manual — SYSTEM 30 BOILER (GC 41-930-39)
manualNo technical questions yet for this part.
