Ideal Wiring Harness 175423

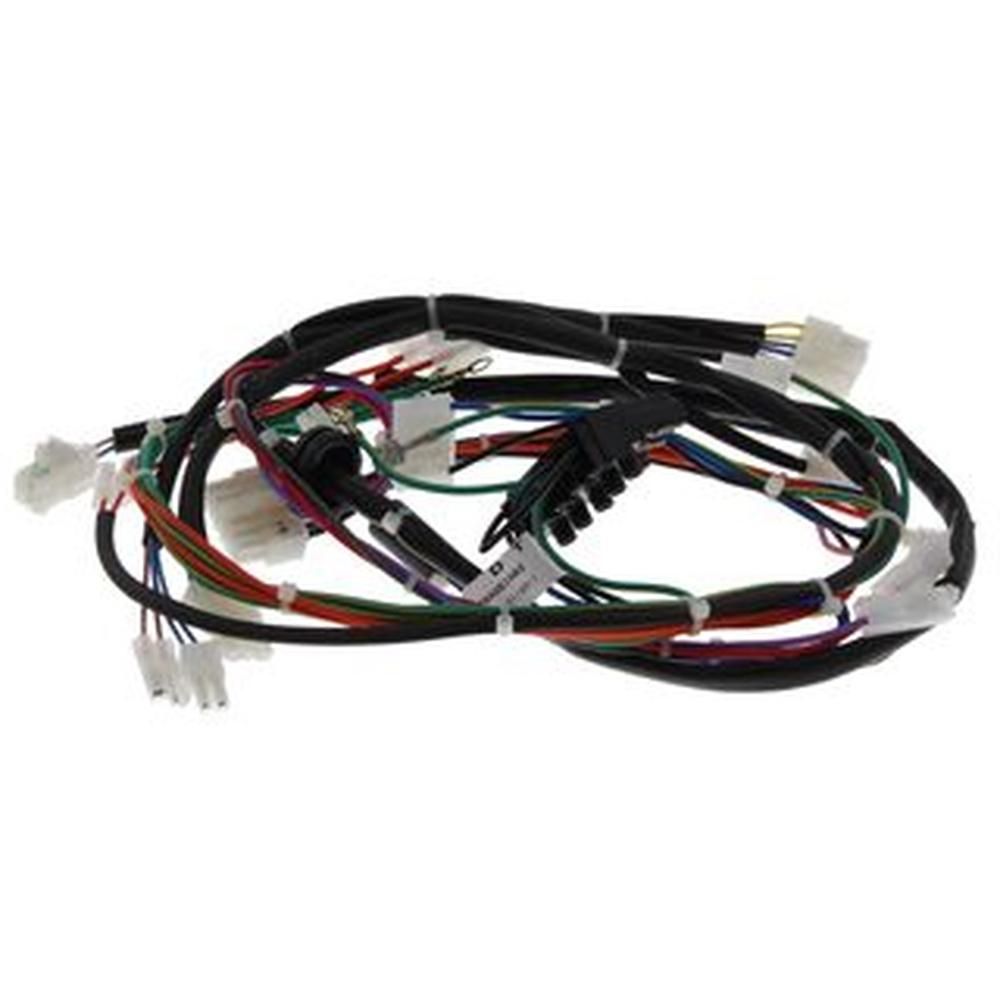

Ideal 175423 boiler wiring harness for Esprit 2 and Evo HE models, linking the PCB to fans, sensors and valves. Alternative number 1780895.
At a glance
- Part type: Wiring harness (cables, leads and wiring harnesses)
- Also known as 1780895
£49.21
£41.01 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 175423 is a boiler wiring harness — a pre-formed loom of cables and moulded connectors that carries power and control signals between the appliance's main PCB and its components, including the fan, gas valve, pump and sensors. It is produced by Ideal for the Esprit 2 and Evo HE families. Because the loom is supplied as a complete assembly, a damaged or corroded harness can be swapped out at the connector points rather than rewiring the boiler by hand.
Signs this part needs replacing
- The boiler fails to fire or locks out intermittently with no clear fault at any single component
- Fault codes appear and clear again, or change when the loom is disturbed
- Insulation is chafed, brittle or hardened by heat, particularly near the heat exchanger or fan
- Connector pins are loose, corroded, discoloured or show signs of arcing
- Components such as the fan or pump run erratically or cut in and out
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the harness suits your model
- Compare the part number on the existing loom with 175423 and 1780895 before ordering
- Isolate the electrical supply at the fused spur and allow the boiler to cool before removing the old harness
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 175423 |
|---|---|
| Barcode / EAN | 5022141754234 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1780895 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL IDEAL : ISAR + PROGRAMMER HE24 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE30 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE35 | — | — | — | |
| IDEAL ISAR + PROGRAMMER HE24 | 47-348-43 | 47-348-43 | — | — |
Showing 10 of 16 compatible appliances.
