Ideal

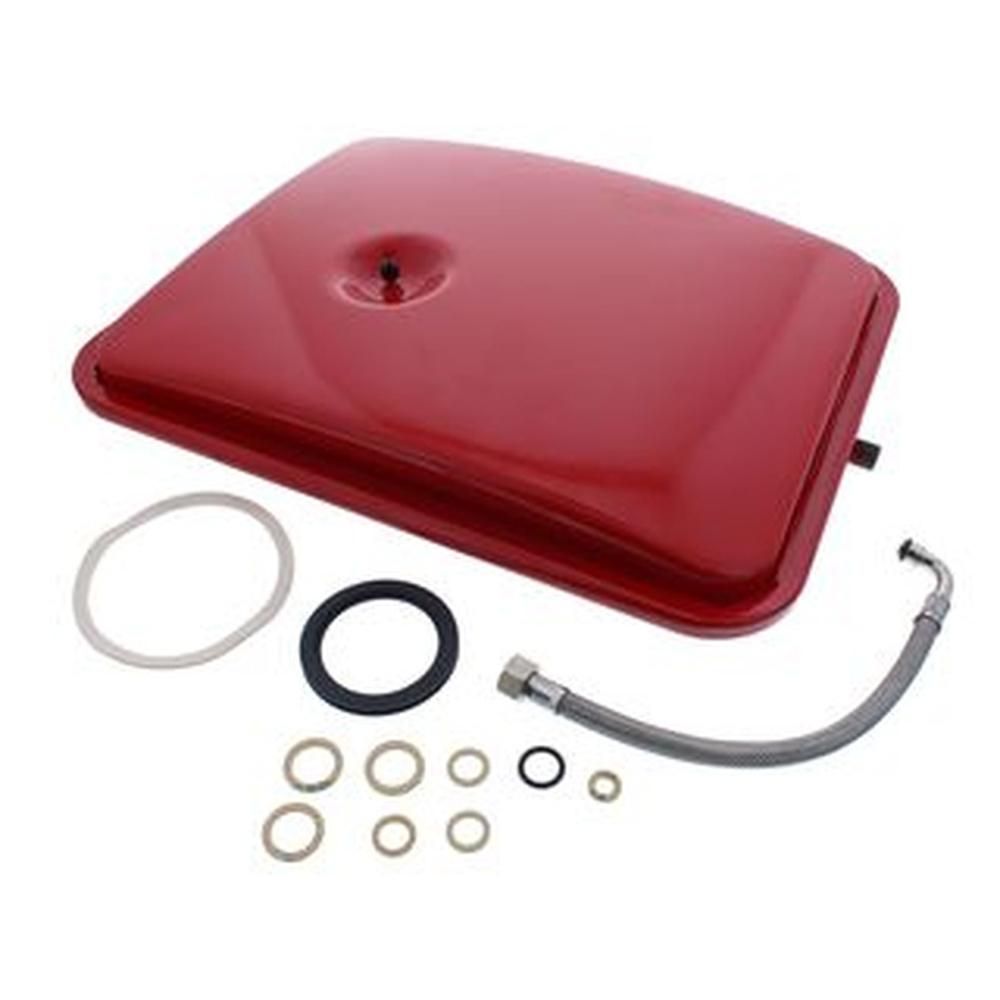

Ideal Expansion Vessel Kit 175415
Expansion vessel kit for Ideal Esprit 2 and Evo HE boilers, part 175415, absorbing heating circuit expansion to keep system pressure stable.
At a glance
- Part type: Expansion vessel kit
- Also known as 1780887, N5044
£235.18
£195.98 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 175415 is an expansion vessel kit for Ideal domestic boilers. The vessel contains a sealed diaphragm that absorbs the increase in water volume as the heating circuit warms, holding system pressure within its working range as the boiler runs. It is listed for the Esprit 2 and Evo HE appliance families.
Signs this part needs replacing
- System pressure climbs sharply as the boiler heats up and drops again once it cools
- The filling loop is used repeatedly to bring pressure back up to the cold set point
- Water discharges from the pressure relief valve during normal running
- Water appears at the air charge valve on the vessel, indicating a split diaphragm
- The pressure gauge reads high on a cold system with no obvious cause elsewhere in the circuit
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the model
- Compare the alternative numbers 1780887 and N5044 with the markings on the part being removed
- Confirm the vessel connection size and thread on the existing unit before fitting
- Inspect the vessel connection seal and renew it if it is hardened, flattened or perished
Mechanical
| Part type | Expansion Vessels, Tanks & Cylinders |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 175415 |
|---|---|
| Barcode / EAN | 5022141754159 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1780887, N5044 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL IDEAL : ISAR + PROGRAMMER HE24 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE30 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE35 | — | — | — | |
| IDEAL ISAR + PROGRAMMER HE24 | 47-348-43 | 47-348-43 | — | — |
Showing 10 of 16 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualNo technical questions yet for this part.
