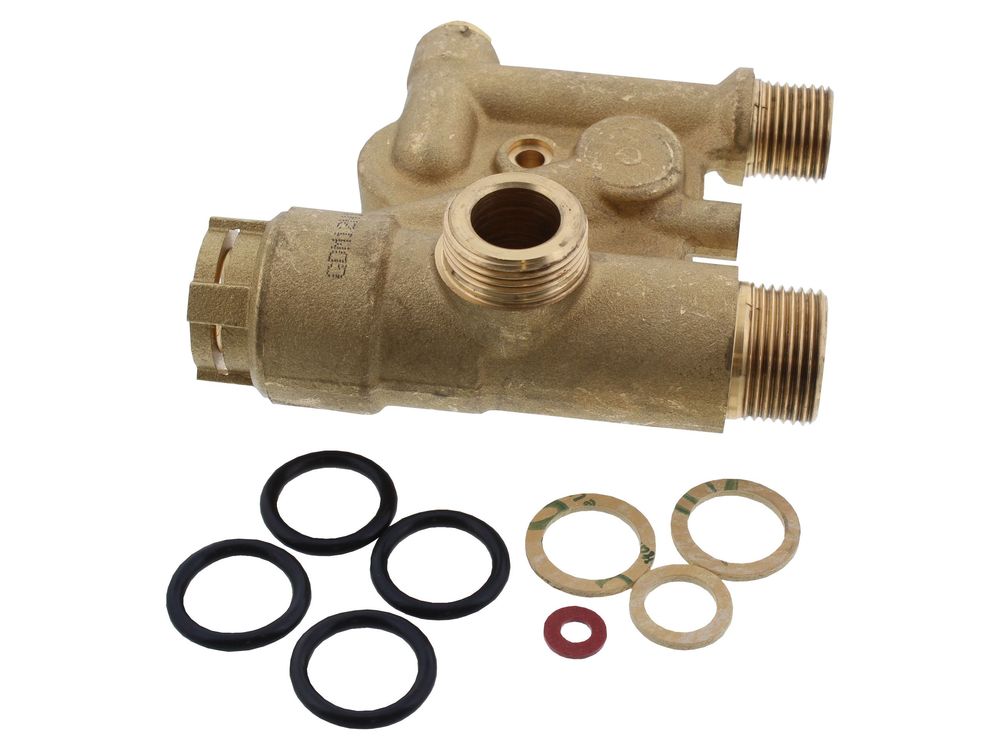

Ideal Flow Group Kit Esprit 2 175407
Ideal Esprit 2 Flow Group Kit, part 175407, a hydraulic assembly for Esprit 2 and Isar HE boilers, also listed under 1780881 and N1692-2.
At a glance
- Part type: Diverter valves and hydraulics
- Also known as 1780881, N1692-2
£465.84
£388.20 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal Esprit 2 Flow Group Kit, part number 175407, is a hydraulic assembly used in Ideal's Esprit 2 and Isar HE family of domestic boilers. It sits within the boiler's water circuit and controls the movement of water between the heating side and the domestic hot water side, including the diverting function that switches the appliance between modes. The kit is supplied as a complete flow group assembly rather than as individual internal components.
Signs this part needs replacing
- Domestic hot water runs cold or fails to reach temperature while the heating continues to work
- The boiler does not switch cleanly between heating and hot water modes
- Water weeping from the flow group body, its joints or its connections
- Hot water temperature fluctuating or dropping away during a draw-off
- The appliance remaining stuck in one mode, with the diverter failing to move
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant
- Confirm the boiler model and output, as this kit covers several Esprit 2 and Isar HE versions
- Inspect the seals and gaskets on removal and renew any that are perished before reassembly
- Isolate and drain the appliance before starting the swap
Mechanical
| Part type | Diverter valves and hydraulics |
|---|
Compliance
| Manufacturer part number (MPN) | 175407 |
|---|---|
| Barcode / EAN | 5022141754074 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1780881, N1692-2 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL IDEAL : ISAR + PROGRAMMER HE24 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE30 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE35 | — | — | — | |
| IDEAL ISAR + PROGRAMMER HE24 | 47-348-43 | 47-348-43 | — | — |
Showing 10 of 16 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualNo technical questions yet for this part.
