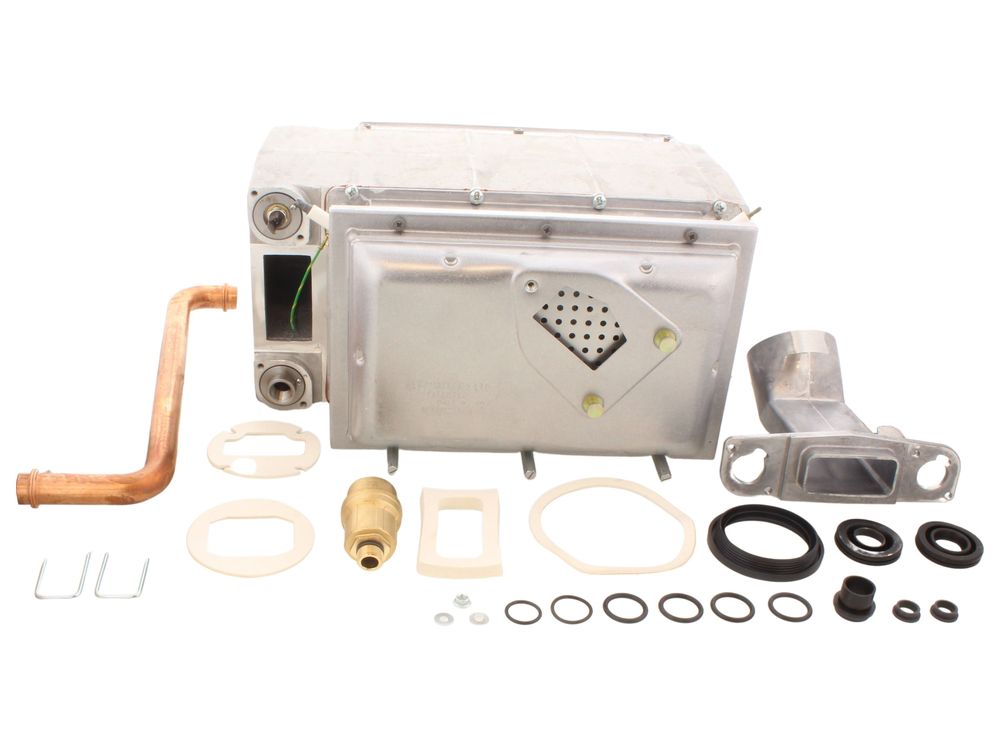

Ideal Heat Engine Kit Isar HE Icos MV3 175160
Ideal 175160 heat engine kit (heat exchanger) for Isar HE, Icos System MV3, Esprit 2 and Evo HE boilers; alternative number 1781350.
At a glance
- Part type: Heat exchanger (heat engine kit)
- Appliance family: Isar HE / Icos System MV3
- Also known as 1781350
£966.52
£805.43 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 175160 is a heat engine kit — the primary heat exchanger assembly used across the Ideal Isar HE, Icos System MV3 and related boiler ranges. It sits in the combustion path and transfers heat from the burner gases into the system water that serves the radiators and hot water circuit. The kit is supplied as a complete heat engine unit for direct replacement of the original assembly.
Signs this part needs replacing
- The boiler locks out or fails to fire reliably, with repeated ignition or flame faults.
- Heating or hot water output drops noticeably, or the appliance struggles to reach temperature.
- Kettling, banging or rumbling noises coming from the heat exchanger during operation.
- Water weeping from the heat engine body, its seals or the surrounding pipework joints.
- Overheat faults or a heat exchanger that is scaled or sludged and cannot be cleared by flushing.
Before you order
- Check the GC number on the appliance data badge against the compatibility list below before ordering.
- Confirm the exact model and, where available, the serial number, as appliances in the same range can use different heat engines.
- Order replacement seals or gaskets where the existing ones will be disturbed during removal and refitting.
Mechanical
| Part type | Heat exchanger (heat engine kit) |
|---|---|
| Appliance family | Isar HE / Icos System MV3 |
Compliance
| Manufacturer part number (MPN) | 175160 |
|---|---|
| Barcode / EAN | 5022141751608 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781350 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL ICOS SYSTEM HE15 | 41-421-99 | 41-421-99 | — | — |
| IDEAL ICOS SYSTEM HE24 | 41-397-82 | 41-397-82 | — | — |
| IDEAL IDEAL : ISAR + PROGRAMMER HE24 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE30 | — | — | — |
Showing 10 of 18 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE15 (GC 41-421-99)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE24 (GC 41-397-82)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
