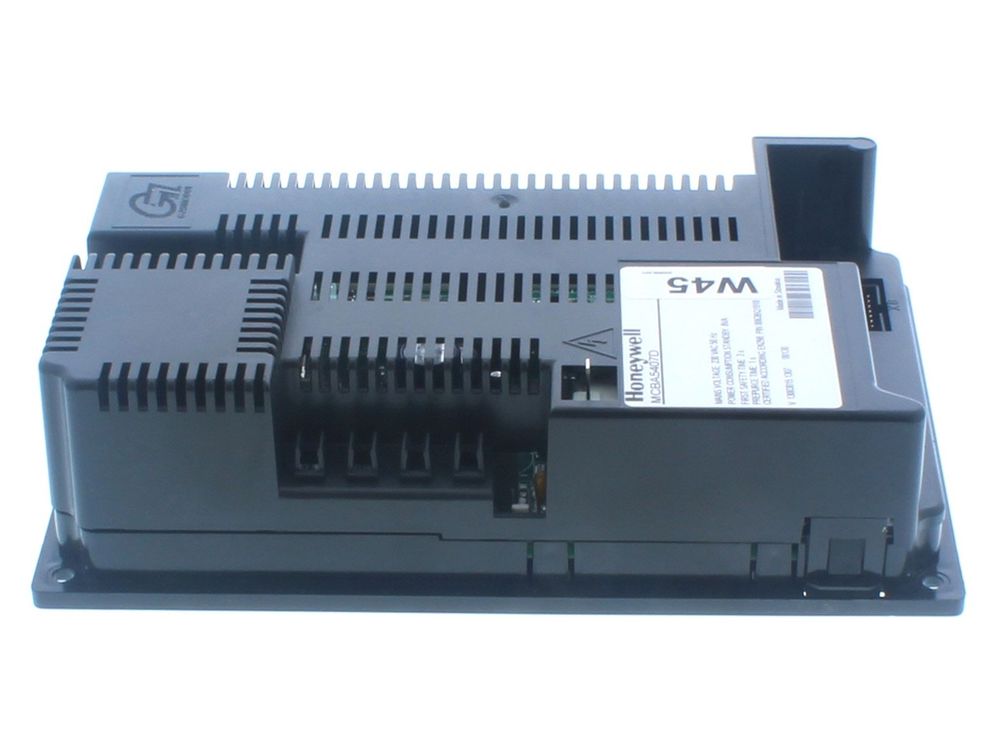

Ideal Control Module Imax W45 174884
Ideal control module for Imax W45 and W45P propane commercial appliances, part 174884. Direct replacement PCB for the unit's control function.
At a glance
- Part type: Printed circuit board / control module
- Also known as 1780863, N7245
£612.35
£510.29 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal control module is a printed circuit board assembly that manages the control function inside Ideal Commercial Imax appliances. It sits within the unit's control box and governs the sequencing and monitoring that keep the appliance running reliably. This module is supplied as a spare under Ideal part number 174884.
Signs this part needs replacing
- The appliance fails to fire or will not run through its start sequence
- Repeated lockouts or fault codes that clear only temporarily
- Heating or hot water output becomes intermittent with no obvious mechanical cause
- The control panel or display is unresponsive, blank or erratic
- The board shows visible signs of heat damage, corrosion or moisture ingress
Before you order
- Confirm the appliance model and GC number against the compatibility list before ordering
- Check the existing board for its printed part number and compare it with 174884 and the alternative numbers listed
- Inspect the control box for moisture, loose plugs or damaged wiring that may have caused the original failure
- Have the replacement fitted and the appliance recommissioned by a competent engineer
Mechanical
| Part type | Control Box, Panels & Accessories |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 174884 |
|---|---|
| Barcode / EAN | 5022141748844 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1780863, N7245 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IMAX W45 | 41-397-97 | 41-397-97 | — | — |
| IDEAL COMMERCIAL IMAX W45P - PROPANE | 41-399-01 | 41-399-01 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
