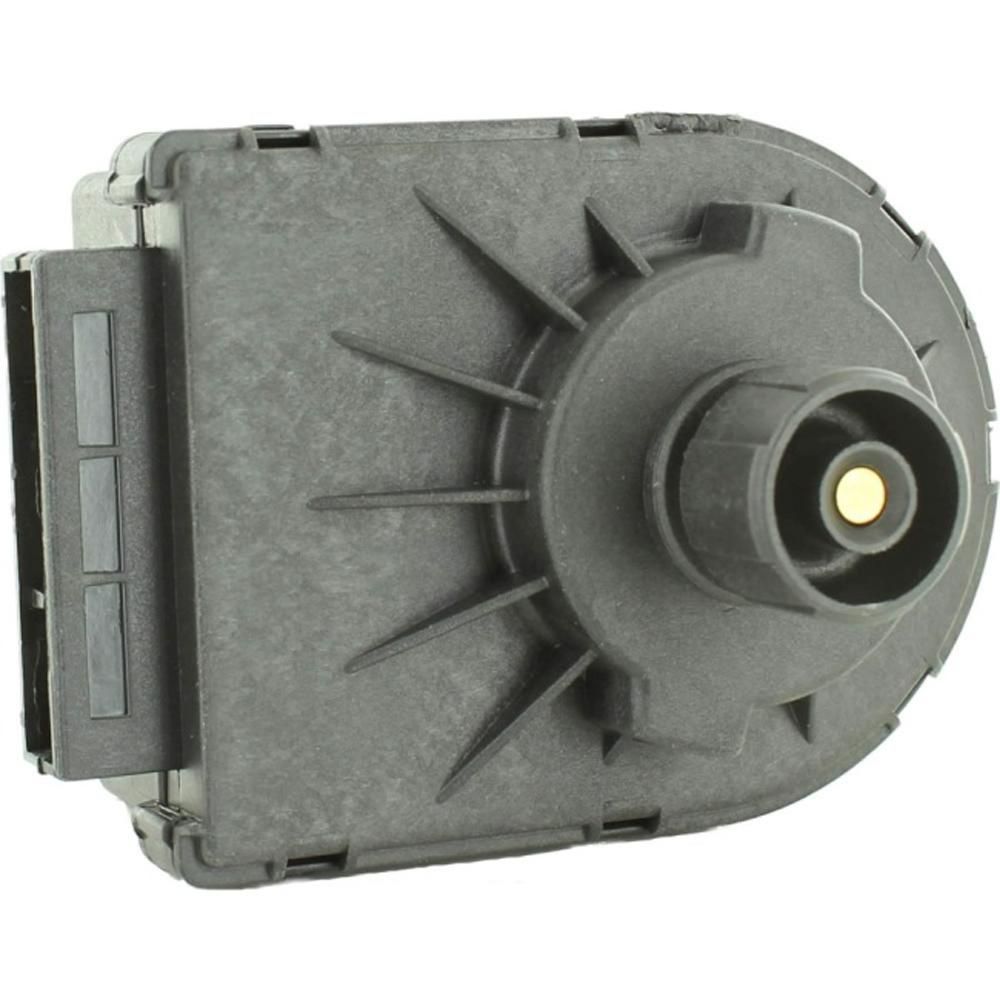

Ideal 174813 Diverter Valve Head
At a glance
- Part type: Diverter and motorised valves
- Also known as IDEAL174813
Showing prices
£36.00
£30.00 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 174813 is a diverter valve head manufactured for Ideal domestic heating appliances. It forms the operating head of the diverter valve, the component that routes water through the primary and secondary circuits so the appliance can switch between central heating and hot water production. The head drives the internal mechanism that opens and closes the flow paths inside the valve body.
Signs this part needs replacing
- The appliance runs in heating mode but produces no hot water, or the reverse.
- Radiators heat up when only hot water is called for, indicating the valve is stuck in one position.
- The actuator motor runs continuously, buzzes, or hunts without moving the valve.
- No change in flow direction when the appliance switches between heating and hot water.
- Water weeping from around the head or the valve spindle.
Before you order
- Check the appliance data plate and GC number, then compare the number on the existing valve head with 174813.
- Inspect the valve body and its seals at the same time, since a worn or scaled body will affect the operation of a replacement head.
- Confirm the appliance model and variant, as valve assemblies can differ between ranges.
Mechanical
| Part type | Diverter & Motorised Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 174813 |
|---|---|
| Commodity code | 8481 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 502214174813, IDEAL174813, IDEAL174813, IDEAL174813, 256191048679, N5422 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL ESPRIT HE24 | 47-348-46 | 47-348-46 | — | — |
| IDEAL ESPRIT HE30 | 47-348-47 | 47-348-47 | — | — |
| IDEAL ESPRIT HE35 | 47-348-48 | 47-348-48 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL INDEPENDENT C24 | 47-348-68 | 47-348-68 | — | — |
Showing 10 of 56 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — ESPRIT HE24 (GC 47-348-46), ESPRIT HE30 (GC 47-348-47), ESPRIT HE35 (GC 47-348-48)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — INDEPENDENT C24 (GC 47-348-68), INDEPENDENT C30 (GC 47-348-69), INDEPENDENT C35 (GC 47-348-70)
manualmanualIDEAL appliance manual — INDEPENDENT PLUS C24 (GC 47-348-85), INDEPENDENT PLUS C30 (GC 47-348-86), INDEPENDENT PLUS C35 (GC 47-348-87)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — LOGIC + COMBI 24 (GC 47-348-65), LOGIC + COMBI 30 (GC 47-348-66), LOGIC + COMBI 35 (GC 47-348-67)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI 26 (GC 47-348-74), LOGIC CODE COMBI 33 (GC 47-348-75), LOGIC CODE COMBI 36 (GC 47-348-76)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI ES26 (GC 47-349-04), LOGIC CODE COMBI ES33 (GC 47-349-05), LOGIC CODE COMBI ES38 (GC 47-349-06)
manualmanualIDEAL appliance manual — LOGIC COMBI 24 (GC 47-348-56), LOGIC COMBI 30 (GC 47-348-57), LOGIC COMBI 35 (GC 47-348-58)
manualmanualIDEAL appliance manual — LOGIC COMBI E 24 (GC 47-348-88), LOGIC COMBI E 30 (GC 47-348-89), LOGIC COMBI E 35 (GC 47-348-90)
manualmanualIDEAL appliance manual — LOGIC COMBI ES 24 (GC 47-349-01), LOGIC COMBI ES 30 (GC 47-349-02), LOGIC COMBI ES 35 (GC 47-349-03)
manualmanualIDEAL appliance manual — VOGUE C26 (GC 47-348-99), VOGUE C32 (GC 47-348-98), VOGUE C40 (GC 47-348-97)
manualmanualIDEAL appliance manual — VOGUE S15 (GC 41-750-56), VOGUE S18 (GC 41-750-55), VOGUE S26 (GC 41-750-54), VOGUE S32 (GC 41-750-53)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA COMBI 30 (GC 47-002-01), ZANUSSI ULTRA COMBI 35 (GC 47-002-02)
manualmanualIDEAL appliance manual — i MINI 24 (GC 47-348-77), i MINI 30 (GC 47-348-78)
manualmanualKESTON appliance manual — 30C COMBINATION BOILER (GC 47-930-03)
manualmanualKESTON appliance manual — COMBI 30 BOILER (GC 47-930-04), COMBI 35 BOILER (GC 47-930-05)
