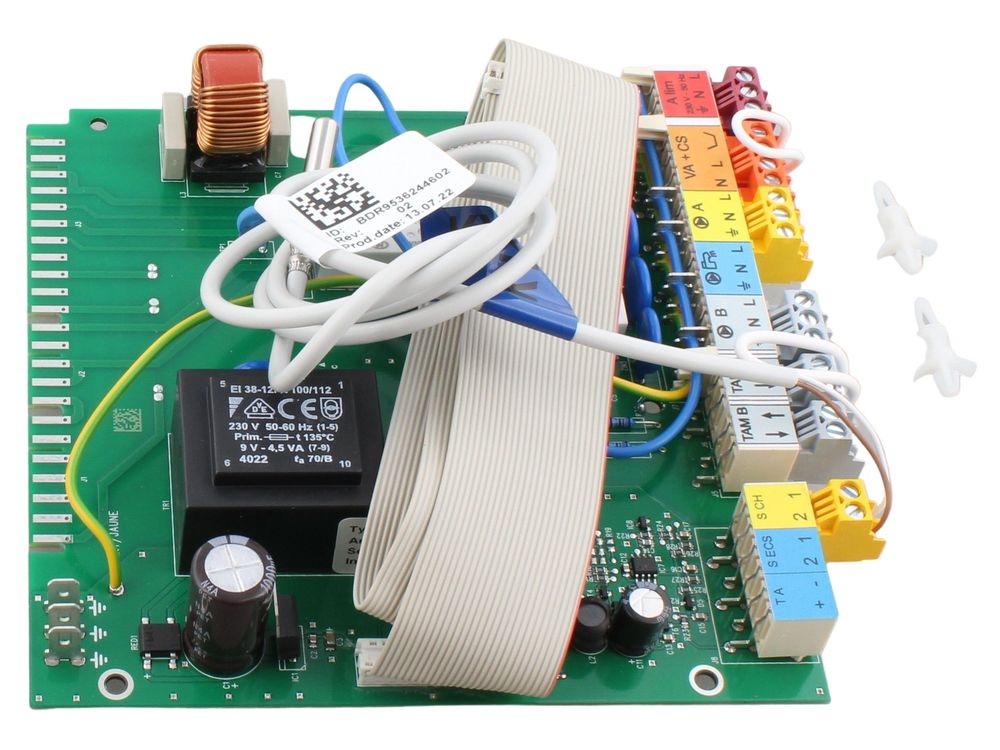

Ideal Relay Printed Circuit Board On/Off Control 174736
Ideal 174736 relay printed circuit board with on/off control, a PCB spare for Ideal Commercial appliances, also listed as 8806-5564.
At a glance
- Part type: Printed circuit boards (PCB)
- Also known as 1780756
£566.00
£471.67 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 174736 is a relay printed circuit board with on/off control, produced by Ideal for use in its commercial appliance range. The board carries the relay and control circuitry that handles the on/off switching sequence of the unit, making it a central electrical component rather than a peripheral fitting. It is catalogued under Ideal's printed circuit board (PCB) spare part type and is also referenced on the supplier listing as 8806-5564.
Signs this part needs replacing
- The appliance does not fire or does not complete its start sequence when called for.
- The on/off control fails to respond, or responds only intermittently.
- Repeated lockouts or shutdowns during normal running.
- An audible relay click with no matching action from the appliance.
- Visible scorching, discoloured tracks or physical damage on the board itself.
Before you order
- Match the part number 174736, or the supplier reference 8806-5564, against the board being removed.
- Check the alternative number 1780756 where the marking on the existing board differs.
- Confirm the appliance model against the compatibility list before ordering.
- Isolate the electrical supply to the appliance before removing or fitting the board.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 174736 |
|---|---|
| Barcode / EAN | 5022141747366 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Electronic Circuit Accessories |
| Alternative numbers | 1780756 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
