Ideal Connecting Lead F320-560 174680

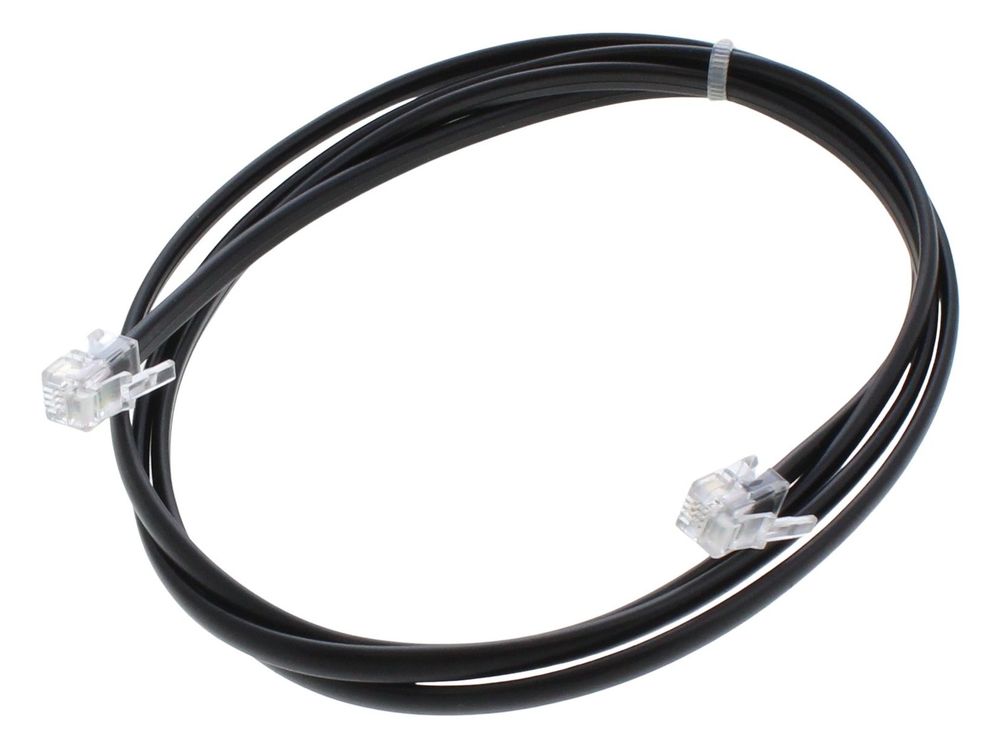

Ideal 174680 connecting lead for Ideal Commercial Imax Xtra F320-560 boilers, carrying supply and control signals inside the appliance.
At a glance
- Part type: Wiring / connecting lead
- Also known as 1780260
£41.17
£34.31 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 174680 is a connecting lead (wiring harness) used in Ideal Commercial Imax Xtra boilers across the F320 to F560 range. It carries electrical supply and control signals between internal components such as the control board, fan and ignition circuit. It is supplied as an Ideal Commercial boiler spare.
Signs this part needs replacing
- Boiler fails to fire, or locks out intermittently
- Fault codes relating to the fan, ignition or control board
- Visible damage to the lead, such as cracked insulation, chafing or scorching
- Loose, corroded or pushed-back plug connectors at either end
- Intermittent operation that changes when the harness is moved
Before you order
- Confirm your appliance model and serial number against the compatibility list
- Compare the part number on the existing lead with 174680 and 1780260
- Isolate the electrical supply before removing or fitting the lead
- Inspect the mating connectors for damage before refitting the new lead
Mechanical
| Part type | Wiring |
|---|
Compliance
| Manufacturer part number (MPN) | 174680 |
|---|---|
| Barcode / EAN | 5022141746802 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1780260 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E320 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E400 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E480 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E560 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA F320 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA F400 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA F480 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA F560 | — | — | — |
