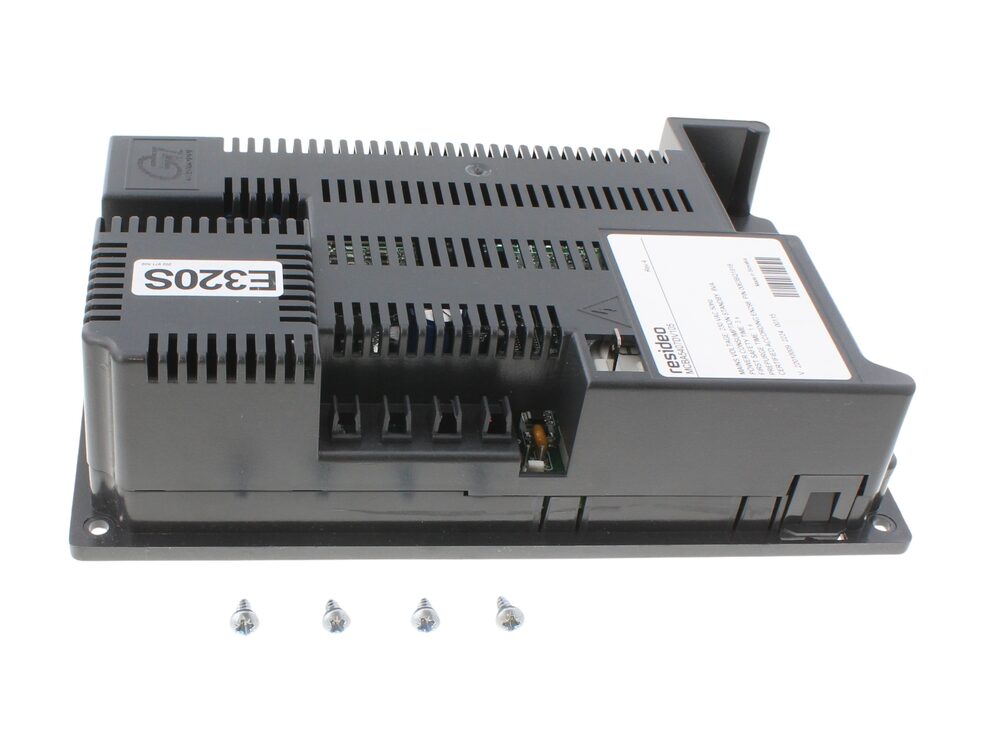

Ideal Control Module Slave 174668
Ideal 174668 slave control module, a printed circuit board spare for Ideal Commercial Imax Xtra E120 to E240 boilers. Alternative number 1780844.
At a glance
- Part type: Printed circuit board (control module)
- Also known as 1780844
£607.92
£506.60 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 174668 is a slave control module — a printed circuit board used in the control arrangement of Ideal Commercial boilers. It sits alongside the master board and carries out part of the appliance's electronic control and monitoring work, so the boiler's sequence of operation runs correctly.
It is supplied as an Ideal Commercial boiler spare and is listed under the printed circuit board part type.
Signs this part needs replacing
- The boiler locks out and will not complete a firing sequence
- The display is blank, scrambled or shows repeated fault codes
- The appliance runs intermittently or shuts down without an obvious external cause
- Controls or sensors connected to the board stop responding
- Visible damage, scorching or moisture tracking on the board itself
Before you order
- Confirm your appliance model and, where shown, the GC number against the compatibility list before ordering
- Check the board currently fitted to the appliance and match the part number 174668 or the alternative number 1780844
- Identify whether the appliance uses a master and slave board arrangement, as this listing covers the slave module only
Mechanical
| Part type | Printed circuit board |
|---|
Compliance
| Manufacturer part number (MPN) | 174668 |
|---|---|
| Barcode / EAN | 5022141746680 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1780844 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E120 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E160 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E200 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E240 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E280 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E320 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E400 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E480 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E560 | — | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — IMAX XTRA E120, IMAX XTRA E160, IMAX XTRA E200, IMAX XTRA E240, IMAX XTRA E280, IMAX XTRA E80
manualmanualIDEAL COMMERCIAL appliance manual — IMAX XTRA E320, IMAX XTRA E400, IMAX XTRA E480, IMAX XTRA E560
manualmanualIDEAL COMMERCIAL appliance manual — IMAX XTRA F120, IMAX XTRA F160, IMAX XTRA F200, IMAX XTRA F240, IMAX XTRA F280, IMAX XTRA F80
manualNo technical questions yet for this part.
