Ideal Drain Valve Pack Brass 22 mm 174560

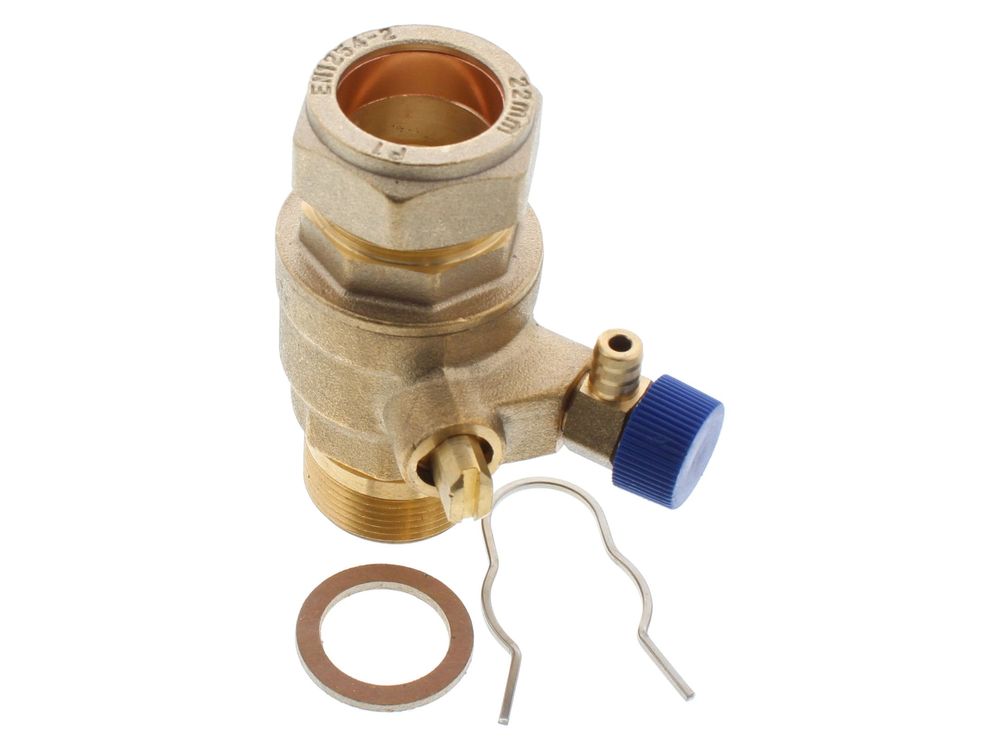

Ideal brass 22 mm drain valve pack (174560) with clip and washer, for Evo, Isar, Icos and Esprit 2 boilers.
At a glance
- Part type: Isolation valve / drain valve
- Also known as 1780272
£62.30
£51.92 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 174560 is a brass drain valve pack supplied with a retaining clip and washer. It is used on the isolation valve arrangement of Ideal Evo, Isar, Icos and Esprit 2 boilers, where it sits on the pipework beneath the appliance. The valve lets an engineer or competent homeowner control the flow of water into the heating circuit and shut it off when the system needs draining, servicing or repairing.
Signs this part needs replacing
- Water weeping from the valve body, spindle or gland when the system is under pressure
- The valve spindle seizes or becomes stiff, so the flow cannot be shut off cleanly
- Visible corrosion, scale build-up or a cracked brass body around the connection
- Difficulty draining the appliance because the valve no longer closes fully
- Damp staining on the pipework or casing beneath the boiler after servicing
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct valve for your model
- Note the alternative part number 1780272, which may appear on older documentation or stock records
- Confirm whether the existing clip and washer are reusable; the pack includes replacements if they are not
Mechanical
| Part type | Drain Valves |
|---|---|
| Material | Brass |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 174560 |
|---|---|
| Barcode / EAN | 5022141745607 |
| Alternative numbers | 1780272 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL ICOS SYSTEM HE15 | 41-421-99 | 41-421-99 | — | — |
| IDEAL ICOS SYSTEM HE24 | 41-397-82 | 41-397-82 | — | — |
| IDEAL ICOS SYSTEM M3080 | 41-391-52 | 41-391-52 | — | — |
| IDEAL IDEAL : ISAR + PROGRAMMER HE24 | — | — | — |
