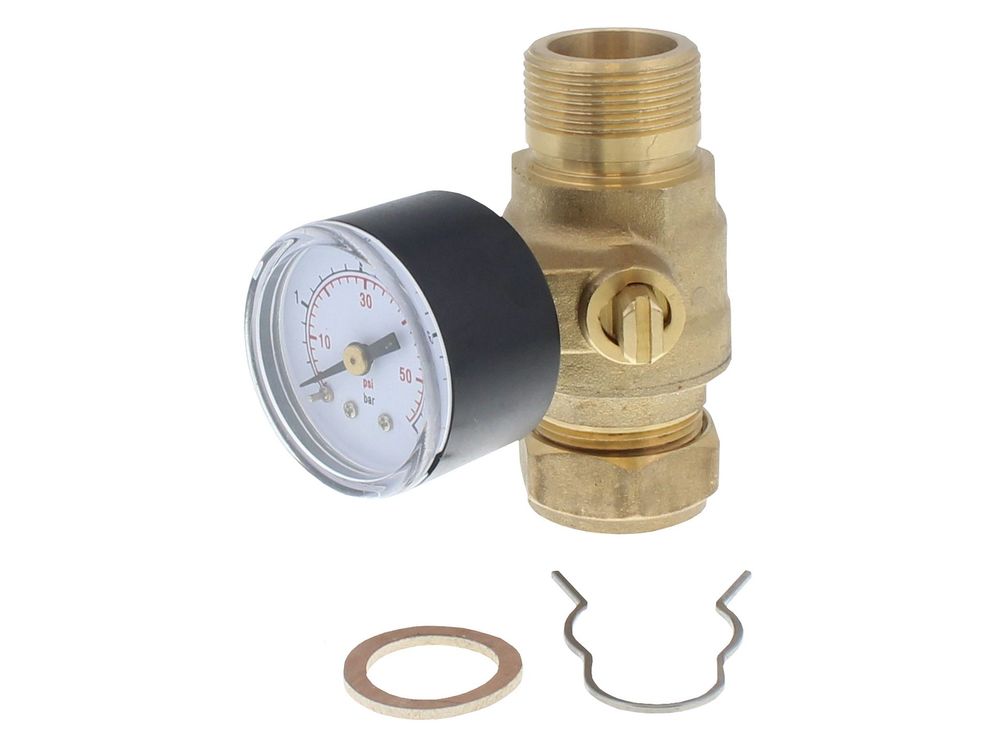

Ideal Gauge Pack C/W 22mm Valve 174559
Ideal pressure gauge pack with 22mm valve, part 174559, for Esprit 2 and Evo HE boilers. Gives a visual reading of sealed system pressure.
At a glance
- Part type: Gauge pack with 22mm valve
- Also known as 1780376
£90.68
£75.57 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal gauge pack is a replacement pressure gauge assembly supplied with a 22mm valve. It is manufactured by Ideal for its domestic boiler range and fits models across the Esprit 2 and Evo HE families. The gauge provides a visual measurement of the pressure built up within the central heating system, so a fall in pressure — often the first indication of a leak somewhere on the heating circuit — can be identified at the boiler.
Signs this part needs replacing
- The gauge needle sits at zero or fails to move when the system is pressurised.
- The needle sticks, jumps or gives an inconsistent reading across the dial.
- The system loses pressure repeatedly and needs frequent topping up.
- The gauge face is fogged, cracked or the dial markings are no longer legible.
- There is visible weeping or a drip at the gauge or its valve connection.
Before you order
- Check the GC number and appliance serial plate against the compatibility list to confirm the correct gauge pack for the boiler.
- Confirm whether the appliance is currently fitted with 174559 or the earlier number 171849.
- The pack is supplied with a 22mm valve, so check the existing valve connection before starting work.
- Inspect the sealing washers and connections on removal and replace any that are perished.
Mechanical
| Part type | Valves General, Assembly |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 174559 |
|---|---|
| GC number | E78-202 |
| Barcode / EAN | 5022141745591 |
| Commodity code | 9026 20 40 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 171849, 1780376 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL ICOS SYSTEM HE15 | 41-421-99 | 41-421-99 | — | — |
| IDEAL ICOS SYSTEM HE24 | 41-397-82 | 41-397-82 | — | — |
| IDEAL ICOS SYSTEM M3080 | 41-391-52 | 41-391-52 | — | — |
| IDEAL IDEAL : EVO HE C22/24 | — | — | — |
Showing 10 of 29 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE15 (GC 41-421-99)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE24 (GC 41-397-82)
manualmanualIDEAL appliance manual — ICOS SYSTEM M3080 (GC 41-391-52)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — ISAR M30100 (GC 47-348-15)
