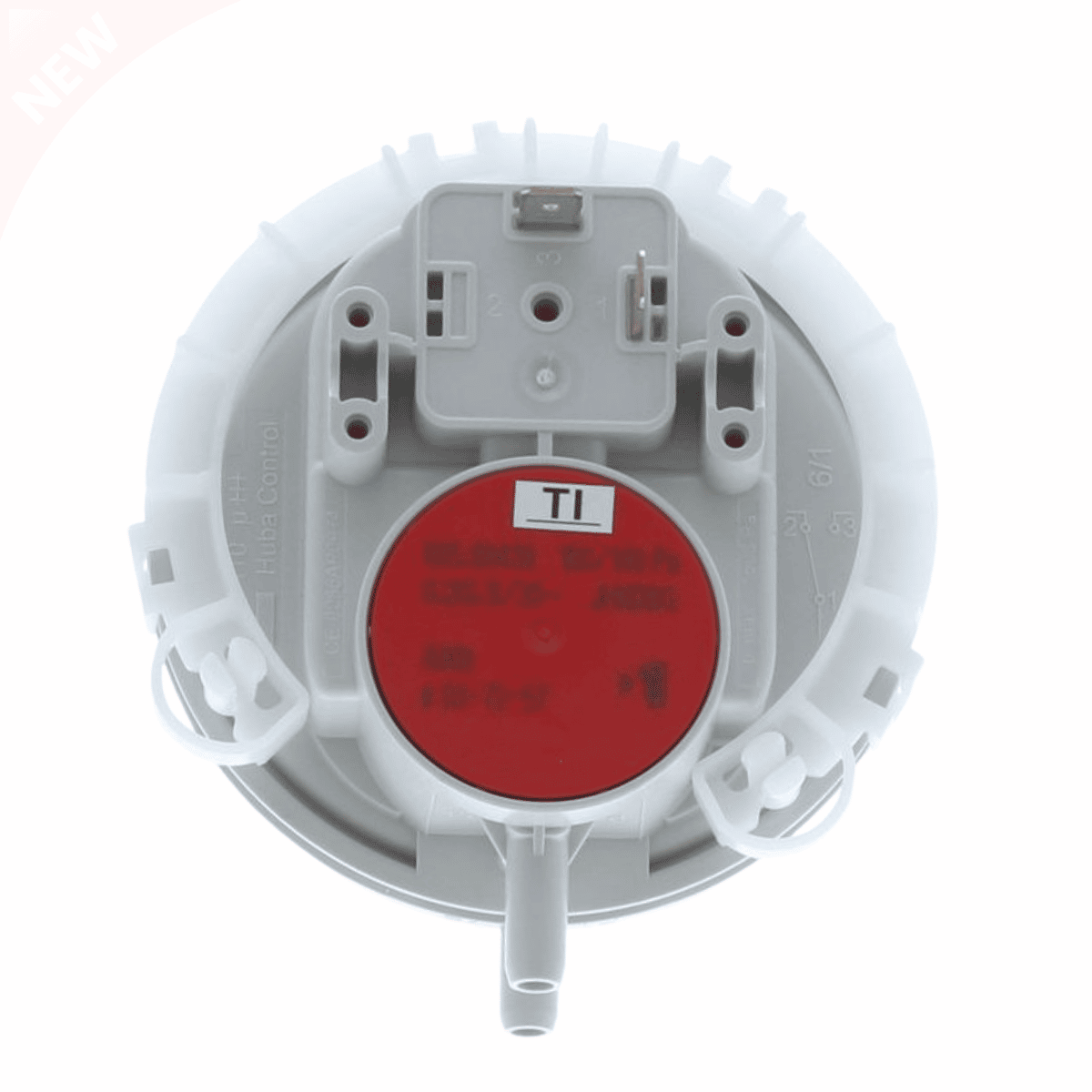

Ideal Air Pressure Switch Imax Xtra 174418
Ideal air pressure switch 174418 for Imax Xtra commercial boilers, proving fan operation before the boiler fires.
At a glance
- Part type: Pressure switch
- Also known as 1780374
£113.59
£94.66 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal air pressure switch, part 174418, is a safety device fitted to Ideal Commercial Imax Xtra boilers. It senses the pressure generated by the combustion fan and confirms the fan is running before the boiler is allowed to fire and continue running. If the fan stops or air flow through the appliance is restricted, the switch interrupts the sequence so that flue products cannot accumulate without a safe path out of the boiler.
Signs this part needs replacing
- The boiler locks out on start-up, or shortly after the fan begins to run
- The fan can be heard running but the boiler will not fire
- Repeated lockouts that clear on reset and then return
- Fault codes relating to fan operation or air pressure
- Intermittent running that worsens when the flue or air intake is restricted
Before you order
- Confirm your appliance model and serial number against the compatibility list before ordering
- Cross-reference the alternative part number 1780374 when checking against an existing switch
- Inspect the fan, flue and air intake for blockage or damage first, as restricted air flow can produce the same symptoms as a failed switch
Mechanical
| Part type | Pressure Switches |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 174418 |
|---|---|
| Barcode / EAN | 5022141744181 |
| Commodity code | 9032 20 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1780374 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E120 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E160 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E200 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E240 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E280 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E320 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E400 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E480 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E560 | — | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — IMAX XTRA E120, IMAX XTRA E160, IMAX XTRA E200, IMAX XTRA E240, IMAX XTRA E280, IMAX XTRA E80
manualmanualIDEAL COMMERCIAL appliance manual — IMAX XTRA E320, IMAX XTRA E400, IMAX XTRA E480, IMAX XTRA E560
manualmanualIDEAL COMMERCIAL appliance manual — IMAX XTRA F120, IMAX XTRA F160, IMAX XTRA F200, IMAX XTRA F240, IMAX XTRA F280, IMAX XTRA F80
manualNo technical questions yet for this part.
