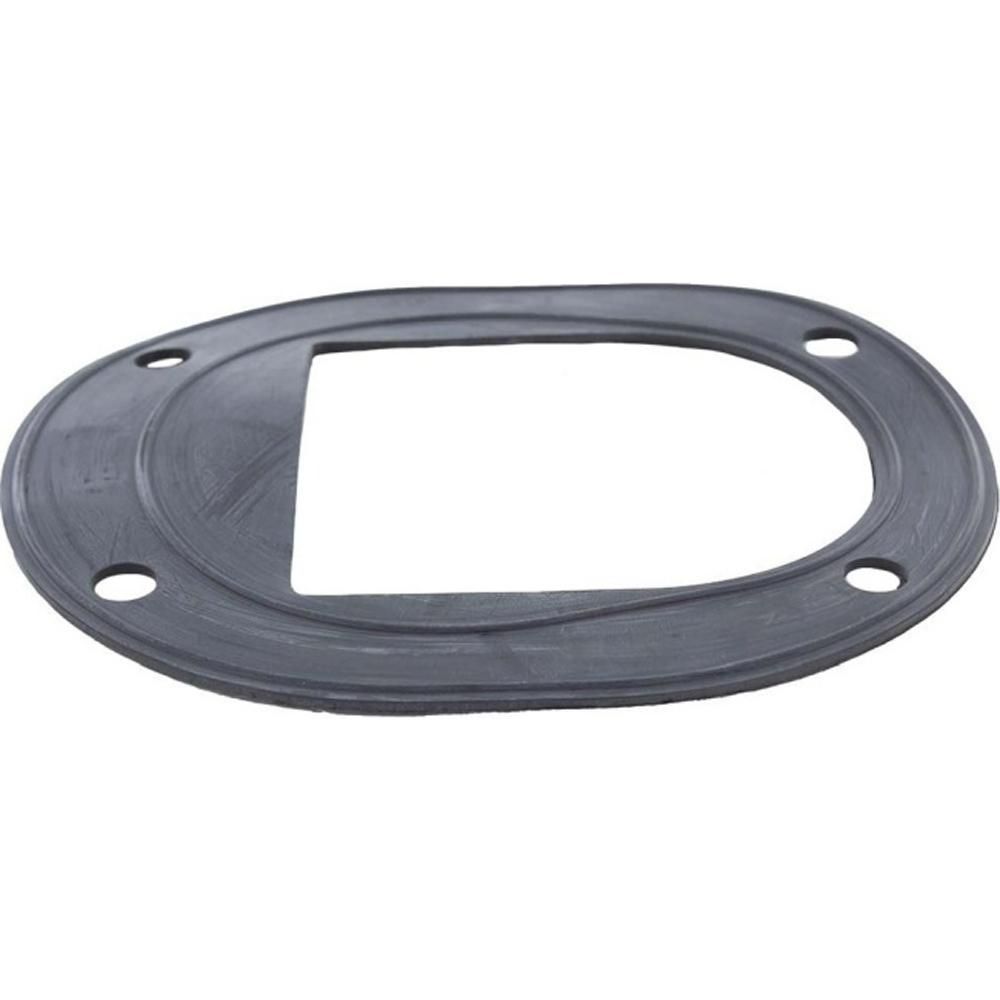

Ideal Fan Gasket IMAX XTRA F80-120 174414

The Ideal 174414 is a fan gasket used on Ideal Commercial IMAX XTRA appliances. It sits at the fan mounting face, sealing the joint between the fan and the surrounding casing or flue path so that products of combustion are drawn away correctly and air is not pulled in where it should not be. The gasket is a consumable item: heat, vibration and repeated service work all take their toll on the sealing material, and a perished or flattened gasket will not seal reliably.

• Soot staining or dark tracking around the fan mounting face, indicating leakage at the joint
• A gasket that is brittle, cracked, compressed flat or stuck to the mating surface when the fan is removed
• Combustion readings that drift or fall outside the expected range for the appliance
• Whistling, a draught or a smell of combustion products local to the fan area
• Increased fan noise or vibration after the fan has been disturbed during service

• Confirm the appliance model and, where available, the GC number against the compatibility list before ordering
• Cross-reference the alternative number 1780164 if you are working from an older parts listing
• Check whether the fan on your appliance is being removed for repair or replacement, as the gasket is normally renewed at the same time
• Have the appliance details to hand so the correct variant is matched to the model on site
