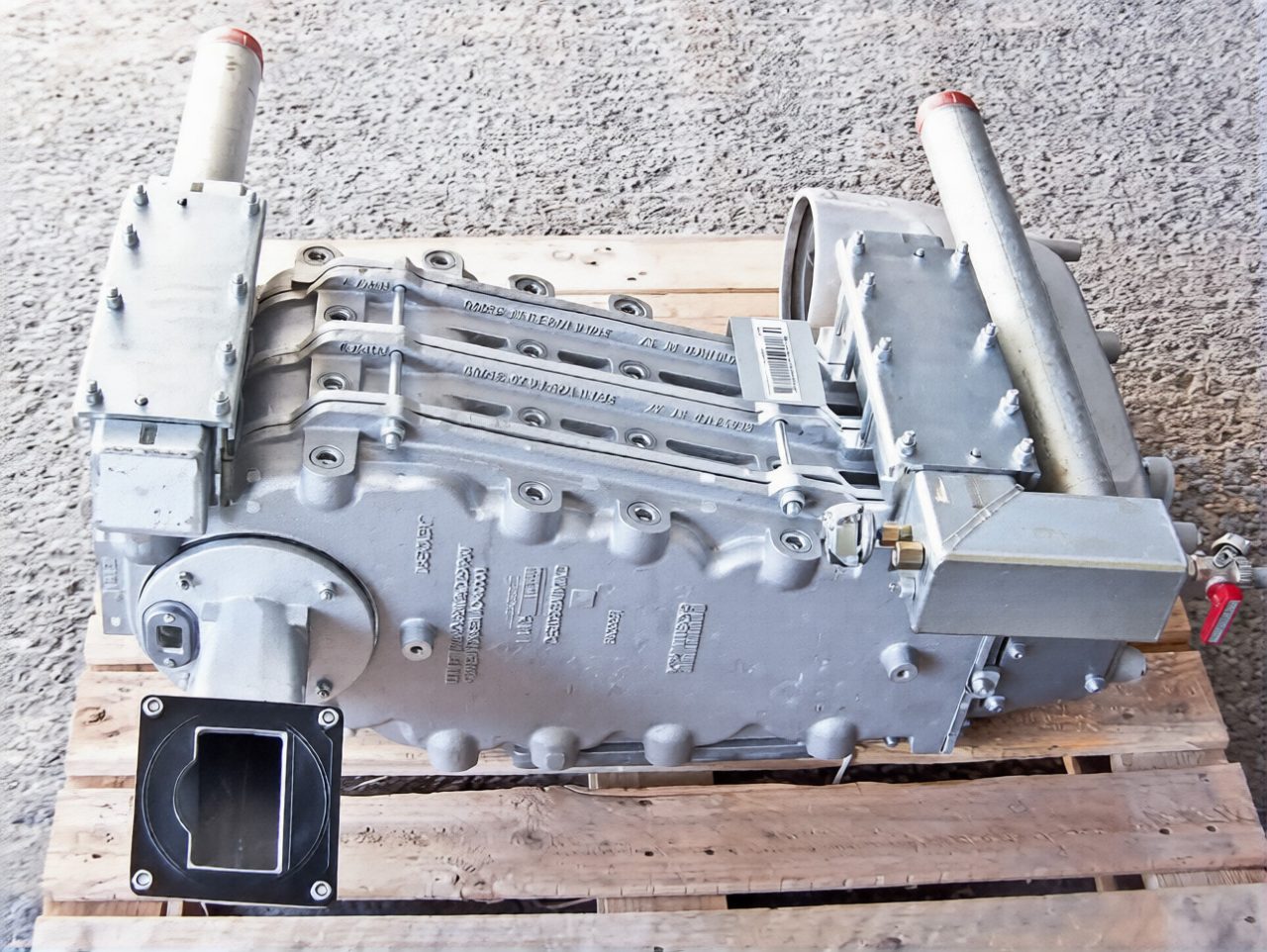

Ideal Heat Exchanger Sub Assembly Imax Xtra F120 174399
Heat exchanger sub assembly for Ideal Commercial Imax Xtra E120 and F120 boilers, part 174399, alternative number 1782148.
At a glance
- Part type: Heat exchanger sub assembly
- Appliance family: Imax Xtra
- Also known as 1782148
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£8,175.66
£6,813.05 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 174399 is a heat exchanger sub assembly supplied for Ideal Commercial Imax Xtra appliances. It forms the primary heat transfer component of the boiler, taking heat from the combustion gases and passing it into the water circuit that serves the heating and hot water system. The assembly is built for the Imax Xtra range and is listed by Ideal under part number 174399.
Signs this part needs replacing
- Water loss or visible weeping around the heat exchanger body or its connections
- Repeated overheat lockouts or the boiler cutting out before reaching temperature
- Kettling, banging or rumbling noises from the heat exchanger during firing
- Reduced heating or hot water output despite the burner running normally
- Scale build-up, corrosion pitting or distortion found on inspection of the exchanger
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering
- Check the existing part number and any alternative number marked on the component
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Assess whether any gasket or seal associated with the exchanger joint needs replacing at the same time
Mechanical
| Part type | Heat Exchanger Sub Assembly |
|---|---|
| Appliance family | Imax Xtra |
Compliance
| Manufacturer part number (MPN) | 174399 |
|---|---|
| Barcode / EAN | 5022141743993 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782148 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA E120 | — | — | — | |
| IDEAL COMMERCIAL IMAX XTRA F120 | — | — | — |
