Ideal Control Module Imax Xtra F280 174390

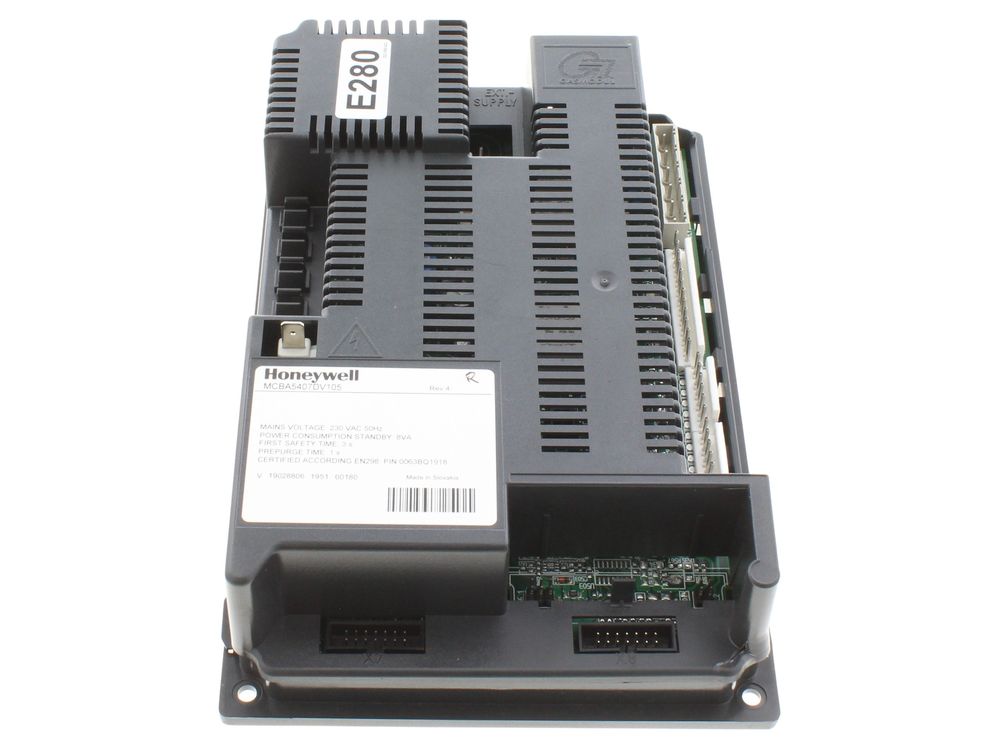

The Ideal 174390 is a control module supplied for Ideal Commercial appliances in the Imax Xtra range. It is the printed circuit board assembly that governs the electronic control sequence of the unit, handling the signals that keep ignition, demand and safety monitoring working together. It is listed by Ideal under the spare part group Control Box, Panels & Accessories.

• The appliance shows no response when a demand is called, with the board giving no output.
• Fault codes or lockout conditions appear repeatedly and cannot be cleared by a reset.
• The unit runs erratically, with sequencing that does not match the call for heat.
• Visible damage on the board, such as scorching, tracking or swollen components.
• Intermittent operation that stops and restarts without any change to the settings or supply.

• Confirm the appliance model and serial number against the compatibility list, as the Imax Xtra E280 and F280 share this control module.
• Note the alternative part number 1779244 when cross-checking against existing documentation or an old board.
• Check the condition of the board connectors and wiring harness before fitting, as damaged plugs can mimic a failed module.
• Work on the appliance should be carried out by a competent person, with the electrical supply isolated before the board is removed.
