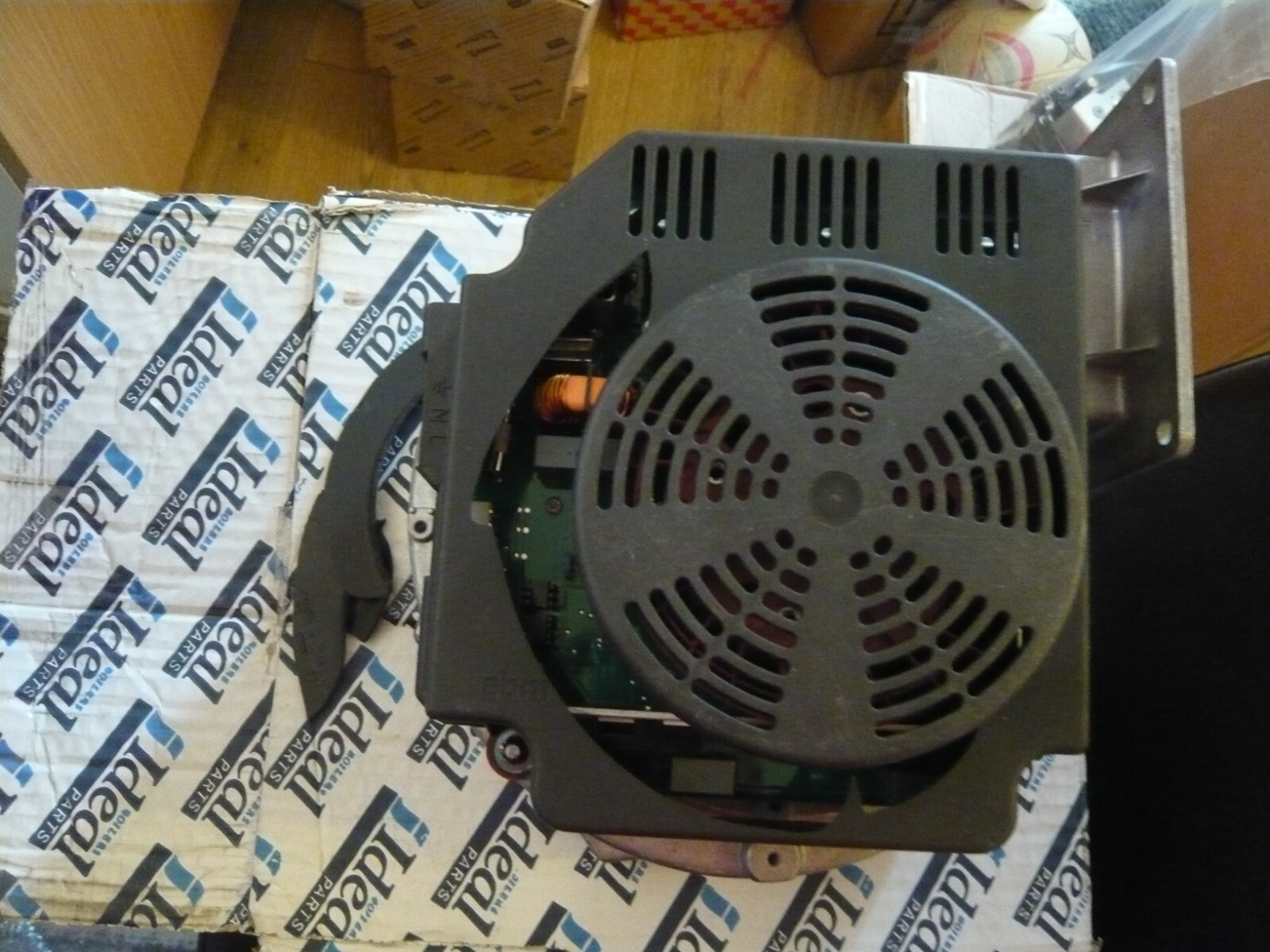

Ideal Fan Assembly Imax Xtra F160 F560 174376

The Ideal 174376 is a fan assembly supplied for Ideal Commercial Imax Xtra appliances. It moves combustion air into the burner and carries flue products out of the heat exchanger, so the appliance can establish and maintain a stable, correctly balanced burn. The assembly is listed against the Imax Xtra range, covering both the E-series and the F160/F560 variants.

• The appliance locks out on start-up or fails to reach ignition, with the fan proving sequence not completing.
• Grinding, scraping or rumbling noise from the fan housing when the appliance runs.
• Intermittent running or a fan that stops and restarts during a demand for heat.
• Repeated lockouts that clear temporarily after a reset but return on the next cycle.
• Visible damage, play or contamination around the fan impeller or housing.

• Confirm the appliance model and serial number against the compatibility list before ordering, as the Imax Xtra range uses more than one fan variant.
• Note the alternative part number 1781036 when cross-referencing an existing unit or an old invoice.
• Check the fan mounting gasket and any sealing components at the same time, as these are normally disturbed during replacement.
