Ideal

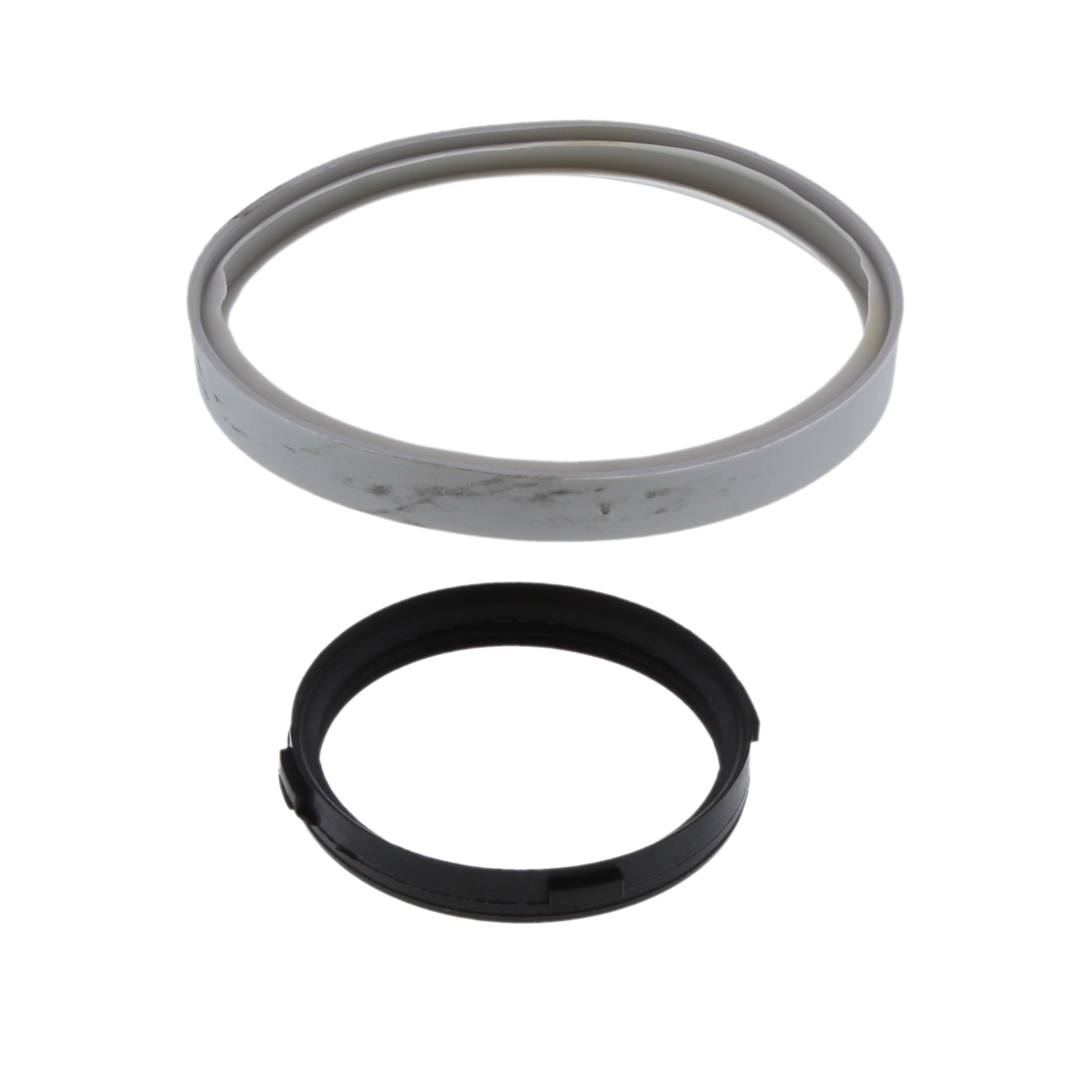

Ideal Turret Seals Kit 174153
Ideal 174153 turret seals kit for Classic HE boilers, supplied as a set of seals for the turret and heat exchanger connections.
At a glance
- Part type: Gaskets, o-rings, seals and washers
- Also known as 1179873
£23.30
£19.42 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 174153 Turret Seals Kit is a set of replacement seals for the turret assembly on Ideal Classic HE boilers. The turret sits at the top of the heat exchanger where the flue and water connections meet, and the seals within it prevent water and flue products escaping at those joints. Over time the seals harden, flatten or split, so the kit is fitted as part of a repair or service where the turret has been disturbed or is weeping.
Signs this part needs replacing
- Water weeping or dripping from around the turret or heat exchanger connections
- Staining, scale trails or corrosion marks below the turret area
- Seals that have hardened, flattened or cracked when the joint is opened
- A joint that will not seal again after the turret has been removed and refitted
- Gradual loss of system pressure with no other obvious source of leakage
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the boiler model
- Confirm the part number 174153 or the alternative number 1179873 before ordering
- Inspect the turret and its mating faces while the joint is open, as a seal kit alone will not correct a damaged or distorted seating face
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 174153 |
|---|---|
| Barcode / EAN | 5022141741531 |
| Commodity code | 4016 93 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1179873 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC HE 12 | 41-415-59 | 41-415-59 | — | — |
| IDEAL CLASSIC HE 15 | 41-421-45 | 41-421-45 | — | — |
| IDEAL CLASSIC HE 15P | 41-421-97 | 41-421-97 | — | — |
| IDEAL CLASSIC HE 18 | 41-421-46 | 41-421-46 | — | — |
| IDEAL CLASSIC HE 18P | 41-421-98 | 41-421-98 | — | — |
| IDEAL CLASSIC HE 9 | 41-415-58 | 41-415-58 | — | — |
| IDEAL ICOS HE30 | 41-399-10 | 41-399-10 | — | — |
| IDEAL ICOS HE36 | 41-399-16 | 41-399-16 | — | — |
| IDEAL MEXICO HE 15 | 41-429-39 | 41-429-39 | — | — |
| IDEAL MEXICO HE 18 | 41-429-65 | 41-429-65 | — | — |
Showing 10 of 18 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC HE 12 (GC 41-415-59), CLASSIC HE 15 (GC 41-421-45), CLASSIC HE 15P (GC 41-421-97), CLASSIC HE 18 (GC 41-421-46), CLASSIC HE 18P (GC 41-421-98), CLASSIC HE 9 (GC 41-415-58)
manualmanualIDEAL appliance manual — ICOS HE30 (GC 41-399-10), ICOS HE36 (GC 41-399-16)
manualmanualIDEAL appliance manual — MEXICO HE 15 (GC 41-429-39), MEXICO HE 18 (GC 41-429-65), MEXICO HE 24 (GC 41-429-98), MEXICO HE 30 (GC 41-429-99), MEXICO HE 36 (GC 41-415-20)
manualmanualIDEAL appliance manual — OPTIA HE 12 (GC 41-421-71), OPTIA HE 15 (GC 41-421-72), OPTIA HE 18 (GC 41-421-96), OPTIA HE 9 (GC 41-421-70)
