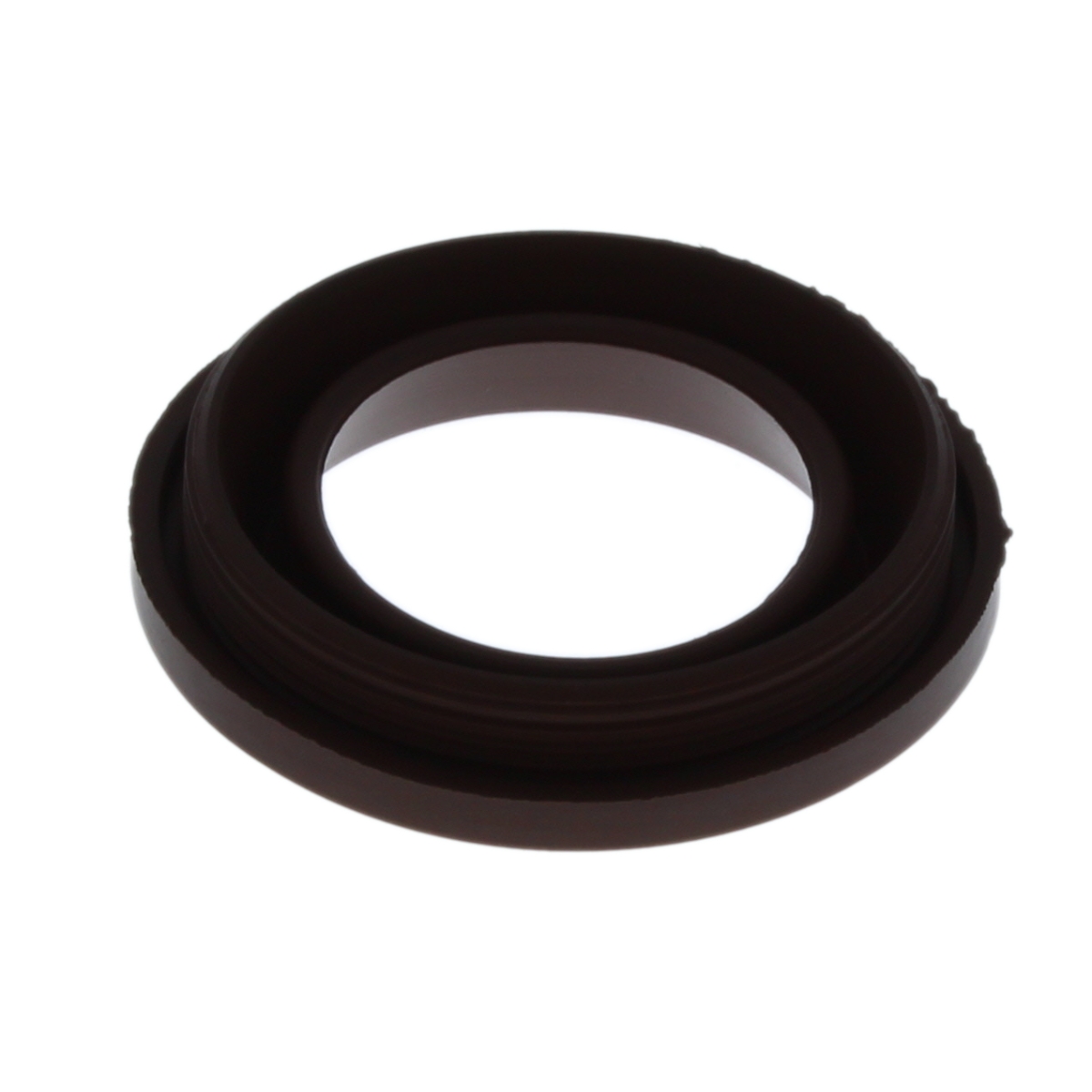

Ideal Fan Recuperator Seal Classic HE 174146
Ideal fan recuperator seal 174146 for the combustion chamber of Classic HE and Optia boilers, preventing leakage of water and flue gases.
At a glance
- Part type: Gaskets, O-rings, Seals & Washers
- Also known as 1179866
£24.30
£20.25 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal fan recuperator seal is a replacement sealing component for the combustion chamber area of Ideal Classic HE and Optia boilers. It sits at the recuperator, the section where heat is recovered from the flue path, and its job is to stop water and harmful gases escaping as they pass through the appliance. The seal is supplied as an Ideal Spares part under reference 174146.
Signs this part needs replacing
- Visible cracking, hardening or flattening of the seal when the combustion chamber is opened
- Soot staining or discolouration around the recuperator and adjacent casing
- Combustion readings that drift or fail to settle after servicing
- Traces of water or condensate weeping past the recuperator joint
- The seal breaking up or sticking to mating faces during strip-down
Before you order
- Confirm the boiler model and GC number against the compatibility list, as the same seal reference covers several Classic HE variants
- Check the existing seal against part number 174146 and the alternative reference 1179866 before ordering
- Inspect surrounding gaskets and seals while the combustion chamber is open, as they may need replacing at the same time
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 174146 |
|---|---|
| Barcode / EAN | 5022141741463 |
| Commodity code | 4016 93 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1179866 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC HE 12 | 41-415-59 | 41-415-59 | — | — |
| IDEAL CLASSIC HE 15 | 41-421-45 | 41-421-45 | — | — |
| IDEAL CLASSIC HE 15P | 41-421-97 | 41-421-97 | — | — |
| IDEAL CLASSIC HE 18 | 41-421-46 | 41-421-46 | — | — |
| IDEAL CLASSIC HE 18P | 41-421-98 | 41-421-98 | — | — |
| IDEAL CLASSIC HE 9 | 41-415-58 | 41-415-58 | — | — |
| IDEAL OPTIA HE 12 | 41-421-71 | 41-421-71 | — | — |
| IDEAL OPTIA HE 15 | 41-421-72 | 41-421-72 | — | — |
| IDEAL OPTIA HE 18 | 41-421-96 | 41-421-96 | — | — |
| IDEAL OPTIA HE 9 | 41-421-70 | 41-421-70 | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC HE 12 (GC 41-415-59), CLASSIC HE 15 (GC 41-421-45), CLASSIC HE 15P (GC 41-421-97), CLASSIC HE 18 (GC 41-421-46), CLASSIC HE 18P (GC 41-421-98), CLASSIC HE 9 (GC 41-415-58)
manualmanualIDEAL appliance manual — OPTIA HE 12 (GC 41-421-71), OPTIA HE 15 (GC 41-421-72), OPTIA HE 18 (GC 41-421-96), OPTIA HE 9 (GC 41-421-70)
