Ideal Heat Engine Kit Mex HE 15 18 24 174129

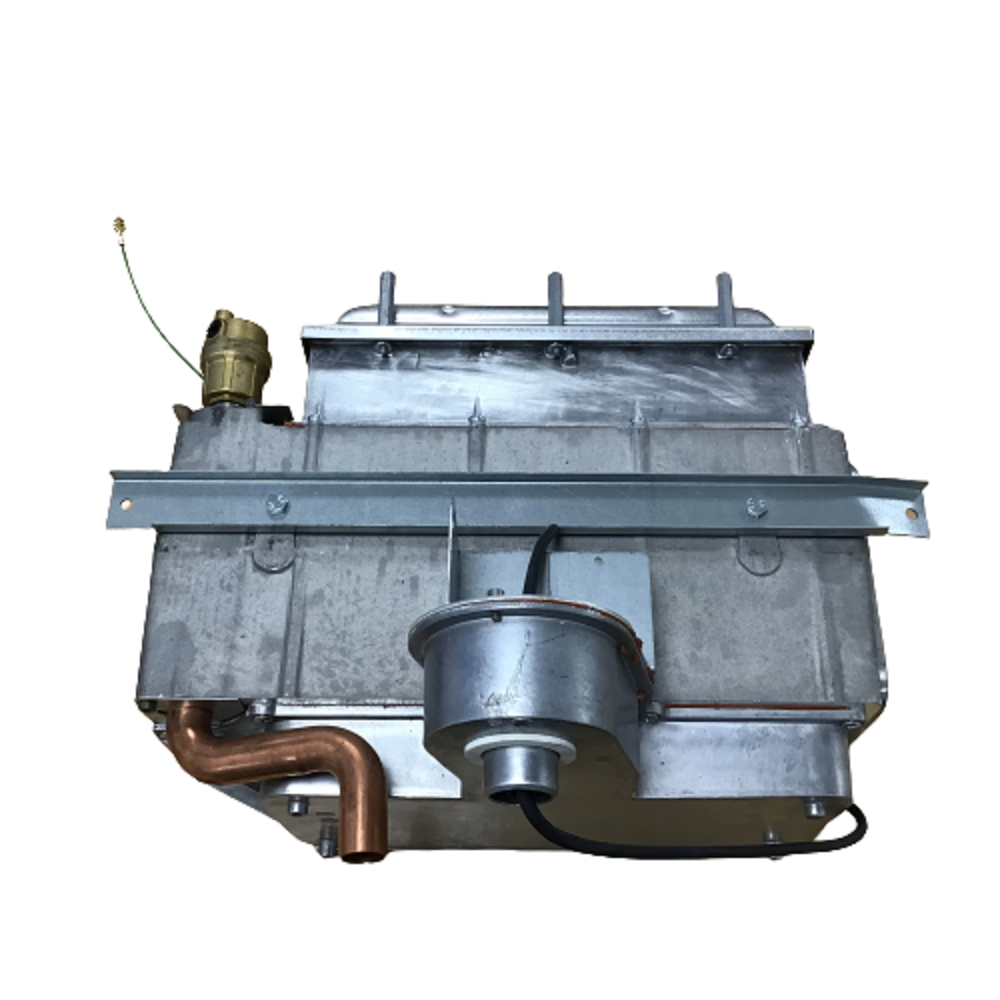

Ideal 174129 heat engine kit (heat exchanger assembly) for Mexico HE 15, HE 18 and HE 24 boilers. Alternative part number 1179852.
At a glance
- Part type: Heat engine kit (heat exchanger assembly)
- Appliance family: Mexico HE
- Also known as 1179852
£1,156.57
£963.81 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 174129 Heat Engine Kit is a replacement heat exchanger assembly for the Mexico HE range of domestic gas boilers. It transfers heat from the combustion gases into the system water that serves the radiators and the hot water circuit. The kit is produced by Ideal for the Mexico HE 15, HE 18 and HE 24 models.
Signs this part needs replacing
- Water weeping from the heat exchanger body or from its water connections
- Repeated boiler lockouts or ignition faults traced back to the heat exchanger
- Kettling, banging or rumbling noises while the boiler is firing
- Reduced heating or hot water output with the burner still running
- Visible corrosion, scale build-up or distortion across the exchanger surfaces
Before you order
- Confirm the GC number on the appliance data badge matches one of the numbers listed above.
- Check the boiler model and variant, as the Mexico HE 15, HE 18 and HE 24 are rated differently.
- Inspect the seals and gaskets on the combustion and water connections and renew them if they are perished or flattened.
Mechanical
| Part type | Heat engine kit |
|---|---|
| Appliance family | Mexico HE |
Compliance
| Manufacturer part number (MPN) | 174129 |
|---|---|
| GC number | 41-429-39, 41-429-65, 41-429-98 |
| Barcode / EAN | 5022141741296 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1179852 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : MEXICO HE15 | — | — | — | |
| IDEAL IDEAL : MEXICO HE18 | — | — | — | |
| IDEAL IDEAL : MEXICO HE24 | — | — | — | |
| IDEAL MEXICO HE 15 | 41-429-39 | 41-429-39 | — | — |
| IDEAL MEXICO HE 18 | 41-429-65 | 41-429-65 | — | — |
| IDEAL MEXICO HE 24 | 41-429-98 | 41-429-98 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
