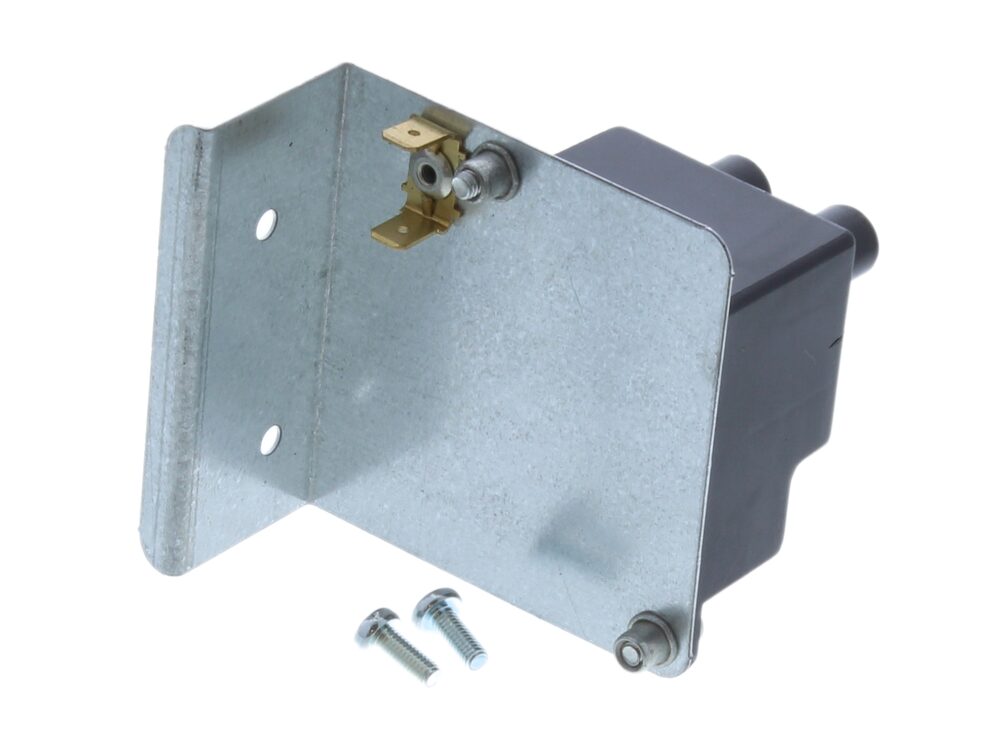

Ideal Spark Generator Assembly Mexico HE15 HE18 HE24 174094
Ideal 174094 piezo spark generator assembly for Mexico HE15, HE18 and HE24 boilers, igniting the burner on demand. Alternative number 1179822.
At a glance
- Part type: Piezo spark generator assembly
- Also known as 1179822
£75.50
£62.92 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 174094 is a piezo spark generator assembly used on Mexico HE series appliances. It produces the high-voltage spark that lights the burner when the boiler receives a call for heat, so the gas is ignited at the right moment in the start-up sequence. The assembly is listed by Ideal under the Ignitors & Spark Generators spare part category and is also referenced by the alternative number 1179822.
Signs this part needs replacing
- No spark at the burner electrode when the boiler is called to fire
- Boiler fails to light and goes to lockout on start-up
- Ignition clicking is absent, weak or irregular
- Appliance lights intermittently, then drops out during the ignition sequence
- Spark tracking or arcing visible around the generator body or lead
Before you order
- Confirm the GC number on the appliance data badge against the compatibility list, as Mexico HE15, HE18 and HE24 variants use different GC references
- Check the existing generator and lead routing before ordering, so the replacement matches the fitted assembly
- Note the alternative number 1179822 when cross-referencing against older documentation or stock records
Mechanical
| Part type | Ignitors & Spark Generators |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 174094 |
|---|---|
| Barcode / EAN | 5022141740947 |
| Commodity code | 8543 70 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1179822 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : MEXICO HE15 | — | — | — | |
| IDEAL IDEAL : MEXICO HE18 | — | — | — | |
| IDEAL IDEAL : MEXICO HE24 | — | — | — | |
| IDEAL MEXICO HE 15 | 41-429-39 | 41-429-39 | — | — |
| IDEAL MEXICO HE 18 | 41-429-65 | 41-429-65 | — | — |
| IDEAL MEXICO HE 24 | 41-429-98 | 41-429-98 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
