Ideal

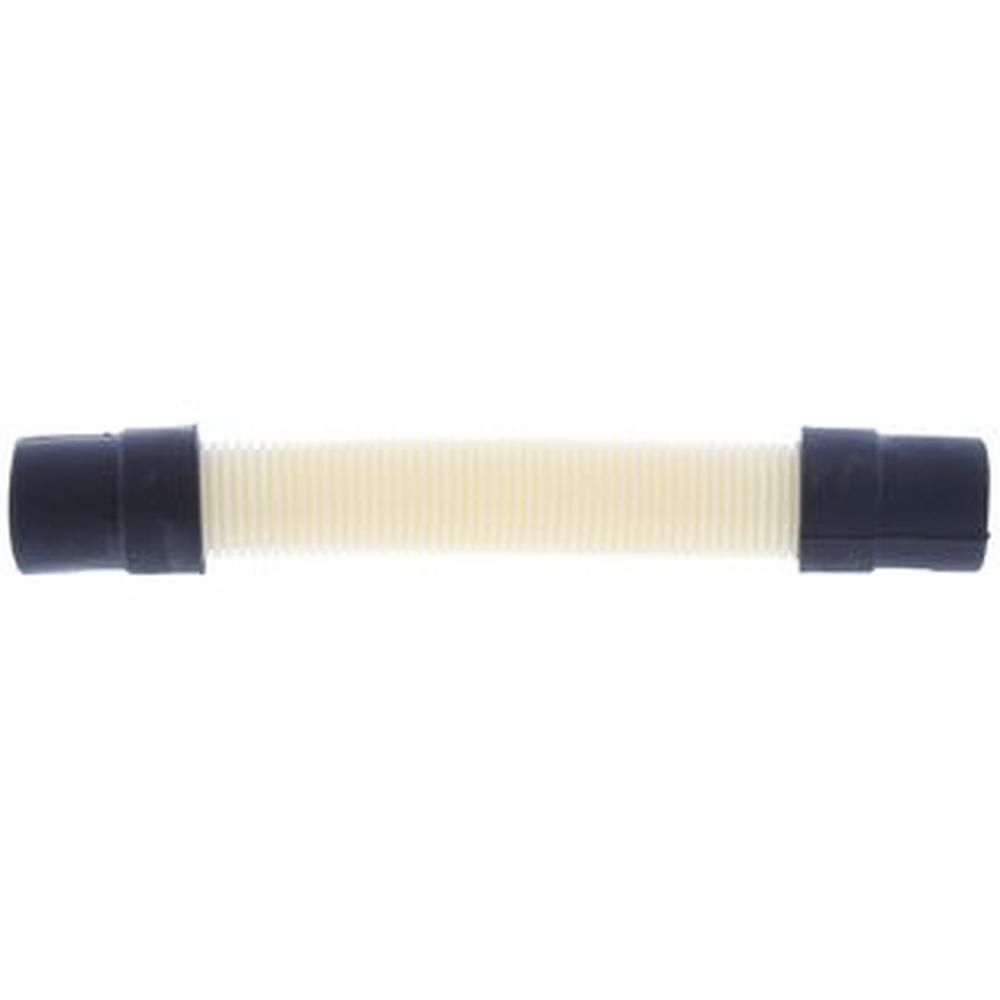

Ideal S Trap Hose Kit Mexico HE 174091
Replacement S trap hose kit for Ideal Mexico HE and Commercial Evomax appliances, part 174091, also listed as 1179819.
At a glance
- Part type: Pipes & Hoses
- Appliance family: Ideal Commercial Evomax
- Also known as 1179819
£17.64
£14.70 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal S Trap Hose Kit is a replacement pipe and hose assembly for Ideal heating appliances. It forms part of the condensate drainage route from the unit, carrying discharge away from the trap and helping hold the water seal that keeps flue gases inside the appliance. The kit is supplied under Ideal part number 174091 and is listed against the Mexico HE and Commercial Evomax families.
Signs this part needs replacing
- Water pooling or damp patches beneath the appliance around the trap area
- Visible splits, cracks or perishing on the hose wall
- Brittle or discoloured plastic at the trap connection points
- Persistent drain smell or gurgling from the trap
- Repeated condensate-related faults or lockouts on the appliance
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering.
- Confirm the alternative part number 1179819 matches your appliance listing.
- Inspect the trap body and any seals at the same time, as a leaking joint is not always caused by the hose alone.
Mechanical
| Part type | Pipes & Hoses |
|---|---|
| Appliance family | Ideal Commercial Evomax |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 174091 |
|---|---|
| Barcode / EAN | 5022141740916 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1179819 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ICOS HE30 | 41-399-10 | 41-399-10 | — | — |
| IDEAL ICOS HE36 | 41-399-16 | 41-399-16 | — | — |
| IDEAL MEXICO HE 15 | 41-429-39 | 41-429-39 | — | — |
| IDEAL MEXICO HE 18 | 41-429-65 | 41-429-65 | — | — |
| IDEAL MEXICO HE 24 | 41-429-98 | 41-429-98 | — | — |
| IDEAL MEXICO HE 30 | 41-429-99 | 41-429-99 | — | — |
| IDEAL MEXICO HE 36 | 41-415-20 | 41-415-20 | — | — |
| IDEAL COMMERCIAL EVOMAX 100 | 41-750-37A | 41-750-37A | — | — |
| IDEAL COMMERCIAL EVOMAX 120 | 41-750-38A | 41-750-38A | — | — |
| IDEAL COMMERCIAL EVOMAX 150 | 41-750-39A | 41-750-39A | — | — |
Showing 10 of 41 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — EVOMAX 100 (GC 41-750-37A), EVOMAX 120 (GC 41-750-38A), EVOMAX 150 (GC 41-750-39A), EVOMAX 30 (GC 41-750-33A), EVOMAX 30P (GC 41-750-40), EVOMAX 40 (GC 41-750-34A), EVOMAX 40P (GC 41-750-41), EVOMAX 60 (GC 41-750-35A), EVOMAX 60P (GC 41-750-42), EVOMAX 80 (GC 41-750-36A), EVOMAX 80P (GC 41-750-43)
manualmanualIDEAL COMMERCIAL appliance manual — EVOMAX 2 100KW LPG (GC 41-796-37), EVOMAX 2 100KW NG (GC 41-796-30), EVOMAX 2 120KW LPG (GC 41-796-38), EVOMAX 2 120KW NG (GC 41-796-31), EVOMAX 2 150KW NG (GC 41-796-32), EVOMAX 2 30KW LPG (GC 41-796-33), EVOMAX 2 30KW NG (GC 41-796-26), EVOMAX 2 40KW LPG (GC 41-796-34), EVOMAX 2 40KW NG (GC 41-796-27), EVOMAX 2 60KW LPG (GC 41-796-35), EVOMAX 2 60KW NG (GC 41-796-28), EVOMAX 2 80KW LPG (GC 41-796-36), EVOMAX 2 80KW NG (GC 41-796-29)
manualmanualIDEAL appliance manual — ICOS HE30 (GC 41-399-10), ICOS HE36 (GC 41-399-16)
manualmanualIDEAL appliance manual — MEXICO HE 15 (GC 41-429-39), MEXICO HE 18 (GC 41-429-65), MEXICO HE 24 (GC 41-429-98), MEXICO HE 30 (GC 41-429-99), MEXICO HE 36 (GC 41-415-20)
manualNo technical questions yet for this part.
