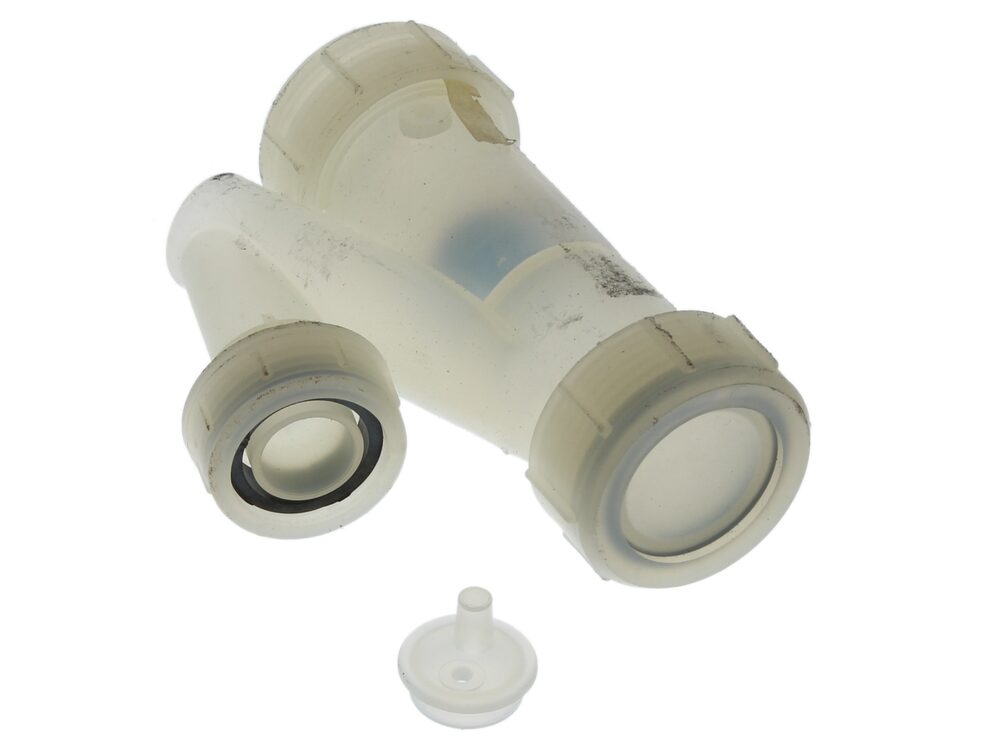

Ideal Condensate Trap Assembly S Trap Kit 174090

The Ideal 174090 is a condensate trap assembly supplied as an S trap kit for Ideal Mexico HE and Icos HE boilers. It collects the condensate that forms as flue gases cool inside the appliance and holds a water seal, so the trapped liquid can be discharged through the connected pipework without flue gases escaping back into the drain route. The trap is a serviceable component and is listed under Ideal's condensate traps and siphons range.

• Water pooling beneath the boiler or around the base of the trap
• Condensate overflowing or dripping from the trap body, cap or connections
• The boiler locking out or failing to fire because the condensate route is restricted
• Gurgling, bubbling or slurping noises from the trap while the boiler runs
• Cracks, split seams, or heavy scale and sludge visible inside the trap

• Match the GC number on the appliance data badge against the list above before ordering.
• Check the model and serial plate, as one part number covers several Mexico HE and Icos HE variants.
• Inspect the trap seals and washers once the old unit is removed and renew them if they are perished.
