Ideal Burner Earth Pin Kit 174086

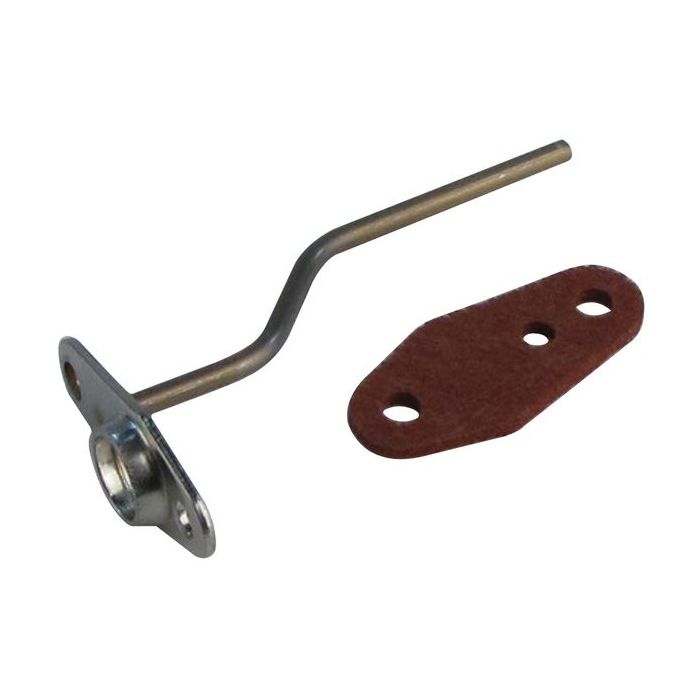

Ideal 174086 burner earth pin kit for ICOS HE and Mexico HE boilers, providing the burner earthing connection. Alternative number 1179814.
At a glance
- Part type: Wiring
- Also known as 1179814
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£12.12
£10.10 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 174086 is a burner earth pin kit manufactured by Ideal for use in its domestic and commercial gas boilers. It forms the earthing connection at the burner, giving a secure electrical path between the burner assembly and the appliance chassis so the burner is reliably earthed during operation. The kit is listed for the Ideal ICOS HE and Mexico HE appliance families.
Signs this part needs replacing
- The boiler fails to light, or ignition is intermittent and unreliable
- The burner earth pin or its connection shows corrosion, scorching or heat damage
- Continuity between the burner and the chassis reads open circuit or unusually high resistance
- Repeated lockouts or flame-detection faults appear during a service visit
- The pin or its fixing is visibly loose, bent or broken when the burner is inspected
Before you order
- Confirm the appliance model and GC number against the compatibility list before ordering
- Inspect the existing earth pin and its lead for damage so any related wiring can be replaced at the same time
- Isolate the electrical supply and the gas supply before dismantling any part of the burner assembly
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Wiring |
|---|
Compliance
| Manufacturer part number (MPN) | 174086 |
|---|---|
| Barcode / EAN | 5022141740862 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1179814 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ICOS HE30 | 41-399-10 | 41-399-10 | — | — |
| IDEAL ICOS HE36 | 41-399-16 | 41-399-16 | — | — |
| IDEAL MEXICO HE 30 | 41-429-99 | 41-429-99 | — | — |
| IDEAL MEXICO HE 36 | 41-415-20 | 41-415-20 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
