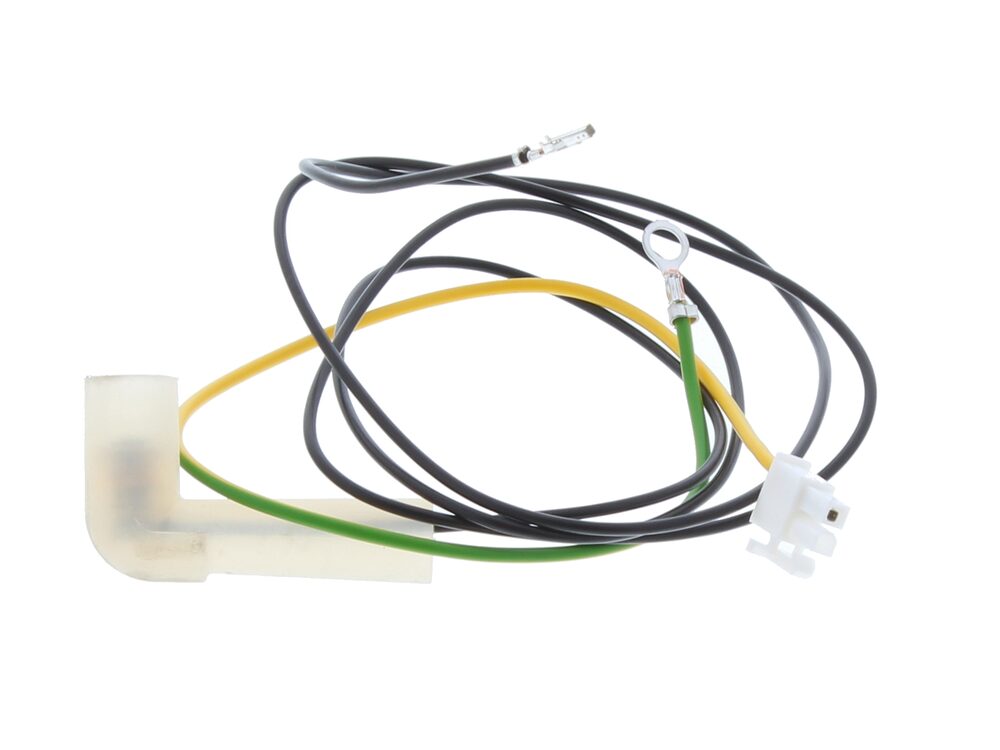

Ideal Detection Lead HE 30 to 36 174083
Ideal Mex HE 30 to 36 detection lead (174083) linking the PCB to thermostats, sensors and switches in Mexico HE30 and HE36 appliances.
At a glance
- Part type: HT leads / detection lead
- Also known as 1179812
£31.46
£26.22 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal Mex HE 30 to 36 detection lead is a wiring harness used inside Ideal Mexico HE appliances. It carries the detection circuit between the printed circuit board and the thermostats, sensors and switches that the board monitors. Through this group of wires the PCB reads the appliance's operating conditions and triggers its safety protocols.
Signs this part needs replacing
- The appliance locks out or fails to detect flame during the ignition sequence
- Intermittent faults that clear when the harness or its connectors are disturbed
- Cracked, brittle or heat-damaged insulation on the lead
- Corroded or loose terminals at the PCB or sensor end
- Repeated error codes traced to a sensor or thermostat circuit rather than the sensor itself
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct lead
- Confirm the model is a Mexico HE30 or HE36 variant, as the harness routing differs between appliance families
- Note the alternative number 1179812 when cross-referencing older documentation or stock records
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 174083 |
|---|---|
| Barcode / EAN | 5022141740831 |
| Commodity code | 8544 42 90 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1179812 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : MEXICO HE30 | — | — | — | |
| IDEAL IDEAL : MEXICO HE36 | — | — | — | |
| IDEAL MEXICO HE 30 | 41-429-99 | 41-429-99 | — | — |
| IDEAL MEXICO HE 36 | 41-415-20 | 41-415-20 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
