Ideal User Controls Kit Evo HE C 173671

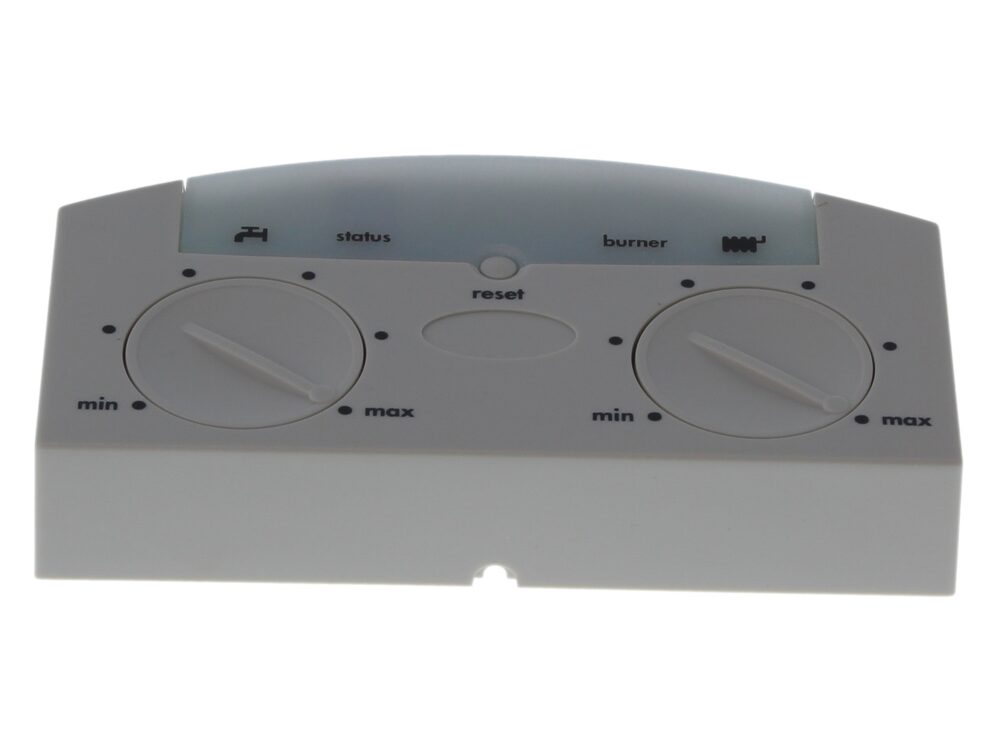

Ideal 173671 User Controls Kit for Evo HE C22/24, C22/30 and C22/35 boilers, a printed circuit board control assembly.
At a glance
- Part type: Printed circuit board / user controls kit
- Also known as 1179593
£138.17
£115.14 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 173671 User Controls Kit is a printed circuit board assembly that carries the user control interface for the Evo HE C range. It sits within the boiler's control box and handles the signals between the front panel controls and the appliance's main electronics, so demand selection and status indication behave as intended. Ideal supplies it as a serviceable control component for the Evo HE C family.
Signs this part needs replacing
- The boiler does not respond when the user controls are operated
- Buttons or the control interface stop registering input
- Intermittent operation that traces back to the control board rather than the thermostat or sensor
- Fault codes or lockouts that persist after the usual resets
- Visible damage, moisture ingress or scorching on the control board
Before you order
- Confirm the appliance model and GC number against the compatibility list, as the Evo HE C variants use different GC references
- Check the existing board's part number and any alternative number printed on it before ordering
- Inspect the control box housing and any seals or gaskets while the appliance is open, and replace them if they are perished
- Work inside the appliance casing should be carried out by a competent engineer
Mechanical
| Part type | Control Box, Panels & Accessories |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 173671 |
|---|---|
| GC number | H13-713 |
| Barcode / EAN | 5022141736711 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Heating System Controls |
| Alternative numbers | 1179593 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL IDEAL : EVO HE C22/24 | — | — | — | |
| IDEAL IDEAL : EVO HE C22/30 | — | — | — | |
| IDEAL IDEAL : EVO HE C22/35 | — | — | — | |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
