Ideal 173628 Honeywell VC6012-34 Divertor Valve Actuator Head Kit
At a glance
- Part type: Diverter valve and hydraulic components
- Also known as 1179571, IDEAL173628
£160.92
£134.10 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

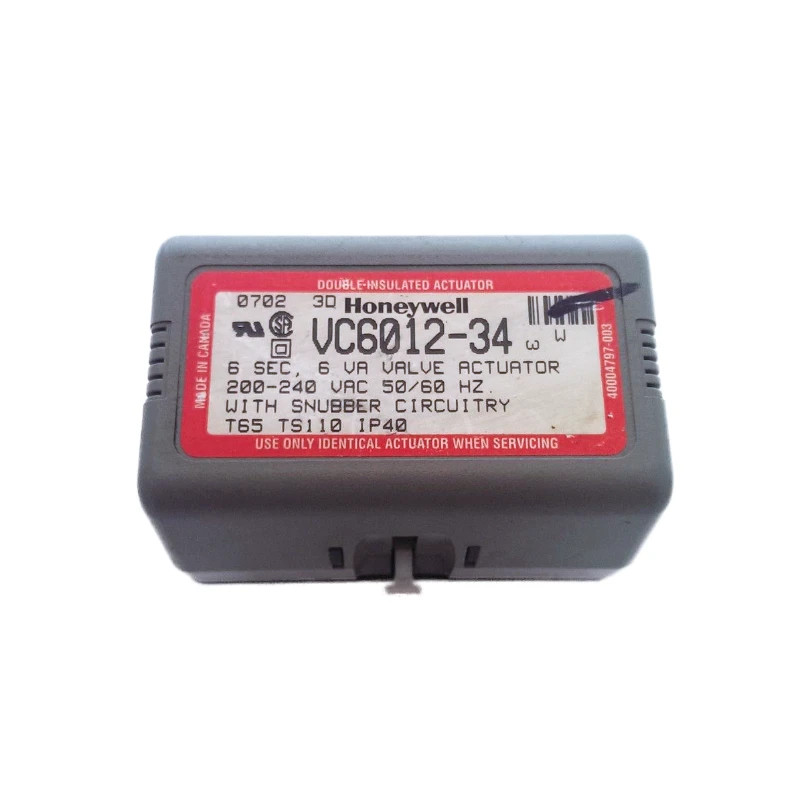

The Ideal 173628 is a diverter valve head kit for Ideal domestic gas boilers. It consists of the motorised head that mounts on top of the diverter valve body, supplied here as a Honeywell VC6012 grey head. The head drives the valve spindle so the boiler can switch the flow between central heating and domestic hot water as demand changes. It is listed under Ideal's diverter valve and hydraulic components group.
Signs this part needs replacing
- No hot water while the heating continues to run normally
- Radiators heating up when only hot water is drawn
- The valve head buzzing, clicking repeatedly or failing to move through its full travel
- Boiler locking out or displaying a fault code linked to the diverter valve
- Water leaking from around the head or the valve spindle beneath it
Before you order
- Confirm your boiler model and GC number against the compatibility list before ordering
- Check that the existing head is a Honeywell VC6012 grey head, as the mounting and wiring differ between head types
- Inspect the valve body and spindle while the head is off; a worn body or damaged seals will not be cured by a new head alone
Mechanical
| Part type | Diverter Valve & Hydraulic Components |
|---|
Compliance
| Manufacturer part number (MPN) | IDEAL173628 |
|---|---|
| GC number | H09-846 |
| Commodity code | 8481 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | IDEAL173628, 1179571 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL IDEAL : EVO HE C22/24 | — | — | — | |
| IDEAL IDEAL : EVO HE C22/30 | — | — | — | |
| IDEAL IDEAL : EVO HE C22/35 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE24 | — | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — ISAR M30100 (GC 47-348-15)
