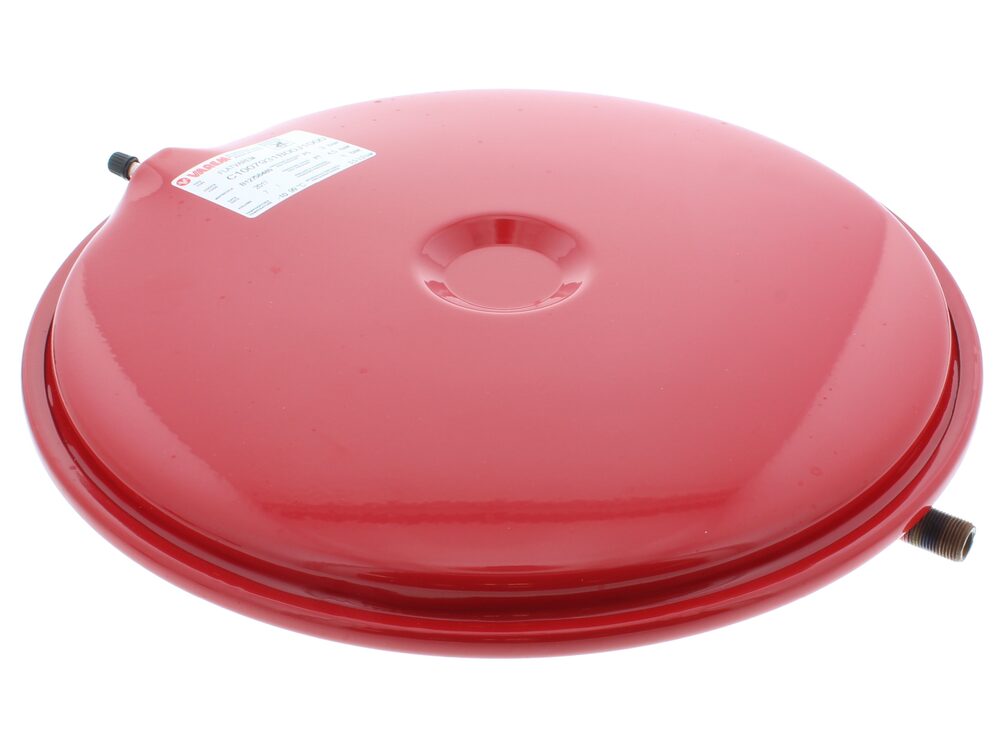

Ideal Expansion Vessel 7 Litre 173625
Ideal 173625 7 litre expansion vessel for Europa 232, Mini C32 and Mini HE C32 boilers, absorbing pressure surges in the sealed heating circuit.
At a glance
- Part type: Expansion vessel
- Also known as 1179568
£124.96
£104.13 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 173625 is a 7 litre expansion vessel used on Ideal domestic and commercial boilers. It is a sealed tank divided by a diaphragm, with a charge of air on one side and system water on the other. As the water in a sealed heating circuit heats and expands, the air cushion compresses to absorb the extra volume, keeping system pressure within safe limits and protecting the boiler and its components from pressure surges.
Signs this part needs replacing
- System pressure climbs sharply or repeatedly once the boiler is up to temperature
- Water discharges from the pressure relief valve during normal heating cycles
- Water appears at the air valve on the vessel, or no air pressure can be held when the charge is checked
- Boiler pressure falls soon after topping up, or a low pressure fault recurs
- Corrosion, scale or water staining around the vessel connection or mounting bracket
Before you order
- Check the GC number on the appliance data badge against the list above before ordering, as the Europa 232 and Mini C32 variants carry different GC numbers
- Confirm the boiler model and, where relevant, the serial number so the correct vessel is supplied
- Have a suitable seal or gasket to hand for the vessel connection, as the existing one may be disturbed during removal
Mechanical
| Part type | Expansion vessel |
|---|
Compliance
| Manufacturer part number (MPN) | 173625 |
|---|---|
| GC number | 47-348-41 |
| Barcode / EAN | 5022141736254 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1179568 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL EUROPA 232 | 47-348-28 | 47-348-28 | — | — |
| IDEAL IDEAL : EUROPA 232 | — | — | — | |
| IDEAL IDEAL : MINI C32 | — | — | — | |
| IDEAL MINI C32 | 47-348-25 | 47-348-25 | — | — |
| IDEAL MINI HE C32 | 47-348-41 | 47-348-41 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
