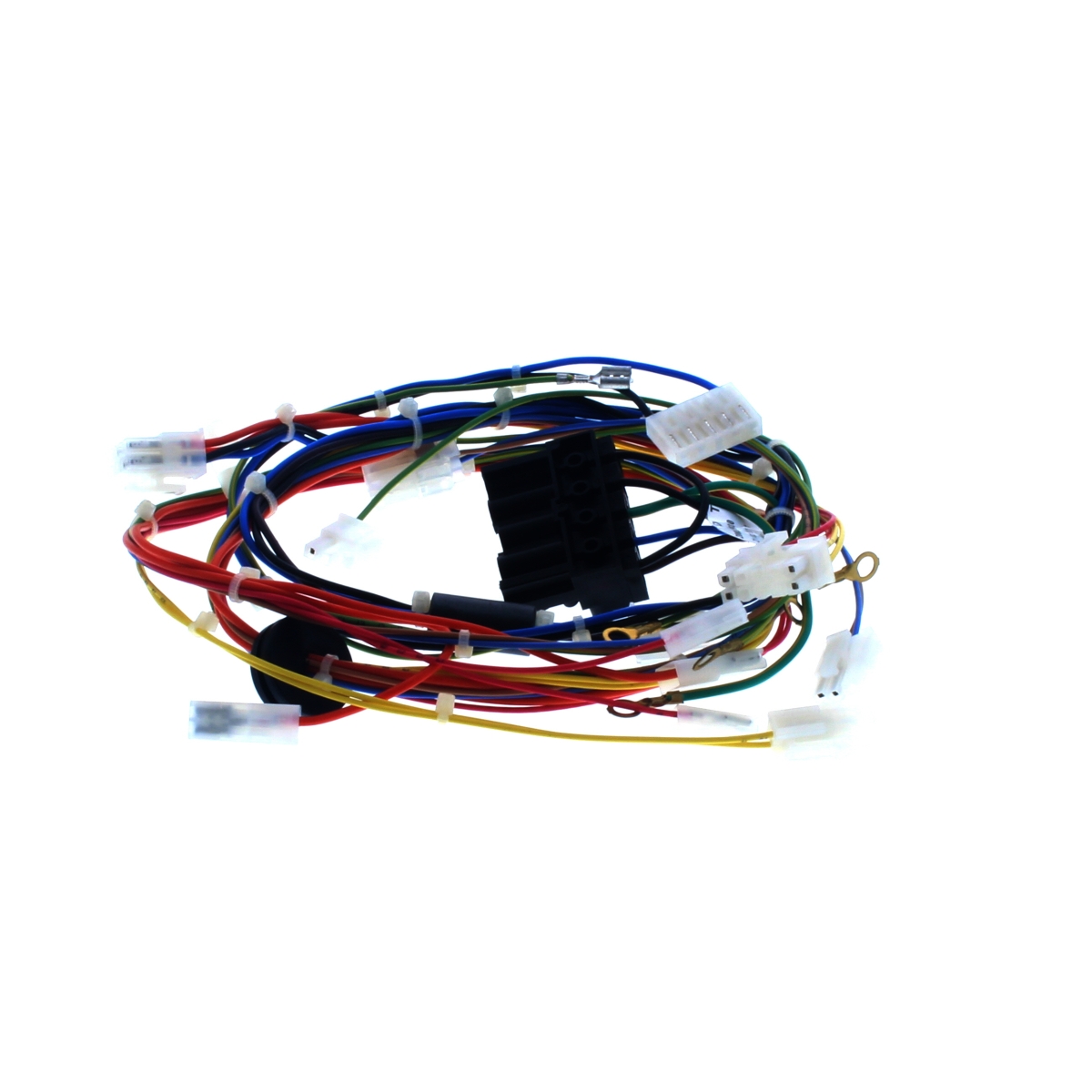

Ideal Warning Harness ICOS HE 173551
Ideal warning harness (173551) for ICOS HE boilers, connecting PCB to thermostats, switches and sensors.
At a glance
- Part type: Wiring harness
- Also known as 1179534
£80.53
£67.11 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal Warning Harness (part number 173551) is a wiring loom designed for Ideal ICOS HE boilers. It connects the printed circuit board (PCB) to the various thermostats, switches and sensors within the appliance, allowing the PCB to control the appliance and make safety checks. This harness is an essential electrical link that ensures reliable communication between the boiler's control system and its safety devices, contributing to safe and efficient operation.
Signs this part needs replacing
- Intermittent boiler operation, including unexpected shutdowns or lockouts that may not be resolved by resetting
- Error codes relating to sensor or communication faults on the boiler's display
- Boiler not responding to thermostat or control inputs, or inconsistent heating
- Visible damage, corrosion or loose connections on the wiring harness
- Overheating or burning smell from the wiring area, indicating electrical stress
Before you order
- Check your appliance model and GC number against the compatibility list to ensure correct fitment.
- Confirm the part number 173551 matches the existing harness in your boiler.
- Verify the alternative part number 1179534 if your existing harness carries that code.
- Ensure the boiler is isolated from the electrical supply before fitting.
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 173551 |
|---|---|
| GC number | H07-787 |
| Barcode / EAN | 5022141735516 |
| Commodity code | 8544 42 90 00 |
| Alternative numbers | 1179534 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ELISE HE15 | 41-399-97 | 41-399-97 | — | — |
| IDEAL ELISE HE24 | 41-399-98 | 41-399-98 | — | — |
| IDEAL EVO HE H12 | 41-397-96 | 41-397-96 | — | — |
| IDEAL EVO HE H16 | 41-397-86 | 41-397-86 | — | — |
| IDEAL EVO HE H19 | 41-397-93 | 41-397-93 | — | — |
| IDEAL EVO HE H22 | 41-397-94 | 41-397-94 | — | — |
| IDEAL ICOS HE12 | 41-397-95 | 41-397-95 | — | — |
| IDEAL ICOS HE15 | 41-397-83 | 41-397-83 | — | — |
| IDEAL ICOS HE18 | 41-397-84 | 41-397-84 | — | — |
| IDEAL ICOS HE24 | 41-397-85 | 41-397-85 | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ELISE HE15 (GC 41-399-97), ELISE HE24 (GC 41-399-98)
manualmanualIDEAL appliance manual — EVO HE H12 (GC 41-397-96), EVO HE H16 (GC 41-397-86), EVO HE H19 (GC 41-397-93), EVO HE H22 (GC 41-397-94)
manualmanualIDEAL appliance manual — ICOS HE12 (GC 41-397-95), ICOS HE15 (GC 41-397-83), ICOS HE18 (GC 41-397-84), ICOS HE24 (GC 41-397-85)
manualNo technical questions yet for this part.
