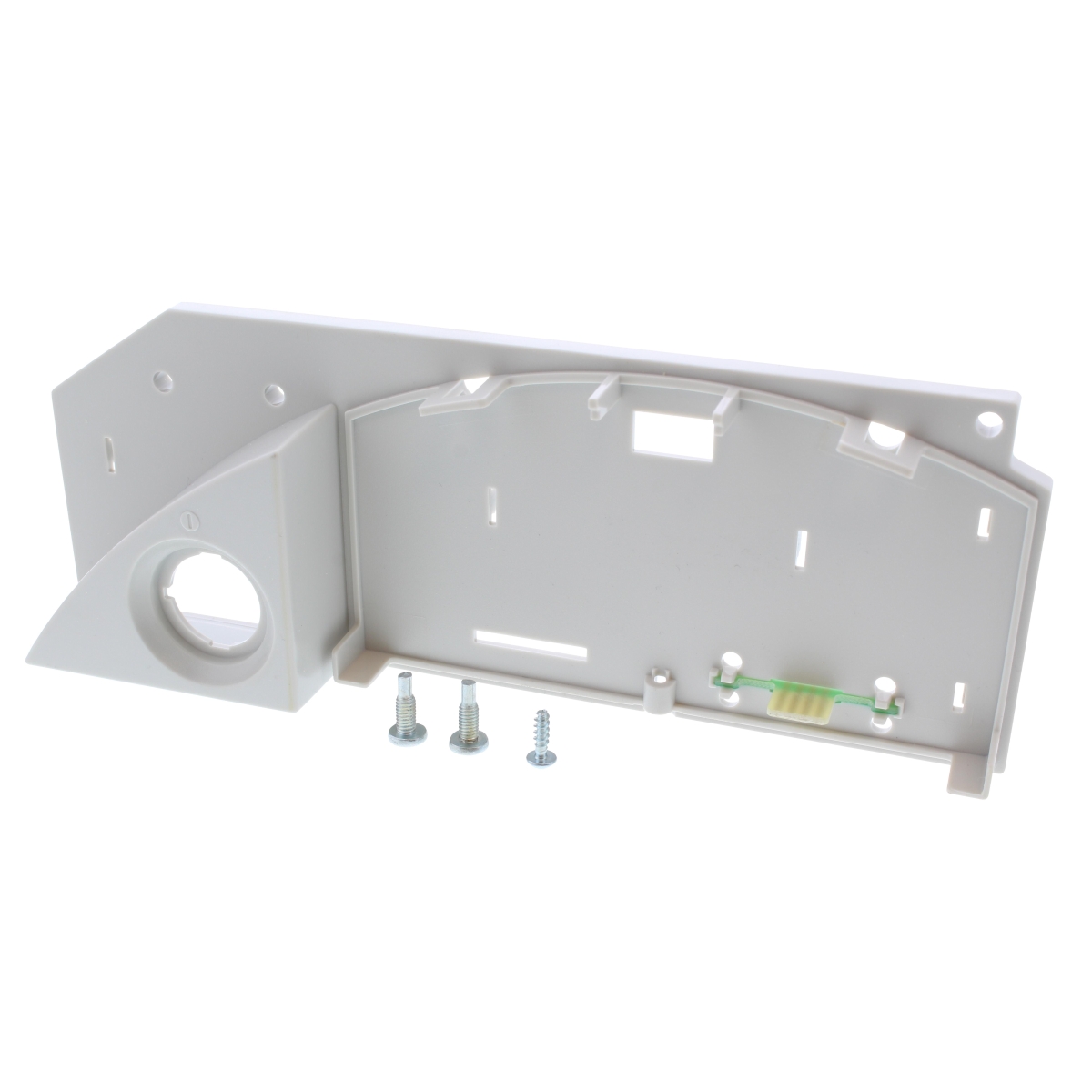

Ideal User Control Housing Kit 173536
Ideal 173536 user control housing kit for Esprit 2 and Evo HE boilers, forming the control panel section with knobs and display.
At a glance
- Part type: control box / user control housing kit
- Appliance family: Ideal Esprit 2 and Evo HE
- Also known as 1179522
£48.25
£40.21 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 173536 is a user control housing kit for Ideal domestic boilers. It is built around the control panel section of the appliance, which is the user interface where the control knobs and digital display sit, allowing settings to be adjusted. The kit is supplied by Ideal for service and repair of the control area.
Signs this part needs replacing
- Control knobs feel loose, stiff or fail to register a change in setting
- Digital display is blank, flickering or showing unreadable segments
- Cracks or damage to the control housing around the panel
- Boiler does not respond when settings are adjusted at the panel
- Buttons or dials require repeated pressing before the boiler reacts
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant
- Confirm the boiler model and, where relevant, the serial number before ordering
- Note the alternative number 1179522 when cross-referencing older documentation
Mechanical
| Part type | User Control Housing Kit |
|---|
Compliance
| Manufacturer part number (MPN) | 173536 |
|---|---|
| GC number | H07-776 |
| Barcode / EAN | 5022141735363 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1179522 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL ICOS SYSTEM HE15 | 41-421-99 | 41-421-99 | — | — |
| IDEAL ICOS SYSTEM HE24 | 41-397-82 | 41-397-82 | — | — |
| IDEAL IDEAL : ISAR + PROGRAMMER HE24 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE30 | — | — | — |
Showing 10 of 20 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE15 (GC 41-421-99)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE24 (GC 41-397-82)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — ISTOR HE260 (GC 41-394-13), ISTOR HE325 (GC 41-394-14)
manualNo technical questions yet for this part.
