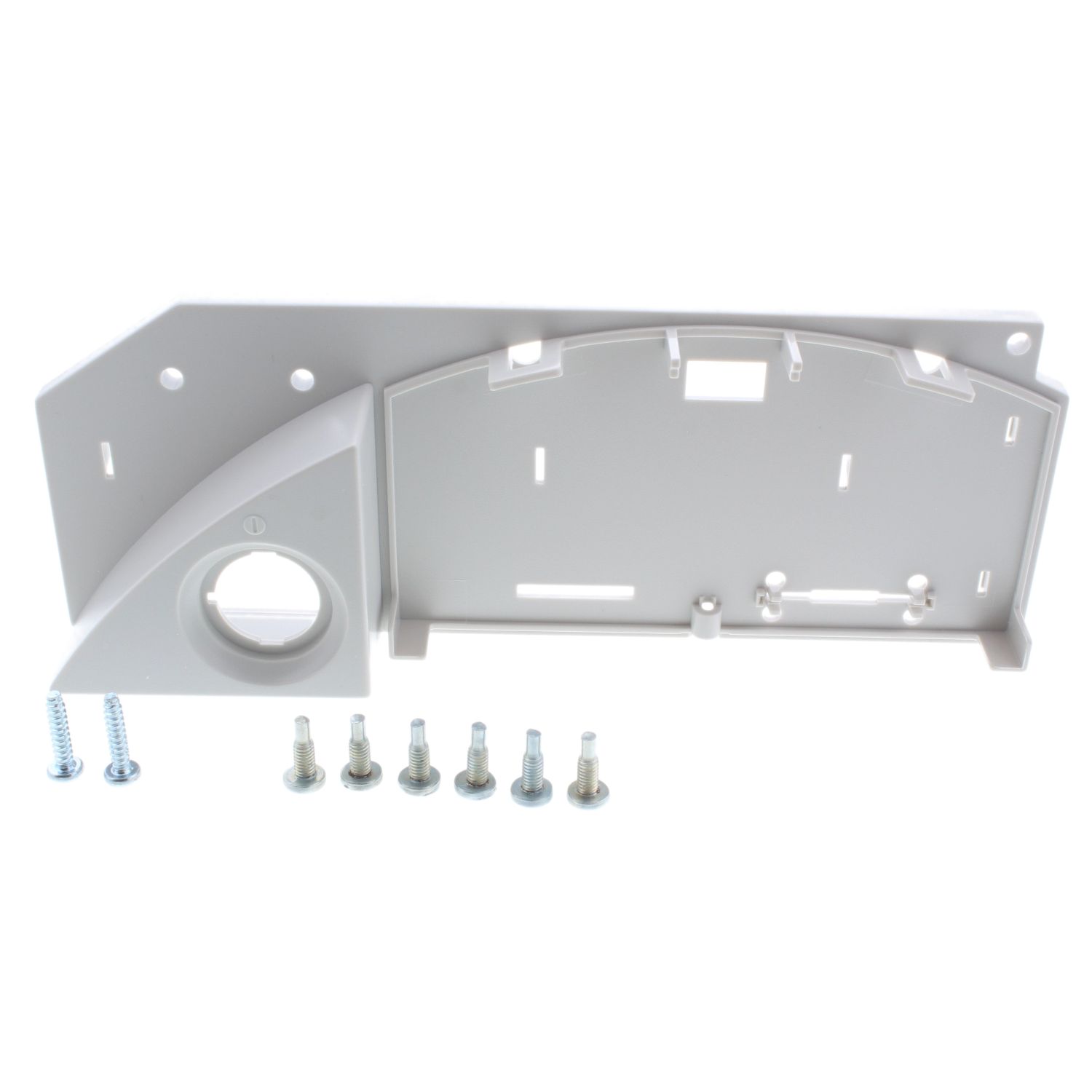

Ideal User Control Housing Kit Icos HE 173535
Ideal user control housing kit 173535 for Icos HE and compatible Ideal boilers, forming the control panel interface with display and controls.
At a glance
- Part type: Control box / user control housing kit
- Also known as 1179521
£39.55
£32.96 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The user control housing kit is the control panel assembly for Ideal domestic boilers, built around the section the user interacts with directly. It carries the display and control knobs that set the boiler mode and manage the appliance's operating settings. Ideal supplies this kit under part number 173535 for the Icos HE range and a number of related Ideal models.
Signs this part needs replacing
- The display is blank, dim or showing incomplete segments
- Control knobs or buttons do not respond when pressed or turned
- The boiler will not switch between heating, hot water and combined modes
- Settings change on their own or revert after the appliance is powered down
- Intermittent control faults that clear and return without any other cause
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the kit suits your model
- Compare the part number on the existing control panel with 173535, and check the alternative and previous numbers if the boiler has been worked on before
- Inspect the panel surround and any seals during removal, as these are disturbed when the housing is taken off
Mechanical
| Part type | Control box |
|---|
Compliance
| Manufacturer part number (MPN) | 173535 |
|---|---|
| Barcode / EAN | 5022141735356 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 170932, 1179521 |
| Previous numbers | 170932 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC M 3050 | 41-391-50 | 41-391-50 | — | — |
| IDEAL CLASSIC M 5080 | 41-391-51 | 41-391-51 | — | — |
| IDEAL ELISE HE15 | 41-399-97 | 41-399-97 | — | — |
| IDEAL ELISE HE24 | 41-399-98 | 41-399-98 | — | — |
| IDEAL EVO HE H12 | 41-397-96 | 41-397-96 | — | — |
| IDEAL EVO HE H16 | 41-397-86 | 41-397-86 | — | — |
| IDEAL EVO HE H19 | 41-397-93 | 41-397-93 | — | — |
| IDEAL EVO HE H22 | 41-397-94 | 41-397-94 | — | — |
| IDEAL ICOS HE12 | 41-397-95 | 41-397-95 | — | — |
| IDEAL ICOS HE15 | 41-397-83 | 41-397-83 | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC M 3050 (GC 41-391-50), CLASSIC M 5080 (GC 41-391-51)
manualmanualIDEAL appliance manual — ELISE HE15 (GC 41-399-97), ELISE HE24 (GC 41-399-98)
manualmanualIDEAL appliance manual — EVO HE H12 (GC 41-397-96), EVO HE H16 (GC 41-397-86), EVO HE H19 (GC 41-397-93), EVO HE H22 (GC 41-397-94)
manualmanualIDEAL appliance manual — ICOS HE12 (GC 41-397-95), ICOS HE15 (GC 41-397-83), ICOS HE18 (GC 41-397-84), ICOS HE24 (GC 41-397-85)
manualmanualIDEAL appliance manual — ICOS HE30 (GC 41-399-10), ICOS HE36 (GC 41-399-16)
manualmanualIDEAL appliance manual — ICOS M3080 (GC 41-391-49)
manualmanualIDEAL appliance manual — MEXICO HE 15 (GC 41-429-39), MEXICO HE 18 (GC 41-429-65), MEXICO HE 24 (GC 41-429-98), MEXICO HE 30 (GC 41-429-99), MEXICO HE 36 (GC 41-415-20)
