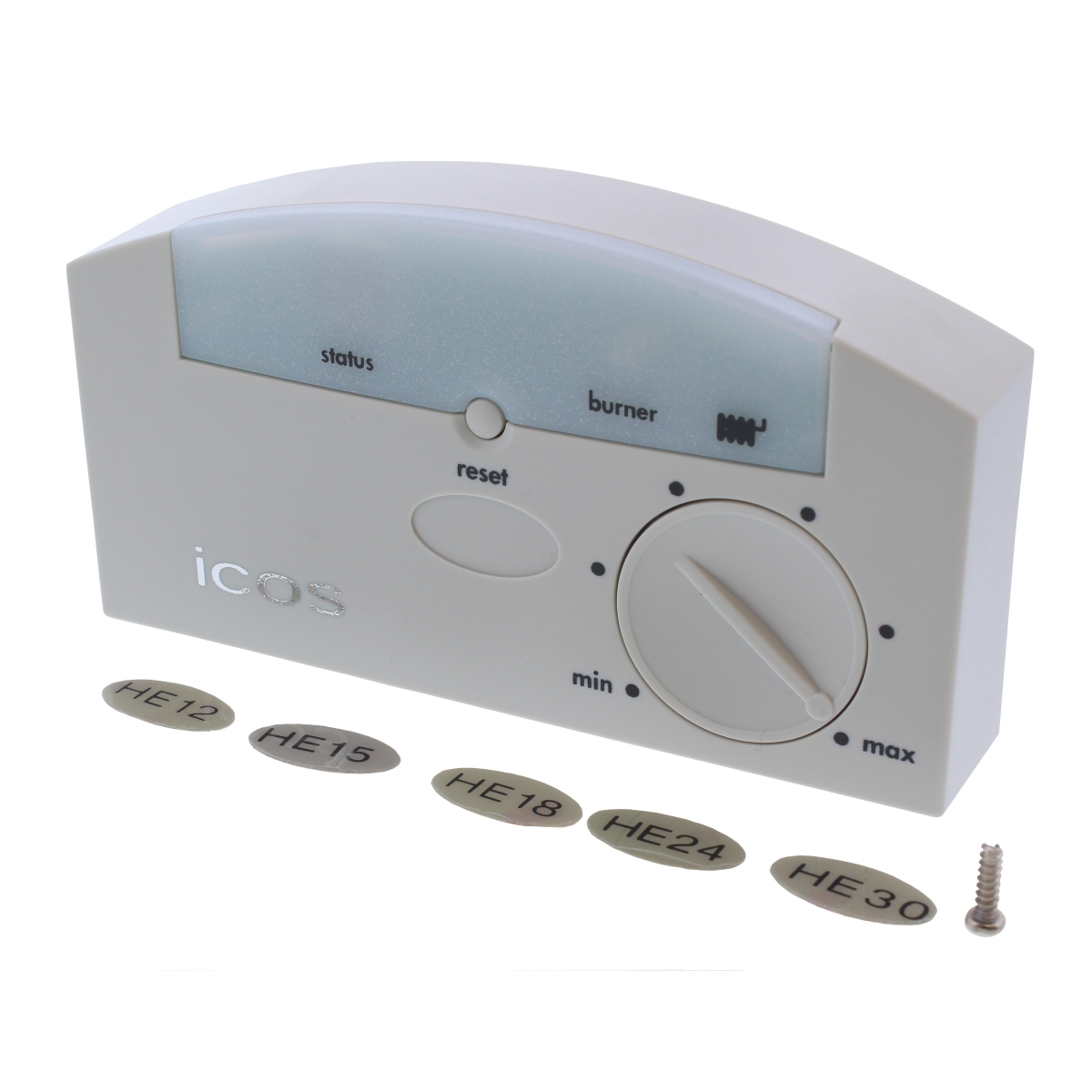

Ideal 173532 User Control Kit
Ideal 173532 User Control Kit — the control panel and user interface assembly for Ideal heating appliances, carrying the mode and temperature controls.
At a glance
- Part type: Heating, Cooling & Air — standard water heaters (260504)
- Also known as 5022141735257, IDEAL173532, 262456305233, 43375580, 1179518 +1 more
£139.88
£116.57 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 173532 User Control Kit is the user interface assembly for an Ideal heating appliance. It carries the controls the user operates directly — the mode selector, temperature adjustment and the display that reports the appliance's status. It is the section of the casing through which the boiler is switched between heating and hot water operation and through which settings are changed.
Signs this part needs replacing
- The display is blank, dim or shows incomplete segments while the appliance still runs.
- Buttons or knobs do not respond, or the appliance will not change between heating and hot water modes.
- The appliance remains locked in one mode regardless of the setting selected.
- Fault codes appear that trace back to the control interface rather than to the ignition or water circuit.
- Physical damage to the panel, cracked fascia or moisture ingress behind the controls.
Before you order
- Confirm the part number on the existing control panel or in the appliance's service documentation matches IDEAL173532.
- Check the appliance model and, where available, the GC number against the compatibility list before purchase.
- Inspect the panel surround and any sealing gasket on removal, as these are often disturbed during replacement.
- Work on the appliance casing and controls should be carried out by a competent person; isolate the electrical supply before removing the panel.
Mechanical
| Part type | Heating, Cooling & Air > Standard water heaters (260504) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | IDEAL173532 |
|---|---|
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5022141735257, IDEAL173532, 262456305233, 43375580, 1179518, N1204 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ELISE HE15 | 41-399-97 | 41-399-97 | — | — |
| IDEAL ELISE HE24 | 41-399-98 | 41-399-98 | — | — |
| IDEAL ICOS HE12 | 41-397-95 | 41-397-95 | — | — |
| IDEAL ICOS HE15 | 41-397-83 | 41-397-83 | — | — |
| IDEAL ICOS HE18 | 41-397-84 | 41-397-84 | — | — |
| IDEAL ICOS HE24 | 41-397-85 | 41-397-85 | — | — |
| IDEAL ICOS SYSTEM HE15 | 41-421-99 | 41-421-99 | — | — |
| IDEAL ICOS SYSTEM HE24 | 41-397-82 | 41-397-82 | — | — |
| IDEAL IDEAL : ICOS HE12 | — | — | — | |
| IDEAL IDEAL : ICOS HE15 | — | — | — |
Showing 10 of 14 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ELISE HE15 (GC 41-399-97), ELISE HE24 (GC 41-399-98)
manualmanualIDEAL appliance manual — ICOS HE12 (GC 41-397-95), ICOS HE15 (GC 41-397-83), ICOS HE18 (GC 41-397-84), ICOS HE24 (GC 41-397-85)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE15 (GC 41-421-99)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE24 (GC 41-397-82)
manualNo technical questions yet for this part.
