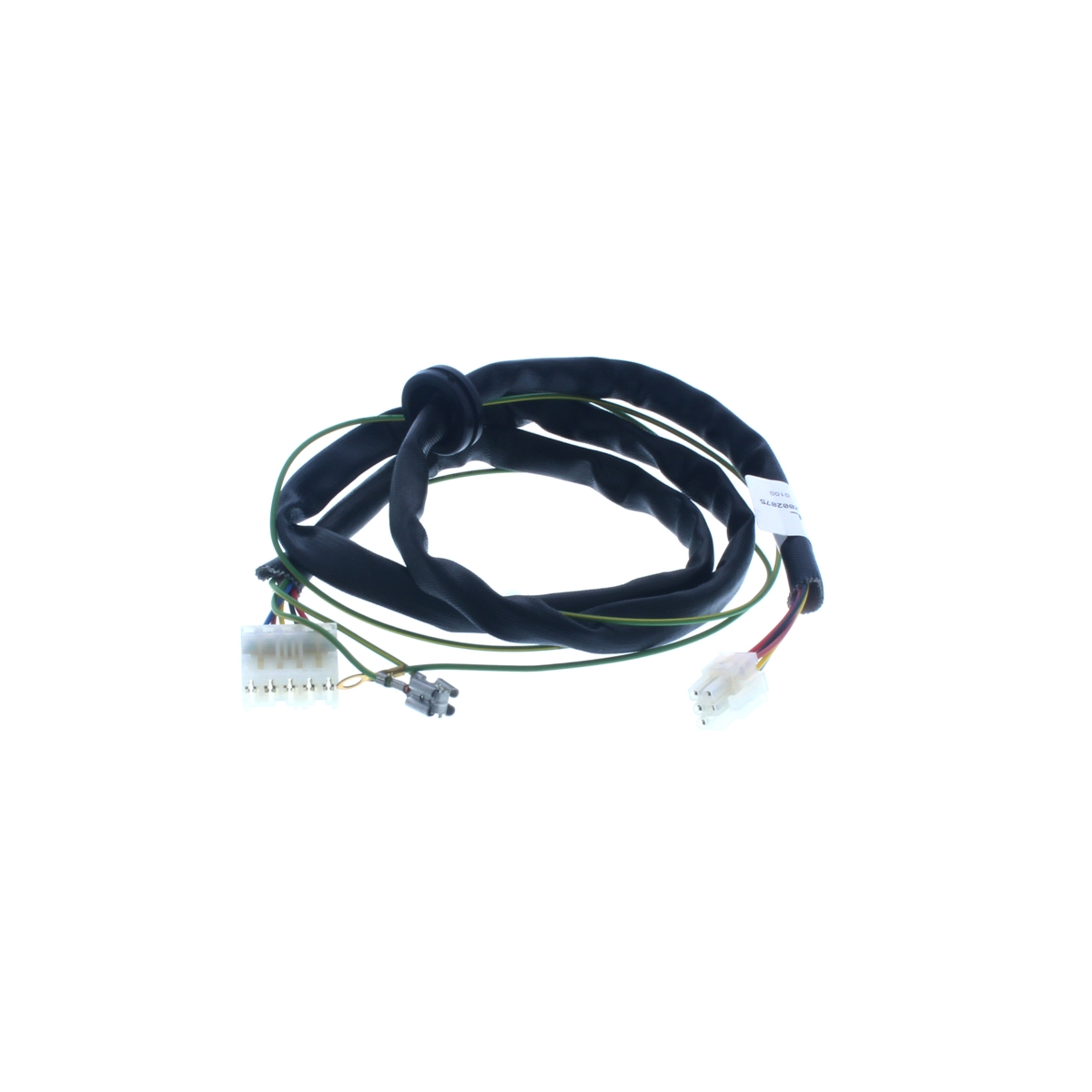

Ideal Fan Wiring Harness 173530
Ideal 173530 fan wiring harness for Elise HE and Evo HE gas boilers, connecting the fan to the boiler control circuit.
At a glance
- Part type: wiring harness (fan)
- Also known as 1179516
£68.48
£57.07 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 173530 is a fan wiring harness supplied by Ideal for use in its domestic gas boiler range. It is the loom that carries power and control signals between the combustion fan and the boiler's main PCB, so the fan runs at the speed the board demands and the appliance can prove airflow before ignition.
Because the harness sits close to the fan and the flue path, it is exposed to heat and vibration throughout its service life, and the plug ends are a common point of intermittent contact.
Signs this part needs replacing
- The fan fails to run when the boiler is called for heat, with the appliance locking out shortly afterwards
- Fan speed is erratic or the fan stops and restarts during a demand
- The boiler reports a fan-related fault code on the display
- Visible heat damage, brittleness or chafing on the harness insulation
- Loose, corroded or intermittent contact at the fan or PCB plug ends
Before you order
- Check the boiler GC number and model on the data badge against the compatibility list, as the same appliance name can appear in several variants
- Confirm the number on the existing harness or in the boiler's parts listing matches 173530 or 1179516 before ordering
- Inspect the fan and its mounting gasket at the same time, as a failed fan can damage the harness and vice versa
Mechanical
| Part type | Wiring Harness |
|---|
Compliance
| Manufacturer part number (MPN) | 173530 |
|---|---|
| GC number | H07-773 |
| Barcode / EAN | 5022141735301 |
| Commodity code | 8544 42 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1179516 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ELISE HE15 | 41-399-97 | 41-399-97 | — | — |
| IDEAL ELISE HE24 | 41-399-98 | 41-399-98 | — | — |
| IDEAL EVO HE H12 | 41-397-96 | 41-397-96 | — | — |
| IDEAL EVO HE H16 | 41-397-86 | 41-397-86 | — | — |
| IDEAL EVO HE H19 | 41-397-93 | 41-397-93 | — | — |
| IDEAL EVO HE H22 | 41-397-94 | 41-397-94 | — | — |
| IDEAL ICOS HE12 | 41-397-95 | 41-397-95 | — | — |
| IDEAL ICOS HE15 | 41-397-83 | 41-397-83 | — | — |
| IDEAL ICOS HE18 | 41-397-84 | 41-397-84 | — | — |
| IDEAL ICOS HE24 | 41-397-85 | 41-397-85 | — | — |
Showing 10 of 12 compatible appliances.
