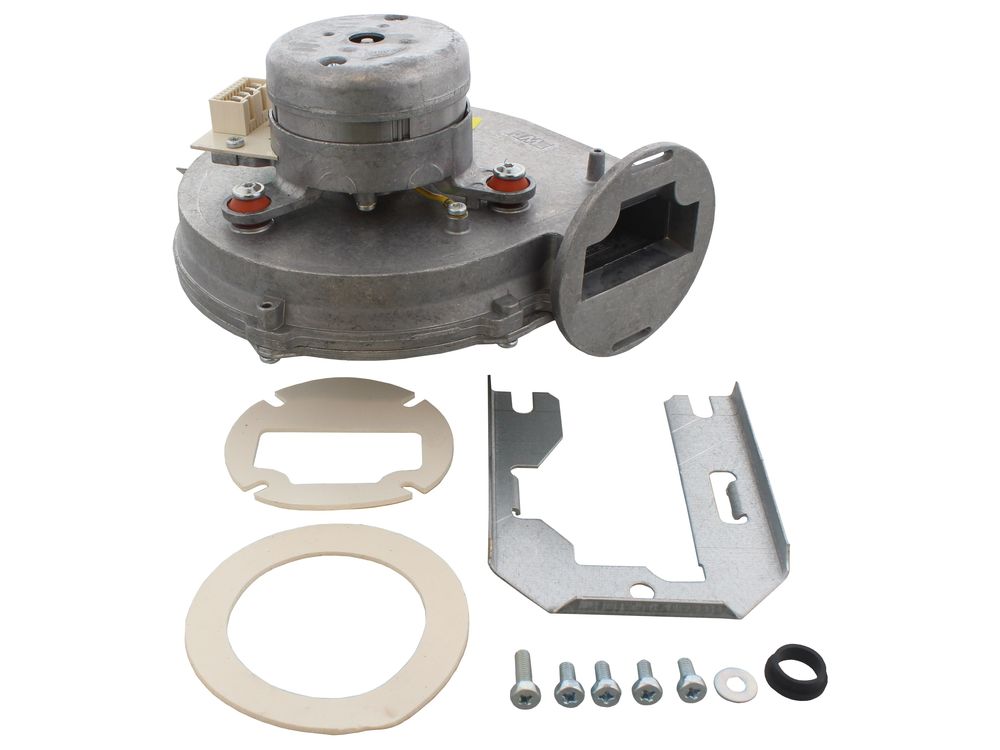

Ideal 173525 Fan Kit
Ideal 173525 fan kit with rubber mounts, a replacement combustion fan assembly for Ideal Isar HE35 boilers.
At a glance
- Part type: Fan kit with rubber mounts
- Also known as IDEAL173525
£242.40
£202.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 173525 is a fan kit supplied with rubber mounting bushes, used as the replacement combustion fan assembly on Ideal Isar HE35 boilers. The fan draws flue gases through the heat exchanger and pushes them out through the flue, and it also feeds air into the combustion chamber for the burner. The rubber mounts isolate the fan body from the casing, cutting down vibration and the noise that travels through the boiler shell.
Signs this part needs replacing
- Boiler locks out or fails to fire, with a fan or air pressure related fault code showing
- Grinding, rumbling or scraping noise from the fan area when the boiler starts
- Fan runs intermittently, slows down, or does not spin at all on a call for heat
- Repeated lockouts that clear after a reset and return shortly afterwards
- Visible damage, cracking or perishing of the rubber mounting bushes, or the fan body sitting loose in the casing
Before you order
- Check the boiler model and serial number against the compatibility list to confirm the Isar HE35 variant
- Confirm the existing fan carries the number 173525 before removing it
- Inspect the fan mounting bushes and sealing gasket on removal, as these are consumable items and may need replacing at the same time
- Isolate the electrical supply and the gas supply before starting work, and follow the manufacturer's instructions for the appliance
Mechanical
| Part type | Fan kit with rubber mounts |
|---|
Compliance
| Manufacturer part number (MPN) | 173525 |
|---|---|
| GC number | H07-771 |
| Barcode / EAN | 5022141735257 |
| Commodity code | 8414 59 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | IDEAL173525, 1179512 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL ESPRIT HE35 | 47-348-48 | 47-348-48 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL ICOS HE30 | 41-399-10 | 41-399-10 | — | — |
| IDEAL ICOS HE36 | 41-399-16 | 41-399-16 | — | — |
| IDEAL IDEAL : EVO HE C22/35 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE35 | — | — | — | |
| IDEAL IDEAL : ISAR HE35 | — | — | — | |
| IDEAL IDEAL : MEXICO HE30 | — | — | — | |
| IDEAL IDEAL : MEXICO HE36 | — | — | — |
Showing 10 of 15 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — ESPRIT HE35 (GC 47-348-48)
manualmanualIDEAL appliance manual — EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — ICOS HE30 (GC 41-399-10), ICOS HE36 (GC 41-399-16)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — MEXICO HE 30 (GC 41-429-99), MEXICO HE 36 (GC 41-415-20)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
