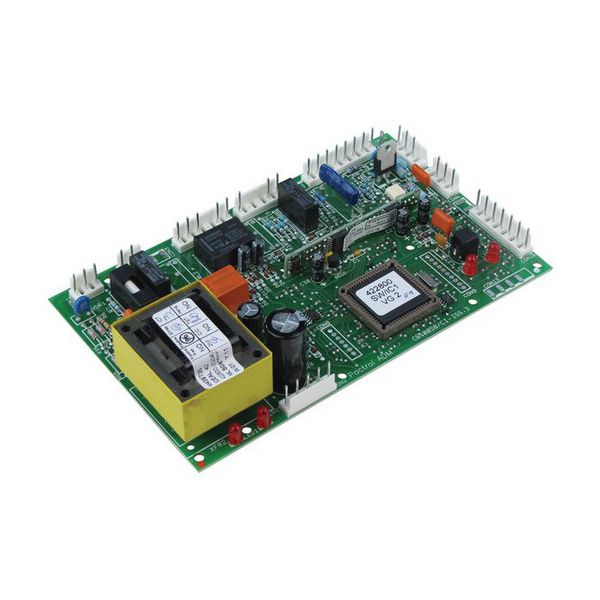

Ideal Printed Circuit Board ADM Modem Kit RD1-RD2 173229
Ideal ADM and modem board kit PCB (173229) for RD1 to RD2 revisions, fitting 78 Ideal British/Scottish Gas boiler models.
At a glance
- Part type: Printed circuit board (PCB)
- Also known as 1179359, N0607-1
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£651.18
£542.65 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal ADM and modem board kit is a printed circuit board (PCB) assembly for Ideal domestic gas boilers. The board monitors and controls every process occurring throughout the system via switches, thermostats and sensors, and enforces safety measures by shutting down boiler functions if internal readings indicate a fault such as high pressure or low water levels. This kit covers the change from the RD1 board revision to RD2.
Signs this part needs replacing
- The boiler locks out or fails to fire, with no response to a call for heating or hot water
- Fault or error codes return repeatedly after resetting the appliance
- The board does not respond to thermostat, sensor or switch inputs
- The boiler shuts down on a safety fault such as high pressure or low water level
- Intermittent running or random shutdowns that cannot be traced to another component
Before you order
- Check the GC number and appliance model against the compatibility list, and confirm whether the boiler is on the RD1 or RD2 board revision
- Confirm the previous part number 171451 against the board being replaced
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed circuit board (PCB) |
|---|
Compliance
| Manufacturer part number (MPN) | 173229 |
|---|---|
| GC number | E58-653 |
| Barcode / EAN | 5022141732294 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 171451, 1179359, N0607-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL BRITISH/SCOTTISH GAS 100 RD1 | 41-387-52 | 41-387-52 | — | — |
| IDEAL BRITISH/SCOTTISH GAS 30 RD1 | 41-349-72 | 41-349-72 | — | — |
| IDEAL BRITISH/SCOTTISH GAS 40 RD1 | 41-349-73 | 41-349-73 | — | — |
| IDEAL BRITISH/SCOTTISH GAS 50 RD1 | 41-349-74 | 41-349-74 | — | — |
| IDEAL BRITISH/SCOTTISH GAS 60 RD1 | 41-349-75 | 41-349-75 | — | — |
| IDEAL BRITISH/SCOTTISH GAS 70 RD1 | 41-349-76 | 41-349-76 | — | — |
| IDEAL BRITISH/SCOTTISH GAS 80 RD1 | 41-349-77 | 41-349-77 | — | — |
| IDEAL BRITISH/SCOTTISH GAS RD 109 | 41-397-56 | 41-397-56 | — | — |
| IDEAL BRITISH/SCOTTISH GAS RD 109 (SILVER) | 41-397-75 | 41-397-75 | — | — |
| IDEAL BRITISH/SCOTTISH GAS RD 112 | 41-397-57 | 41-397-57 | — | — |
Showing 10 of 78 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — BRITISH/SCOTTISH GAS 100 RD1 (GC 41-387-52), BRITISH/SCOTTISH GAS 30 RD1 (GC 41-349-72), BRITISH/SCOTTISH GAS 40 RD1 (GC 41-349-73), BRITISH/SCOTTISH GAS 50 RD1 (GC 41-349-74), BRITISH/SCOTTISH GAS 60 RD1 (GC 41-349-75), BRITISH/SCOTTISH GAS 70 RD1 (GC 41-349-76), BRITISH/SCOTTISH GAS 80 RD1 (GC 41-349-77)
manualmanualIDEAL appliance manual — BRITISH/SCOTTISH GAS RD 109 (GC 41-397-56), BRITISH/SCOTTISH GAS RD 109 (SILVER) (GC 41-397-75), BRITISH/SCOTTISH GAS RD 112 (GC 41-397-57), BRITISH/SCOTTISH GAS RD 112 (SILVER) (GC 41-397-76), BRITISH/SCOTTISH GAS RD 115 (GC 41-397-58), BRITISH/SCOTTISH GAS RD 115 (SILVER) (GC 41-397-77), BRITISH/SCOTTISH GAS RD 118 (GC 41-397-59), BRITISH/SCOTTISH GAS RD 118 (SILVER) (GC 41-397-78), BRITISH/SCOTTISH GAS RD 121 (GC 41-397-60), BRITISH/SCOTTISH GAS RD 121 (SILVER) (GC 41-397-79), BRITISH/SCOTTISH GAS RD 124 (GC 41-397-61), BRITISH/SCOTTISH GAS RD 124 (SILVER) (GC 41-397-80), BRITISH/SCOTTISH GAS RD 130 (GC 41-397-62), BRITISH/SCOTTISH GAS RD 130 (SILVER) (GC 41-397-81)
manualmanualIDEAL appliance manual — BRITISH/SCOTTISH GAS RD1 3100 (GC 41-392-25), BRITISH/SCOTTISH GAS RD1 330 (GC 41-392-13), BRITISH/SCOTTISH GAS RD1 340 (GC 41-392-16), BRITISH/SCOTTISH GAS RD1 350 (GC 41-392-17), BRITISH/SCOTTISH GAS RD1 360 (GC 41-392-20), BRITISH/SCOTTISH GAS RD1 370 (GC 41-392-21), BRITISH/SCOTTISH GAS RD1 380 (GC 41-392-24)
manualmanualIDEAL appliance manual — BRITISH/SCOTTISH GAS RD2 100 (GC 41-387-58), BRITISH/SCOTTISH GAS RD2 125 (GC 41-387-59)
manualmanualIDEAL appliance manual — BRITISH/SCOTTISH GAS RD2 40 (GC 41-387-53), BRITISH/SCOTTISH GAS RD2 50 (GC 41-387-54), BRITISH/SCOTTISH GAS RD2 60 (GC 41-387-55), BRITISH/SCOTTISH GAS RD2 70 (GC 41-387-56), BRITISH/SCOTTISH GAS RD2 80 (GC 41-387-57)
manualmanualIDEAL appliance manual — BRITISH/SCOTTISH GAS RD2 4100 (GC 41-392-72), BRITISH/SCOTTISH GAS RD2 4125 (GC 41-392-73)
manualmanualIDEAL appliance manual — BRITISH/SCOTTISH GAS RD2 440 (GC 41-392-33), BRITISH/SCOTTISH GAS RD2 450 (GC 41-392-34), BRITISH/SCOTTISH GAS RD2 460 (GC 41-392-35), BRITISH/SCOTTISH GAS RD2 470 (GC 41-392-36), BRITISH/SCOTTISH GAS RD2 480 (GC 41-392-37)
manualNo technical questions yet for this part.
