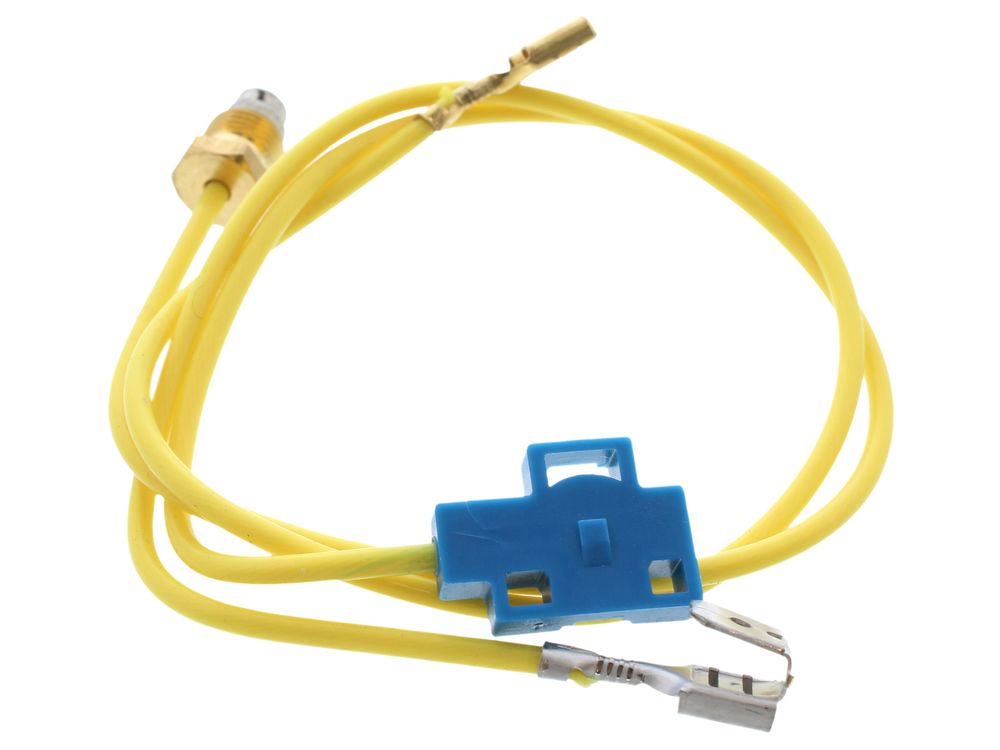

Ideal Interrupter Assembly Eco Leads 173228
Ideal Interrupter Assembly (Eco Leads) 173228, a wiring and leads component for Ideal Commercial Concord CX Series 3 appliances.
At a glance
- Part type: Interrupter Assembly
£70.06
£58.38 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal Interrupter Assembly, listed under part number 173228, is a wiring and leads component used within Ideal Commercial Concord CX Series 3 appliances. It forms part of the electrical control chain inside the unit, carrying signals between the interrupter circuit and the rest of the boiler's control sequence. The assembly is supplied under the Ideal Spares brand and is classified as a cables, leads and wiring harness part.
Signs this part needs replacing
- The appliance fails to fire or drops out during the ignition sequence
- Intermittent lockouts that clear on reset but return shortly afterwards
- Visible damage to the leads, such as chafed insulation, scorching or a loose terminal
- Fault codes or error indications linked to the interrupter or flame supervision circuit
- Continuity faults traced through the wiring harness during a multimeter check
Before you order
- Confirm the appliance model and GC number against the compatibility list before ordering, as the Concord CX range covers several output sizes and gas types
- Check the existing part against the previous numbers 059810, 059811, 132009 and 135944 to confirm the correct replacement
- Inspect any seals, gaskets or fixings disturbed during removal and replace them if they are no longer serviceable
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 173228 |
|---|---|
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 059810, 059811, 132009, 135944 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL MEXICO SUPER 2 CF100 | 41-415-98 | 41-415-98 | — | — |
| IDEAL MEXICO SUPER 2 CF100P | — | — | — | |
| IDEAL MEXICO SUPER 2 CF125 | 41-415-99 | 41-415-99 | — | — |
| IDEAL MEXICO SUPER 2 CF125P | — | — | — | |
| IDEAL MEXICO SUPER 2 CF140 | 41-421-51 | 41-421-51 | — | — |
| IDEAL MEXICO SUPER 2 CF140P | — | — | — | |
| IDEAL MEXICO SUPER 2 CF40 (1993) | 41-415-93 | 41-415-93 | — | — |
| IDEAL MEXICO SUPER 2 CF40 (1997) | 41-429-45 | 41-429-45 | — | — |
| IDEAL MEXICO SUPER 2 CF50 (1993) | 41-415-94 | 41-415-94 | — | — |
| IDEAL MEXICO SUPER 2 CF50 (1997) | 41-429-46 | 41-429-46 | — | — |
Showing 10 of 70 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — CONCORD CX 100 SERIES 3 (GC 41-387-66), CONCORD CX 100P SERIES 3 - PROPANE, CONCORD CX 40 SERIES 3 (GC 41-387-60), CONCORD CX 40P SERIES 3 - PROPANE, CONCORD CX 50 SERIES 3 (GC 41-387-61), CONCORD CX 50P SERIES 3 - PROPANE, CONCORD CX 60 SERIES 3 (GC 41-387-62), CONCORD CX 60P SERIES 3 - PROPANE, CONCORD CX 70 SERIES 3 (GC 41-387-63), CONCORD CX 70P SERIES 3 - PROPANE, CONCORD CX 80 SERIES 3 (GC 41-387-64), CONCORD CX 80P SERIES 3 - PROPANE, CONCORD CX 90 SERIES 3 (GC 41-387-65), CONCORD CX 90P SERIES 3 - PROPANE
manualmanualIDEAL appliance manual — MEXICO SUPER 2 CF100 (GC 41-415-98), MEXICO SUPER 2 CF125 (GC 41-415-99), MEXICO SUPER 2 CF140 (GC 41-421-51), MEXICO SUPER 2 CF70 (GC 41-415-96), MEXICO SUPER 2 CF80 (GC 41-415-97)
manualmanualIDEAL appliance manual — MEXICO SUPER 2 RS100 (GC 41-421-06), MEXICO SUPER 2 RS125 (GC 41-421-07), MEXICO SUPER 2 RS70 (GC 41-421-04), MEXICO SUPER 2 RS80 (GC 41-421-05)
manualmanualIDEAL appliance manual — MEXICO SUPER 2 RS40 (1993) (GC 41-421-01), MEXICO SUPER 2 RS40 (1997) (GC 41-429-48), MEXICO SUPER 2 RS50 (1993) (GC 41-421-02), MEXICO SUPER 2 RS50 (1997) (GC 41-429-49), MEXICO SUPER 2 RS60 (1993) (GC 41-421-03), MEXICO SUPER 2 RS60 (1997) (GC 41-429-50)
manualNo technical questions yet for this part.
