Ideal

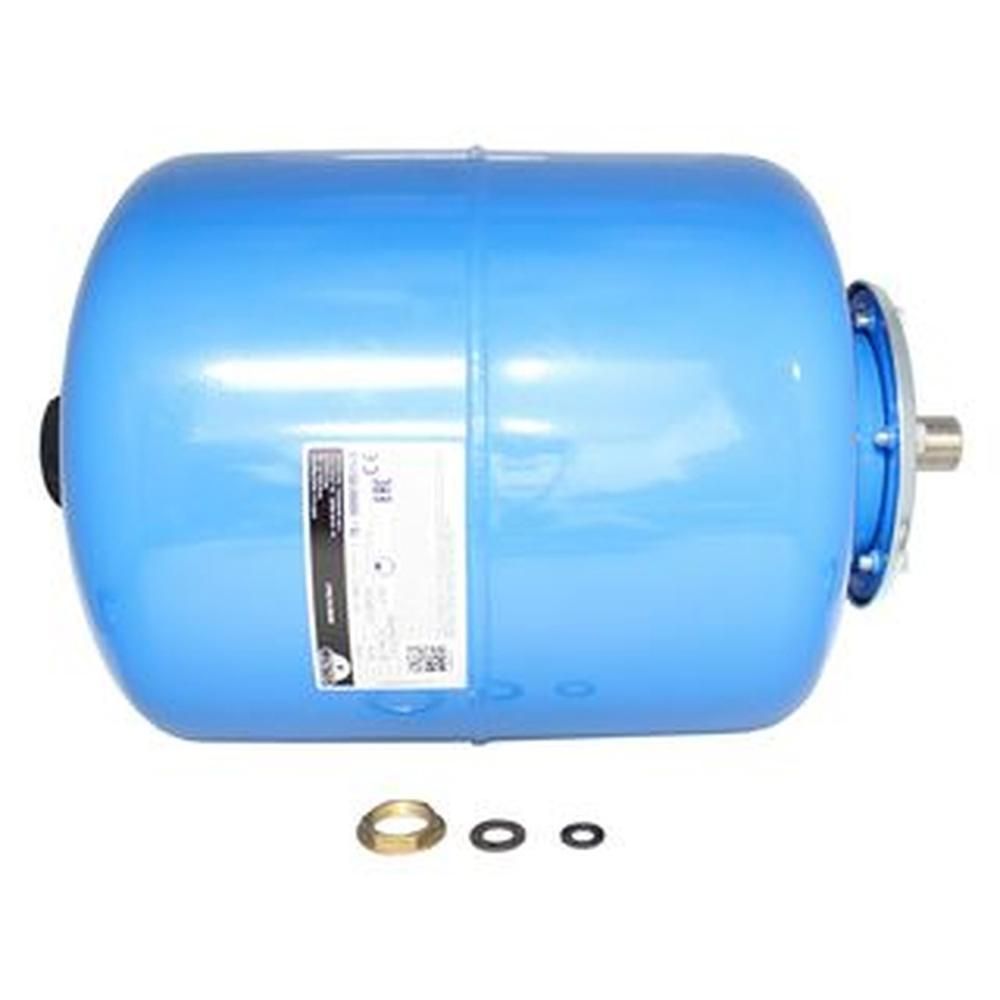

Ideal Expansion Vessel 19L 173193
Ideal 173193 19-litre expansion vessel for Istor HE260 and HE325 appliances, absorbing system water expansion to keep pressure stable.
At a glance
- Part type: Expansion vessel
- Also known as 1179333
£238.42
£198.68 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 173193 is a 19-litre expansion vessel supplied for Ideal Istor HE260 and HE325 appliances. It provides the air cushion that absorbs the increase in water volume as the sealed system heats up, keeping system pressure within the range the appliance is designed to work at. A sound vessel protects the pressure relief valve, the pump and the heat exchanger from repeated over-pressure cycling.
Signs this part needs replacing
- System pressure climbs sharply as the appliance heats and drops again once it cools.
- Water discharges from the pressure relief valve during normal running.
- Water rather than air escapes when the air valve on the vessel is depressed.
- The appliance repeatedly locks out or reports low pressure faults.
- Corrosion, staining or damp patches around the vessel connection or shell.
Before you order
- Confirm the GC number on the appliance data badge matches 41-394-13 or 41-394-14 before ordering.
- Check the capacity and connection of the vessel being removed against the 19-litre specification.
- Cross-reference the alternative number 1179333 when checking against older documentation.
- Have the appliance model and serial number to hand when working through the compatibility list.
Mechanical
| Part type | Expansion Vessels, Tanks & Cylinders |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 173193 |
|---|---|
| Barcode / EAN | 5022141731938 |
| Commodity code | 7310 29 90 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1179333 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : ISTOR HE260 | — | — | — | |
| IDEAL IDEAL : ISTOR HE325 | — | — | — | |
| IDEAL ISTOR HE260 | 41-394-13 | 41-394-13 | — | — |
| IDEAL ISTOR HE325 | 41-394-14 | 41-394-14 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
