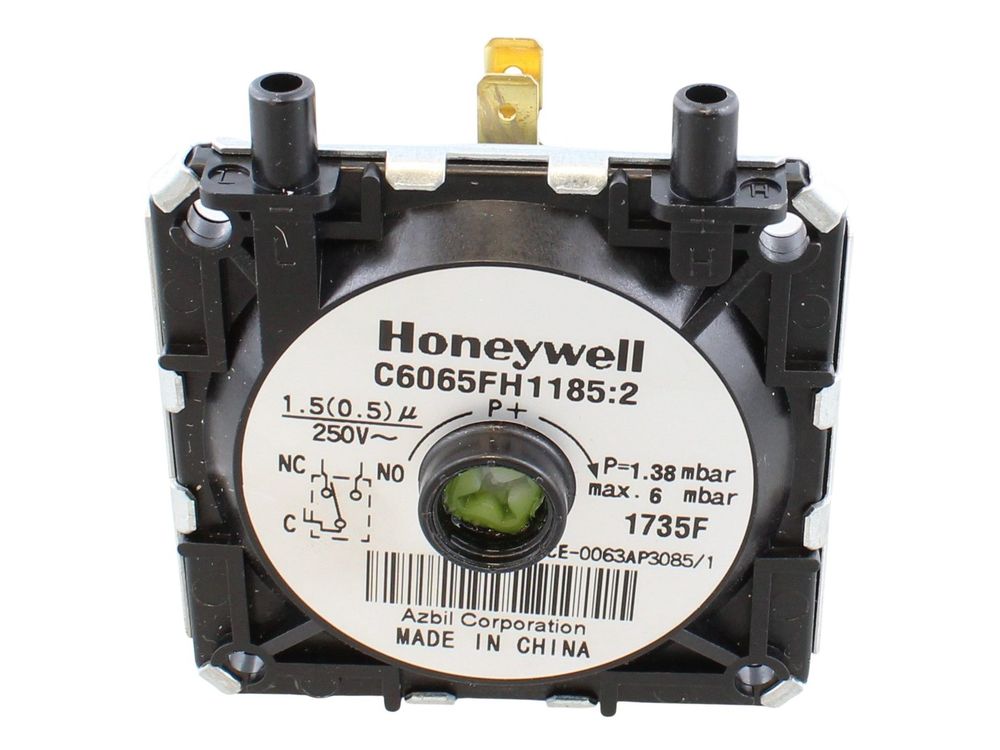

Ideal Air Pressure Switch 1 38Mbr 173136
Ideal 173136 air pressure switch rated 1 38Mbr, fitted to Europa 232, Mini C32 and Mini HE C28 boilers to prove fan and air flow.
At a glance
- Part type: Air pressure switch
- Also known as 1179288, N1733
£140.53
£117.11 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 173136 is an air pressure switch rated at 1 38Mbr, used on a number of Ideal domestic and commercial boiler ranges. It senses the pressure generated by the combustion fan and signals the control board that air flow has been established, allowing the ignition sequence to proceed. A failed switch typically stops the boiler from firing or causes it to lock out shortly after the fan starts.
Signs this part needs replacing
- The boiler locks out or fails to fire after the fan has started running
- The fan runs but the ignition sequence does not complete
- Intermittent lockouts that clear on reset and then return
- The boiler fires briefly and then shuts down on a fan or air pressure fault
- Repeated lockout codes relating to fan or air proving on the appliance display
Before you order
- Check the GC number on the appliance data badge against the list above before ordering
- Confirm the exact model, as more than one switch was used across these Ideal ranges
- Compare the alternative numbers 1179288 and N1733 against any markings on the original part
Mechanical
| Part type | Air pressure switch |
|---|
Compliance
| Manufacturer part number (MPN) | 173136 |
|---|---|
| GC number | H08-605 |
| Barcode / EAN | 5022141731365 |
| Commodity code | 8536 50 80 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1179288, N1733 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL EUROPA 232 | 47-348-28 | 47-348-28 | — | — |
| IDEAL IDEAL : EUROPA 232 | — | — | — | |
| IDEAL IDEAL : MINI C32 | — | — | — | |
| IDEAL IDEAL : MINI HE C28 | — | — | — | |
| IDEAL MINI C32 | 47-348-25 | 47-348-25 | — | — |
| IDEAL MINI HE C28 | 47-348-39 | 47-348-39 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
