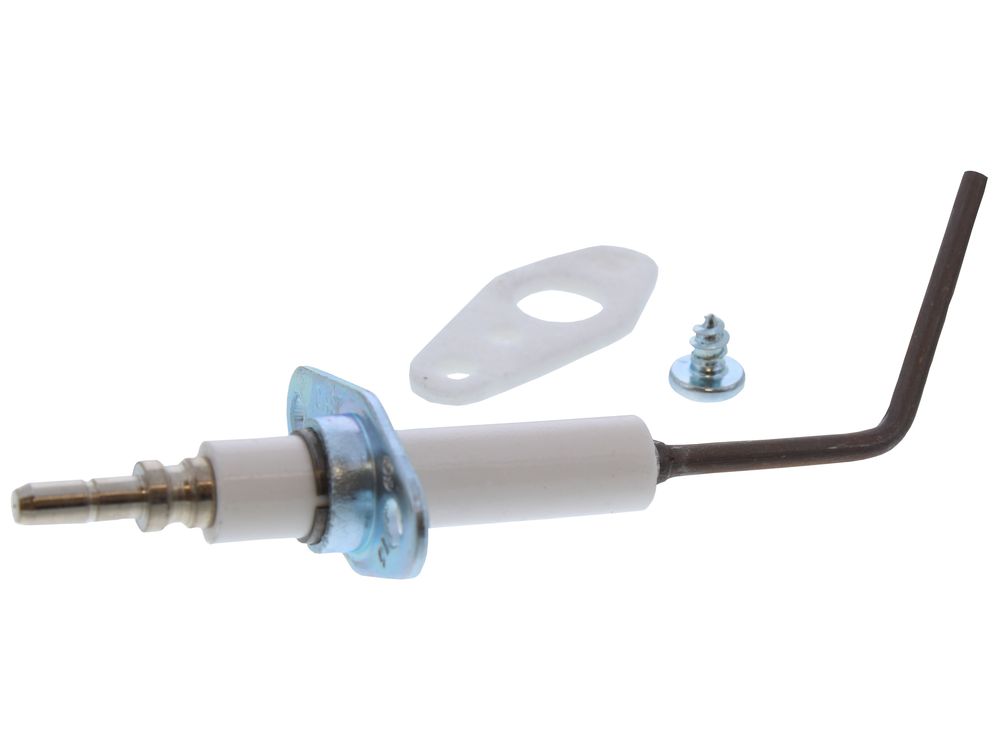

Ideal Detection Electrode 173024
Ideal 173024 detection electrode for Ideal Commercial Imax Plus F80, F120, F160 and F200 boilers, proving flame presence to the control board.
At a glance
- Part type: Detection electrode
- Also known as 1179240, N7627
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£67.24
£56.03 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 173024 is a detection electrode used on Ideal Commercial boiler plant. It sits in the combustion path and signals the control board when a flame is established, allowing the burner to run and the gas valve to stay open. It is listed against the Imax Plus range and other Ideal Commercial appliances.
Signs this part needs replacing
- The boiler fires, then locks out shortly afterwards because no flame signal is returned.
- Repeated ignition attempts with the burner lighting briefly and then shutting down.
- Intermittent shutdowns during a demand for heat or hot water.
- A fault code or lockout pattern pointing to flame detection rather than ignition.
- Visible damage to the electrode tip, ceramic insulator or lead connection.
Before you order
- Confirm the appliance model and serial number against the compatibility list, as the electrode is used across several Imax Plus outputs.
- Check the number on the existing electrode; earlier builds may carry 95250625.
- Inspect the electrode lead, plug and any sealing washer at the same time, as these are disturbed during replacement.
- Work on the combustion circuit should be carried out by a competent engineer.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Detection electrode |
|---|
Compliance
| Manufacturer part number (MPN) | 173024 |
|---|---|
| Barcode / EAN | 5022141730245 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 95250625, 1179240, N7627 |
| Previous numbers | 95250625 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IMAX PLUS F120 | — | — | — | |
| IDEAL COMMERCIAL IMAX PLUS F160 | — | — | — | |
| IDEAL COMMERCIAL IMAX PLUS F200 | — | — | — | |
| IDEAL COMMERCIAL IMAX PLUS F80 | — | — | — | |
| IDEAL COMMERCIAL IMAX PLUS II F140 | — | — | — | |
| IDEAL COMMERCIAL IMAX PLUS II F180 | — | — | — | |
| IDEAL COMMERCIAL IMAX PLUS II F220 | — | — | — | |
| IDEAL COMMERCIAL IMAX PLUS II F90 | — | — | — | |
| IDEAL COMMERCIAL IMAX PLUS III F145 | — | — | — |
Showing 10 of 15 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — IMAX PLUS F120, IMAX PLUS F160, IMAX PLUS F200, IMAX PLUS F80
manualmanualIDEAL COMMERCIAL appliance manual — IMAX PLUS II F140, IMAX PLUS II F180, IMAX PLUS II F220, IMAX PLUS II F90
manualmanualIDEAL COMMERCIAL appliance manual — IMAX PLUS III F145, IMAX PLUS III F190, IMAX PLUS III F235, IMAX PLUS III F285, IMAX PLUS III F330, IMAX PLUS III F95
manualNo technical questions yet for this part.
