Ideal

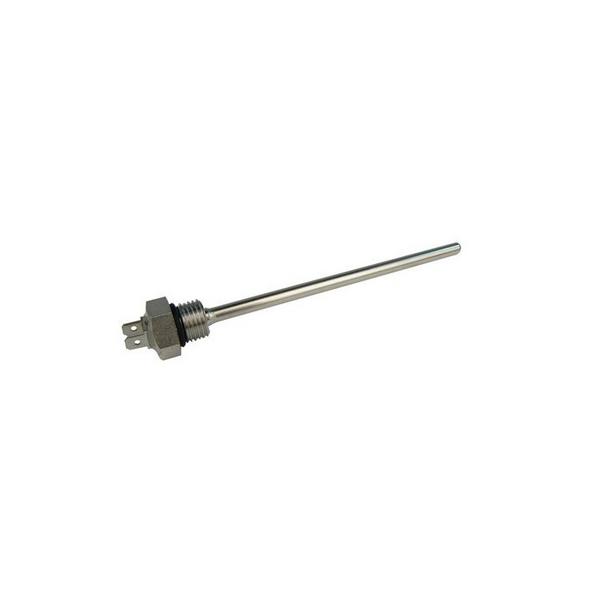

Ideal Thermistor 172671
Ideal thermistor 172671 for Ideal Commercial Imax W45, W60 and W80 boilers, sensing temperature so the PCB can control heat demand.
At a glance
- Part type: Thermistor (spares - sensors)
- Also known as 1178997
£87.04
£72.53 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal thermistor 172671 is a temperature sensor used on Ideal Commercial Imax boilers. Its resistance falls as temperature rises, so the current passing through it changes in inverse proportion to the heat it is exposed to. The boiler's printed circuit board feeds a current to the thermistor and reads the result, using that signal to judge whether more or less heat is needed.
Signs this part needs replacing
- Boiler runs erratically, with heat output that does not match demand
- Repeated lockouts or temperature-related fault codes on the display
- Domestic hot water or heating temperature drifting from the set point
- Overheating or short cycling as the PCB receives a false temperature reading
- Resistance readings from the sensor that fall outside the expected range for the measured temperature
Before you order
- Confirm the model and GC number of the appliance against the compatibility list, as the Imax range covers both natural gas and propane variants
- Check the existing sensor's part number and compare it with 172671 and alternative number 1178997
- Inspect the sensor pocket and any sealing washer or O-ring at the same time, as these are disturbed when the sensor is removed
Mechanical
| Part type | Spares - Sensors |
|---|
Compliance
| Manufacturer part number (MPN) | 172671 |
|---|---|
| Barcode / EAN | 5022141726712 |
| Commodity code | 8533 40 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1178997 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IMAX W45 | 41-397-97 | 41-397-97 | — | — |
| IDEAL COMMERCIAL IMAX W45P - PROPANE | 41-399-01 | 41-399-01 | — | — |
| IDEAL COMMERCIAL IMAX W60 | 41-397-98 | 41-397-98 | — | — |
| IDEAL COMMERCIAL IMAX W60P - PROPANE | 41-399-02 | 41-399-02 | — | — |
| IDEAL COMMERCIAL IMAX W80 | 41-397-99 | 41-397-99 | — | — |
| IDEAL COMMERCIAL IMAX W80P - PROPANE | 41-399-03 | 41-399-03 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
